Overview Of System Components, Adaptive Brake (ABR) - GF42.47-P-9997GR
MODEL 166 up to model year 2016
Shown on model 166.0

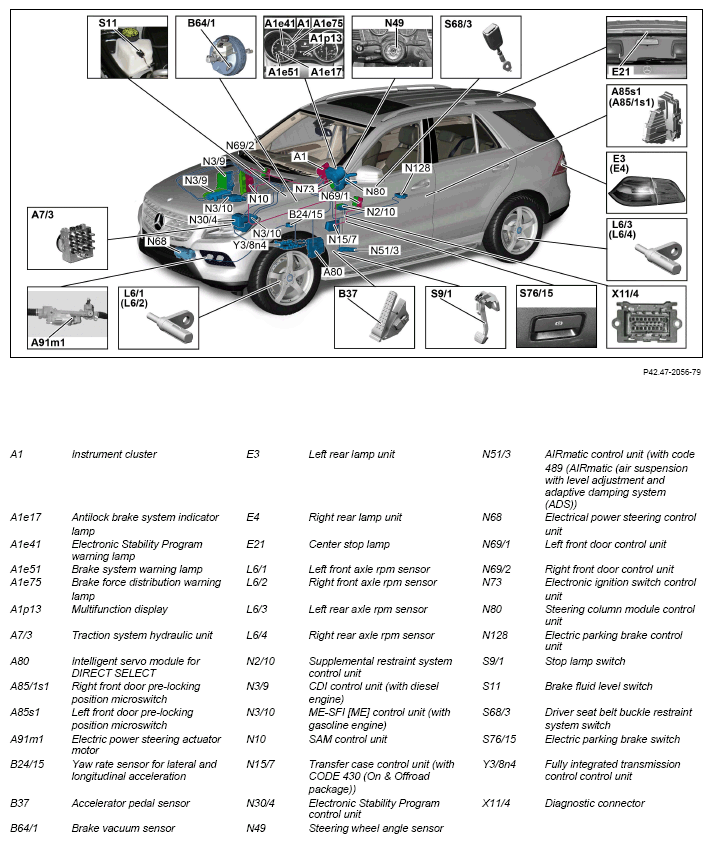

Depending on the engine involved, the CDI control unit has the following installation location:
- Engine 642, in the right front wheel arch behind the wheel
- Engine 651, on the air filter housing
Depending on the engine involved, the ME-SFI [ME] control unit has the following installation location:
- Engine 276, on left of engine
- Engine 278 and 157, on center of engine
Shown on model 166.0
Shown on model 166.0
| Component description for instrument cluster | A1, A1e17, A1e41, A1e51, A1e75, A1p13 | GF54.30-P-6000GR | |
| Component description for intelligent servo module for DIRECT SELECT | MODEL 166 with TRANSMISSION 722.9 up to model year 2016 A80 | GF27.19-P-4020AHA | |
| Turn rate, lateral and longitudinal acceleration sensor, component description | B24/15 | GF42.45-P-4082GR | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GR | |
| Component description for CDI control uni | MODEL 166 with ENGINE 642.8 p to model year 2016 N3/9 | GF07.16-P-6000OGR | |
| MODEL 166 with ENGINE 651.9 up to 2/28/13 up to model year 2016 | GF07.16-P-6000OLG | ||
| MODEL 166 with ENGINE 651.9 as of 3/1/13 up to model year 2016 | GF07.16-P-6000OLL | ||
| Component description for ME-SFI (ME) control unit | MODEL 166 with ENGINE 276.8 up to model year 2016 N3/10 | GF07.61-P-6000MMU | |
| MODEL 166 with ENGINE 276.9 up to model year 2016 | GF07.61-P-6000MMG | ||
| MODEL 166 with ENGINE 157.9, 278.9 up to model year 2016 | GF07.61-P-6000MMR | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GR | |
| Component description of transfer case control unit | MODEL 166 with TRANSMISSION 722.9 | GF28.19-P-3200VGC | |
| up to model year 2016 with CODE 430 (On & off-road package) with CODE 489 (Airmatic (air suspension with level adjustment and adaptive damping system ADS)) N15/7 |
|||
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GR | |
| AIRmatic control unit, component description | MODEL 166 up to model year 2016 with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) N51/3 |
GF32.22-P-5109GR | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010GR | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GR | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GR | |

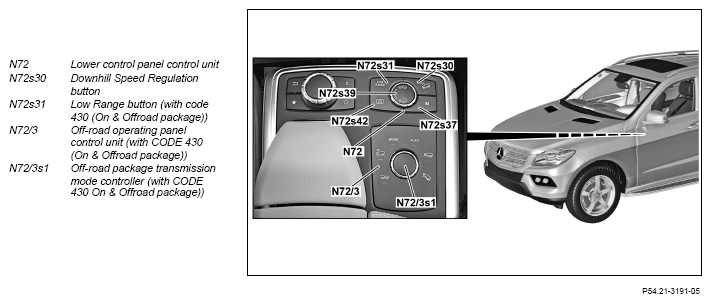

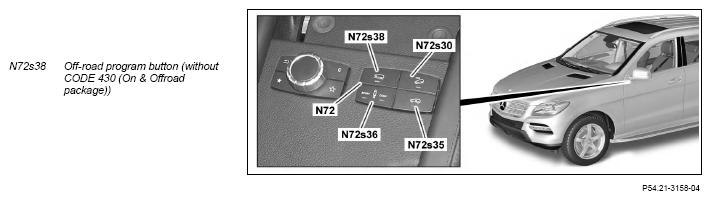

| Lower control panel control unit, component description | N72, N72s30, N72s31, N72s38 | GF54.21-P-6060GR | |

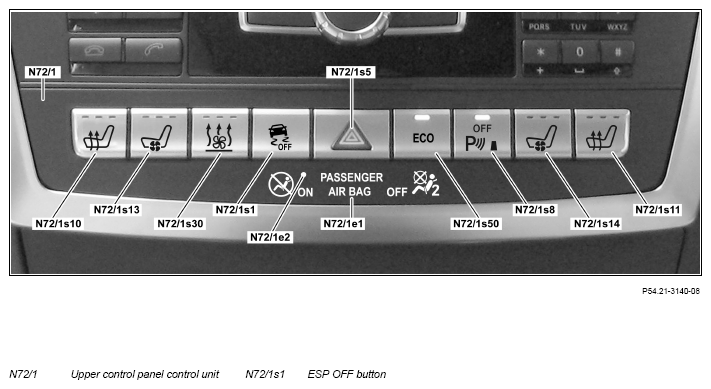

| Upper control panel control unit, component description | N721, N721s1 | GF54.21-P-6040GR | |
| Offroad operating panel, component description | MODEL 166 with TRANSMISSION 722.9 up to model year 2016 with CODE 430 (On & off-road package) N723, N72/3s1 | GF54.21-P-3520VGC | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GR | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GR | |
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005GR | |
| Component description for fully integrated transmission control unit | MODEL 166 with TRANSMISSION 722.9 up to model year 2016 Y38n4 | GF27.60-P-5165AHA | |
| Table of contents for function description, adaptive brake (ABR) | GF42.47-P-0999GR |
