Overview Of System Components For Regenerative Braking System - GF42.22-P-9999GRH
MODEL 166.063 as of model year 2016

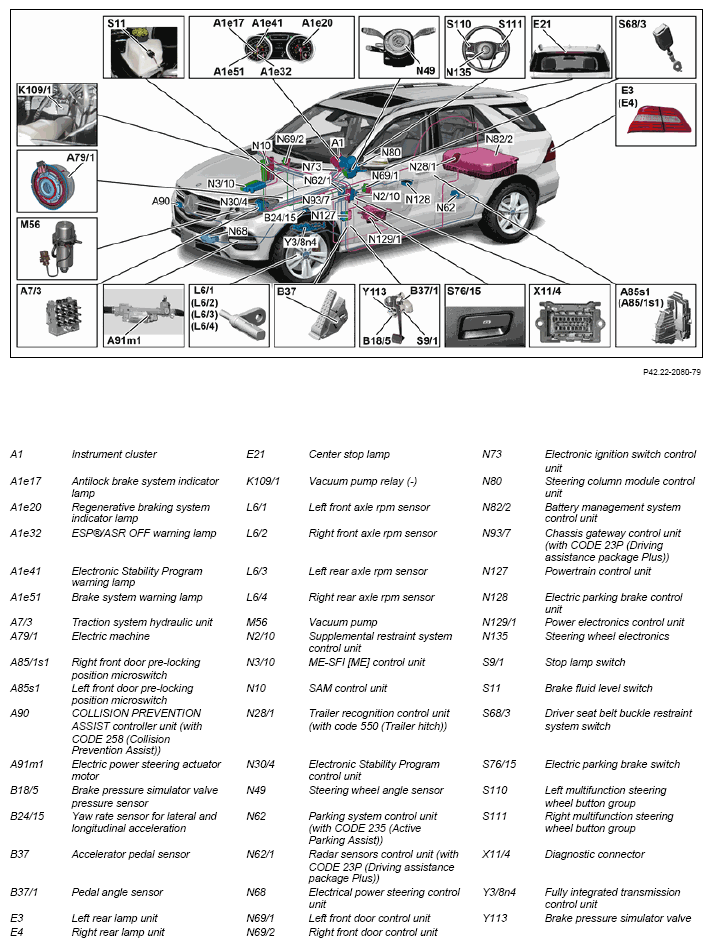

Overview of system components

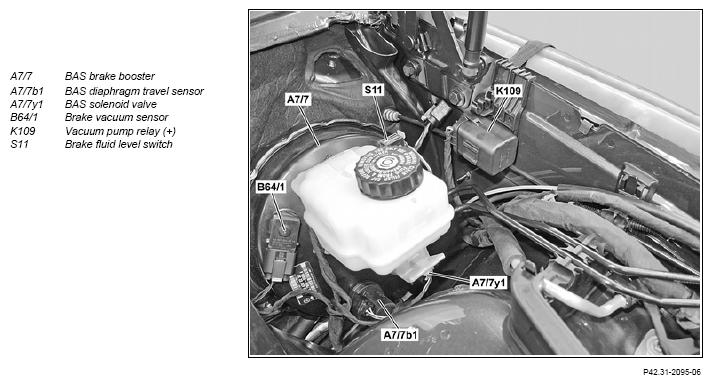

View of the engine compartment at the rear left

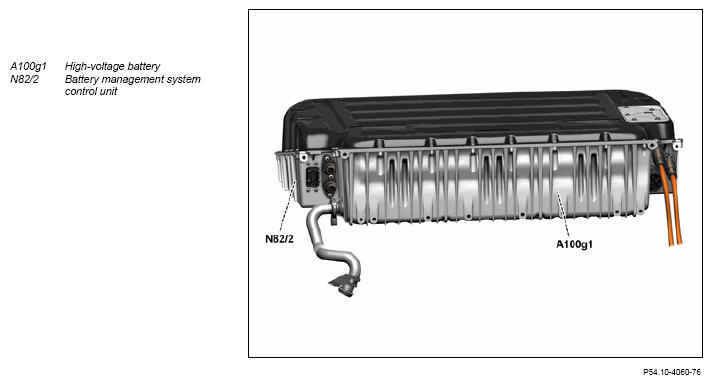

View of high-voltage battery (A100g1)

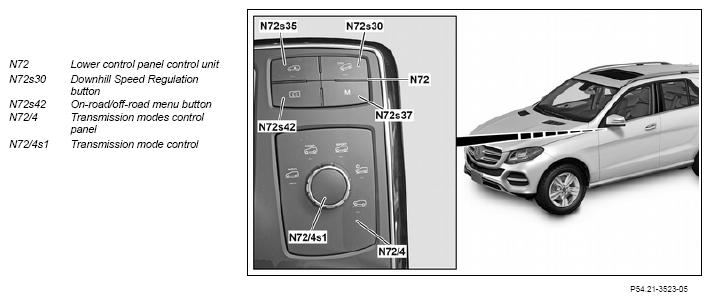

View of control panels

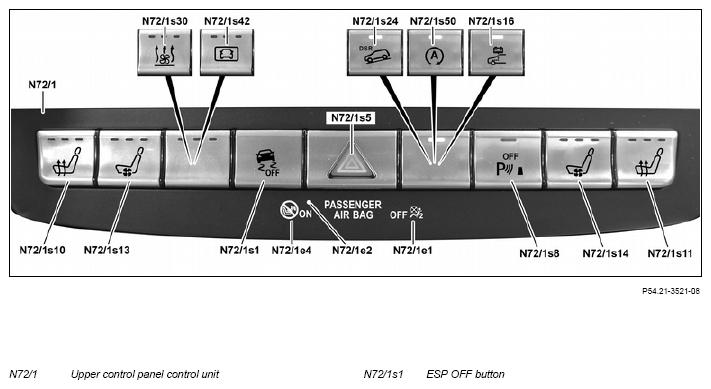

View of control panel
| Component description for instrument cluster | A1, A1e17, A1e20, A1e32, A1e41, A1e51 | GF54.30-P-6000GN | |
| COLLISION PREVENTION ASSIST controller unit, component description | Model 166.063 as of model year 2016 with code 258 (COLLISION PREVENTION ASSIST) A90 |
GF30.30-P-3214GN | |
| Turn rate, lateral and longitudinal acceleration sensor, component description | B24/15 | GF42.45-P-4082GN | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GN | |
| Component description for ME-SFI (ME) control unit | Model 166.063 with engine 276.8 as of model year 2016 N3/10 |
GF07.61-P-6000MMM | |
| SAM control unit, component description | N10 | GF54.21-P-4157GN | |
| Component description for trailer recognition control unit | Model 166.063 as of model year 2016 with code 550 (Trailer coupling) N28/1 |
GF31.19-P-4050GN | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GRH | |
| Parking system control unit, component description | Model 166.063 as of model year 2016 with code 235 (Active Parking Assist with PARKTRONIC) N62 |
GF54.65-P-5004GN | |
| Component description for radar sensors control unit | Model 166.063 as of model year 2016 with code 23P (Driving Assistance package) N62/1 |
GF30.30-P-3301GN | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010GN | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GN | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GN | |
| Lower control panel control unit, component description | N72, N72s30, N72s42, N72/4, N72/4s1 | GF54.21-P-6060GN | |
| Upper control panel control unit, component description | N721, N72/1s1 | GF54.21-P-6040GN | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GN | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GN | |
| Component description for battery management system control unit | N82/2 | GF54.10-P-3012GRH | |
| Component description for chassis gateway control unit | model 166.063 as of model year 2016 with code 23P (Driving Assistance package) N93/7 |
GF54.21-P-1010GN | |
| Drivetrain control unit, component description | N127 | GF54.21-P-2141GN | |
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005GN | |
| Component description for power electronics control unit | N129/1 | GF08.20-P-1001GRH | |
| Component description for fully integrated transmission control unit | Model 166.063 with transmission 724.204 as of model year 2016 Y3/8n4 |
GF27.60-P-5165GRH | |
| Table of contents for function description of regenerative brake system | GF42.22-P-0999GRH |
