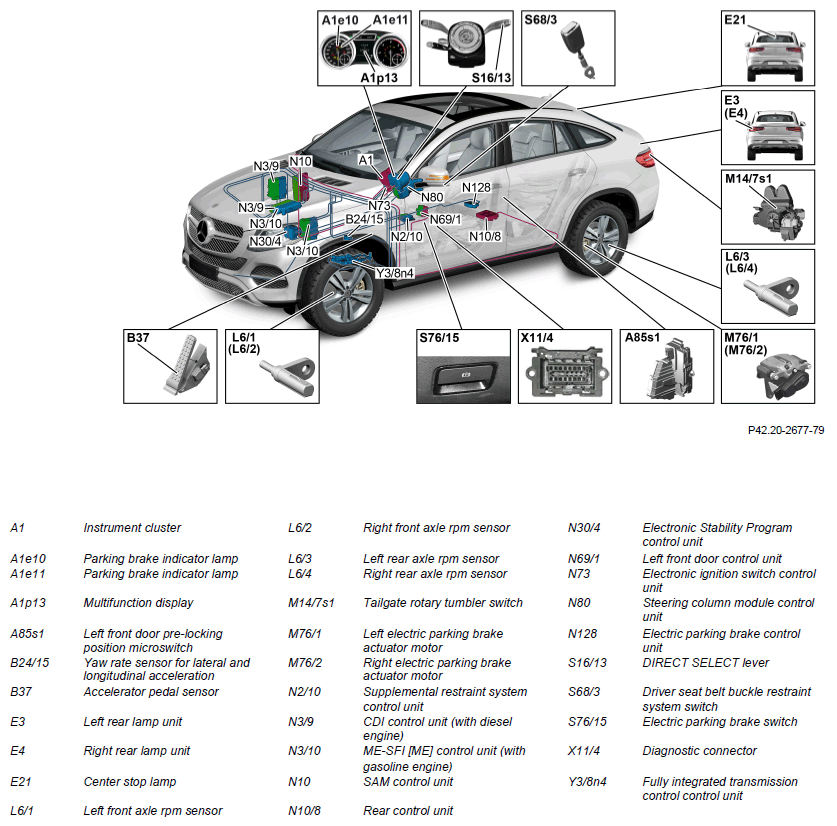

Overview Of System Components For Electric Parking Brake - GF42.20-P-9998GN

MODEL 166 as of model year 2016

MODEL 292

Shown on model 292

	Component description for instrument cluster	A1, A1e10, A1e11, A1p13	GF54.30-P-6000GN
	Turn rate, lateral and longitudinal acceleration sensor, component description	B24/15	GF42.45-P-4082GN
	Supplemental restraint system control unit, component description	N2/10	GF91.60-P-4080GN
	Component description for CDI control unit	MODEL 166 with ENGINE 651.9 as of 6/1/15 as of model year 2016 N3/9	GF07.16-P-6000OLF
		MODEL 166 with ENGINE 642.8 as of model year 2016 MODEL 292 with ENGINE 642	GF07.16-P-6000OGF
	Component description for ME-SFI (ME) control unit	MODEL 166.063 with ENGINE 276.8 as of model year 2016 N3/10	GF07.61-P-6000MMM
		MODEL 166 (except 166.063) with ENGINE 276.8 as of model year 2016 MODEL 292 with ENGINE 276.8	GF07.61-P-6000MMX
		MODEL 166 with ENGINE 276.9 as of model year 2016	GF07.61-P-6000MNG
		MODEL 166 with ENGINE 157.9, 278.9 as of model year 2016 MODEL 292 with ENGINE 157.9, 278.9	GF07.61-P-6000MMY
	SAM control unit, component description	N10	GF54.21-P-4157GN
	Rear control unit, component description	N10/8	GF54.21-P-4134GN
	Component description for Electronic Stability Program control unit	MODEL 166 (except 166.063) as of model year 2016 MODEL 292 N30/4	GF42.45-P-5119GN
		MODEL 166.063 as of model year 2016	GF42.45-P-5119GRH
	Component description for left front door control unit	N69/1	GF72.29-P-6001GN
	Component description for the electronic ignition lock control unit	N73	GF80.57-P-6001GN
	Component description for steering column tube module control unit	N80	GF54.21-P-6051GN
	Electric parking brake control unit, component description	N128	GF42.20-P-5005GN
	Component description for fully integrated transmission control unit	MODEL 292 with TRANSMISSION 725.0 Y38n4	GF27.60-P-5165ANJ
		MODEL 166 with TRANSMISSION 725.0 as of model year 2016	GF27.60-P-5165ANF
	Table of contents for function description, electric parking brake		GF42.20-P-0999GN
