Remove/Install Cover Below Instrument Panel (Right) - AR68.10-P-1520GQ
MODEL 166, 292
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||

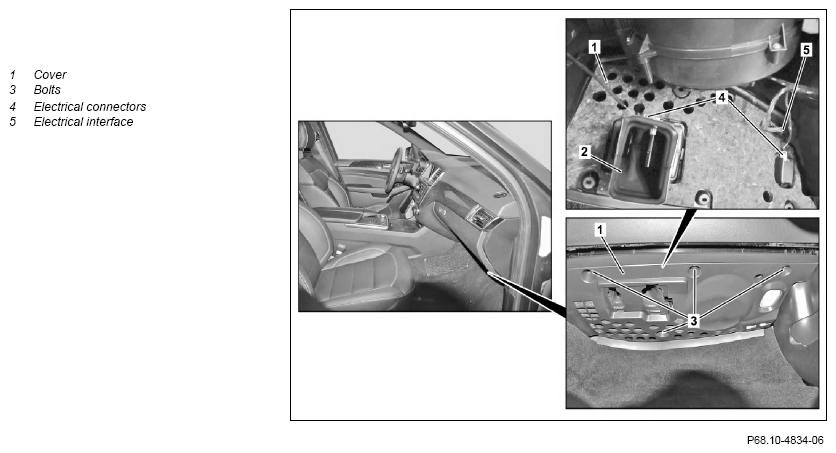

| 2 | Remove bolts (3) | ||
| 3 | Lower cover (1) | ||
| 4 | Disconnect electrical connectors (4) | ||
| 5 | Remove electrical interface (5) | ||
| 6 | Remove cover (1) | ||
| 7 | Install in the reverse order |
