Remove Wheel Well - AR62.20-P-1200-21GQ

MODEL 166, 292

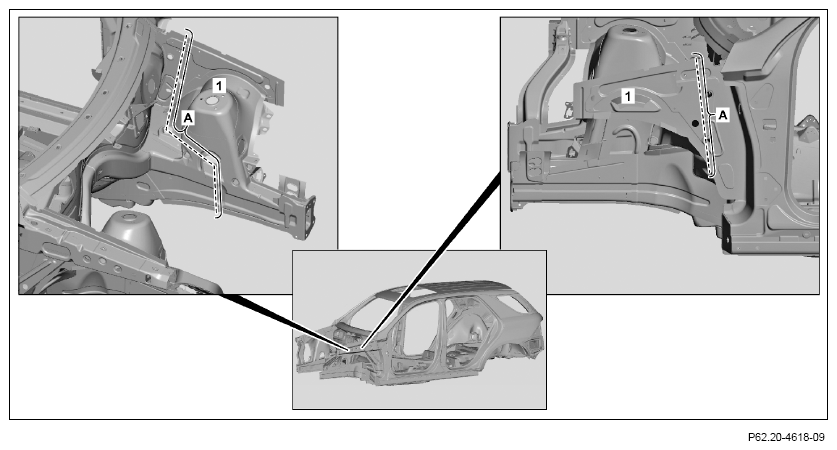

Shown on model 166.0

Coarsely cut front wheel well (1) at separation point (area A).
Remove section from front wheel well (1).
Shown on model 166.0

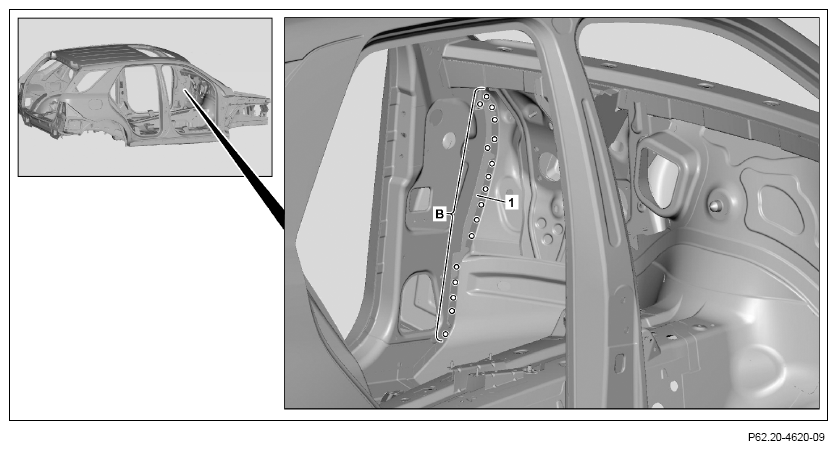

Expose spot welds on front wheel (1) and drill with Ø 6.7 mm bit (area B).

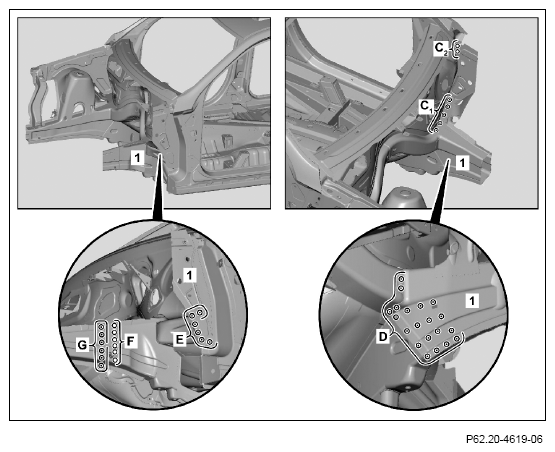

Expose spot welds on front wheel well (1) and drill with Ø 6.7 mm bit (areas C₂ and F).
Expose spot welds on front wheel well (1) and cut out (areas C1, D, E and G).
Remove damaged front wheel well (1).

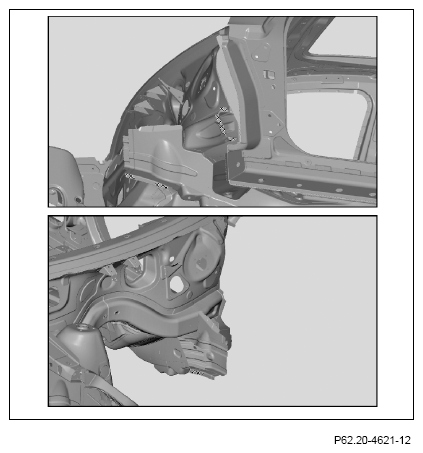

Shown on model 166.0
Grind mating surfaces on body down to bare metal in cross-hatched areas.
Remove shavings and drill chips.
Coat insides of spot welding flanges with zinc dust paint.

Shown on model 166.0
