Install And Weld In Wheel Well - AR62.20-P-1200-17GQ

MODEL 166, 292

Shown on model 166.0

Shown on model 166.0

1. Install front wheel well (1), fit and fix in place.

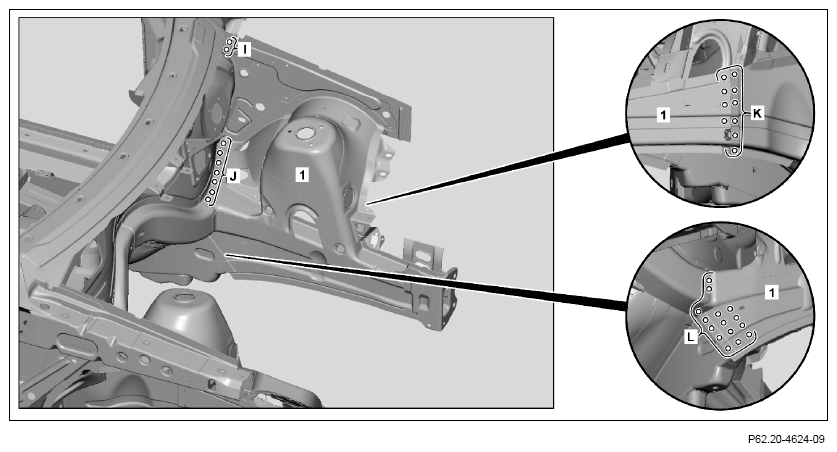

2. Drill Ø 6.7 mm rivet holes into front wheel well (1) (area H).

   Drill rivet holes through spot welds predrilled during removal.

3. Remove front wheel well (1).
4. Deburr rivet holes on both sides.
5. Coat insides of riveted joints with zinc dust paint.

   Shown on model 166.0

   Shown on model 166.0

6. Install front wheel well (1), fit and fix in place.

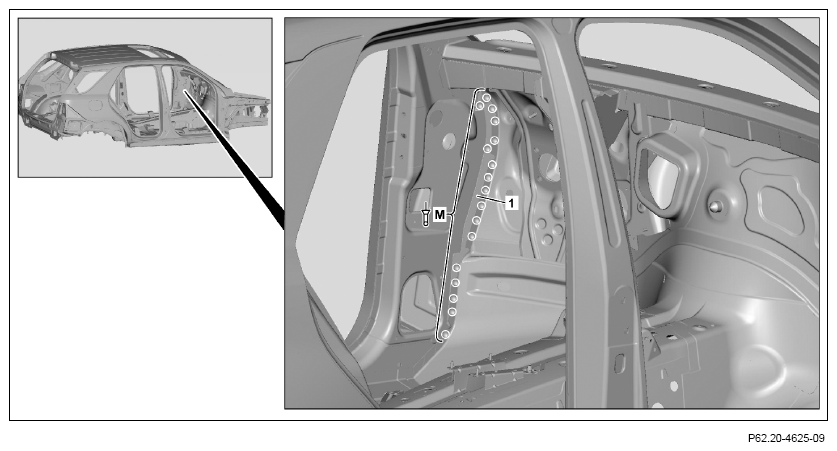

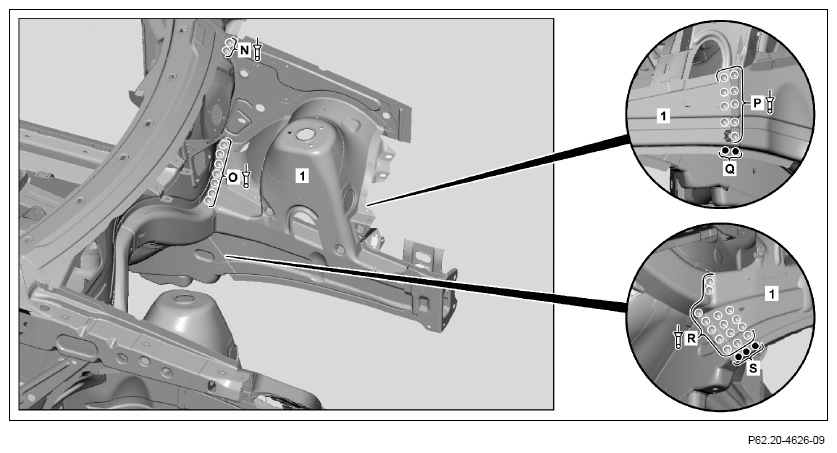

7. Rivet front wheel well (1) with Ø 6.5 X 12.5 blind rivet (areas M, N, O, P and R).
8. Front wheel well (1) (areas Q and S).

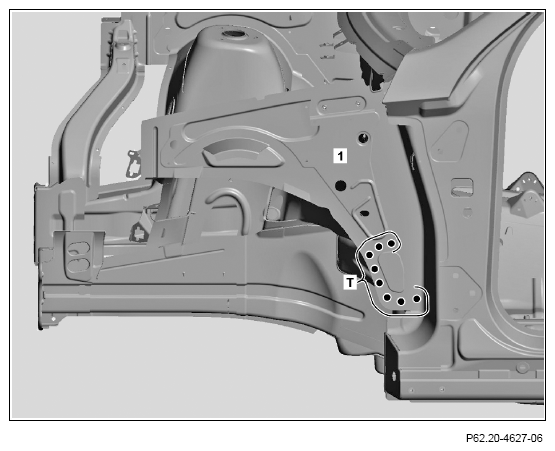

9. Front wheel well (1) (area T).
10. Clean weld joints.
11. Remove shavings and drill chips.

Shown on model 166.0
