Install And Weld In Longitudinal Member Front Section - AR62.20-P-1260-07GQ

MODEL 166, 292

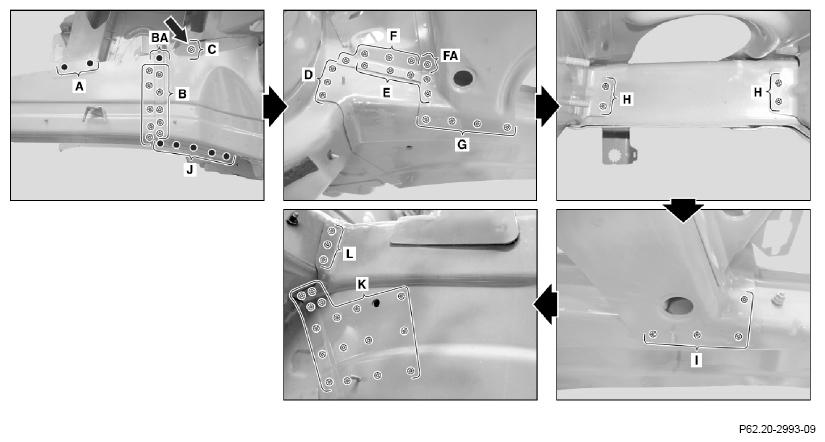

Shown on model 166

1. Install longitudinal member front section, fit and fix in place.
2. Drill Ø 7 mm holes for Ø in areas (C, F and FA).
3. Remove longitudinal member front section.
4. Deburr drill holes on both sides.
5. Install longitudinal member front section, fit and fix in place.
6. Longitudinal member front section Ø (areas A, J and BA).
7. Longitudinal member front section Ø (B, C, D, E, F, G, H, I, K, L and FA).
8. Clean welding areas.
