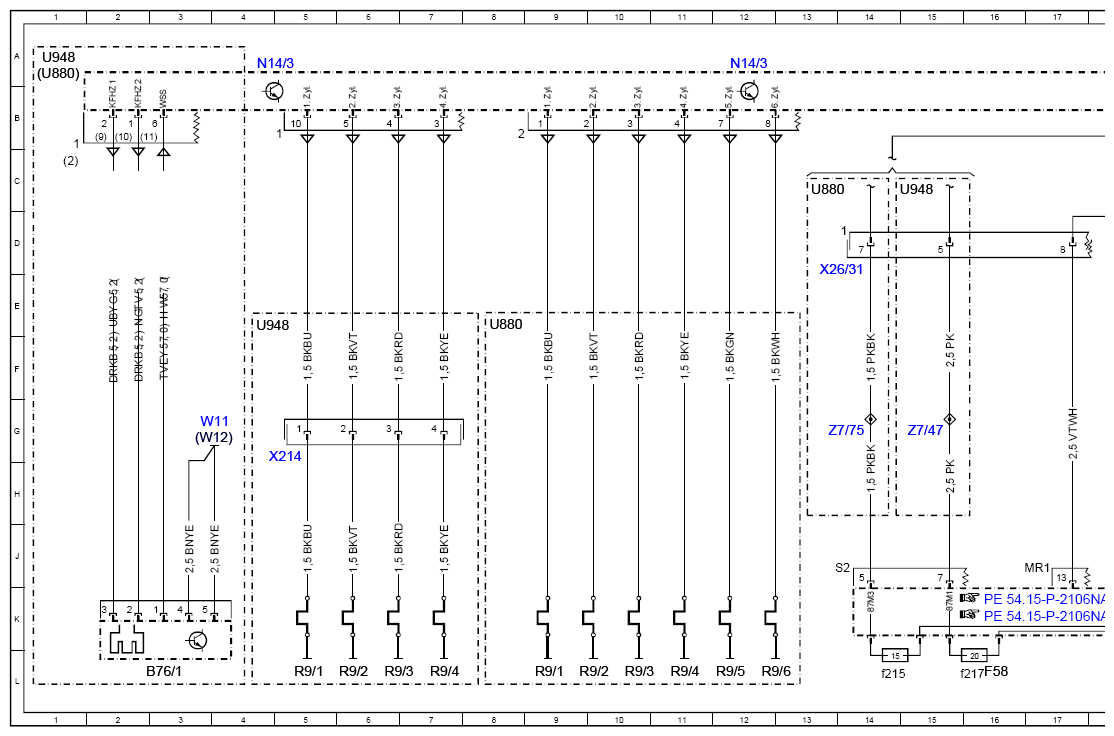

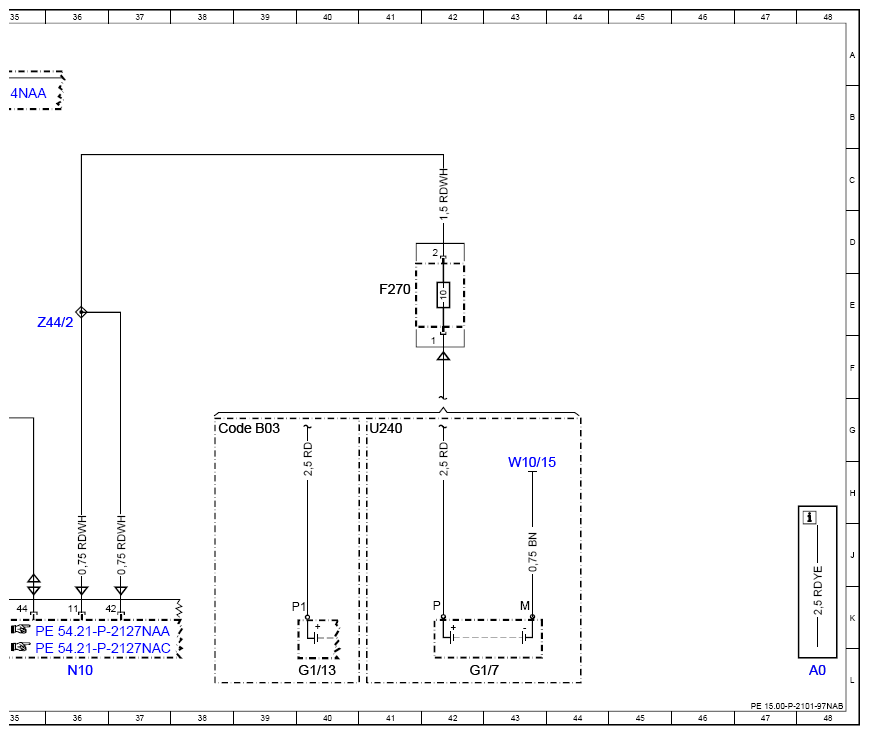

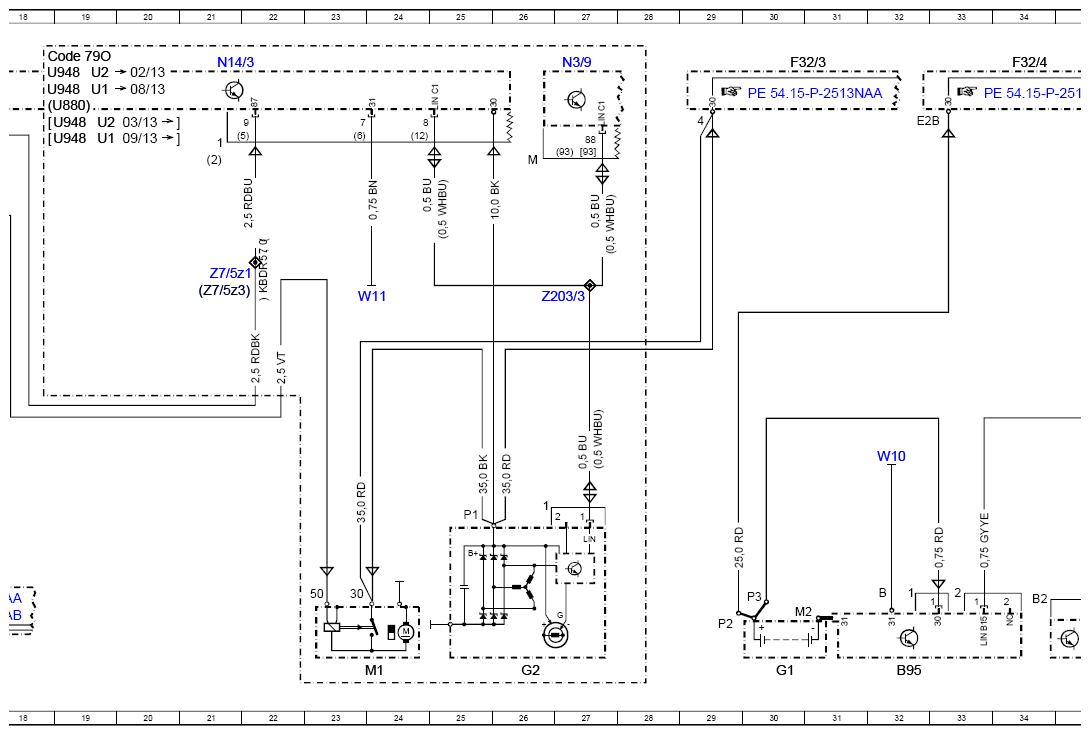

Wiring Diagram Of Starter, Alternator, Battery - PE15.00-P-2101-97NAB
ENGINE 642.8, 651.9 in MODEL 166 up to model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| B76/1 | Condensation sensor for fuel filter with heating element | 3L |
| B95 | Battery sensor | 32L |
| Code 790 | 18A | |
| Code B03 | ECO start/stop function | 38G |
| F270 | Buffer battery fuse | 41E |
| F32/3 | Engine compartment prefuse box | 31A |
| F32/4 | Interior prefuse box | 34A |
| F58 | Engine compartment fuse and relay module | 16L |
| F58f215 | Fuse 215 | 14L |
| F58f217 | Fuse 217 | 16L |
| G1 | On-board electrical system battery | 30L |
| G1/13 | ECO start/stop function additional battery | 40L |
| G1/7 | Additional battery | 42L |
| G2 | Alternator | 26L |
| M1 | Starter | 24L |
| n10 | SAM control unit | 36L |
| N14/3 | Glow output stage | 4A |
| N14/3 | Glow output stage | 12A |
| N14/3 | Glow output stage | 21A |
| N3/9 | CDI control unit | 27A |
| R9/1 | Cylinder 1 glow plug | 5L |
| R9/1 | Cylinder 1 glow plug | 9L |
| R9/2 | Cylinder 2 glow plug | 6L |
| R9/2 | Cylinder 2 glow plug | 9L |
| R9/3 | Cylinder 3 glow plug | 6L |
| R9/3 | Cylinder 3 glow plug | 10L |
| R9/4 | Cylinder 4 glow plug | 7L |
| R9/4 | Cylinder 4 glow plug | 11L |
| R9/5 | Cylinder 5 glow plug | 12L |
| R9/6 | Cylinder 6 glow plug | 12L |
| U1 | Valid for USA | 19B |
| U1 | Valid for USA | 19B |
| U2 | Valid for all except USA | 19B |
| U2 | Valid for all except USA | 19A |
| U240 | Valid for all except ECO start/stop function | 41G |
| U880 | Valid for engine 642 | 8E |
| U880 | Valid for engine 642 | 1A |
| U880 | Valid for engine 642 | 13C |
| U880 | Valid for engine 642 | 18B |
| U948 | Valid for diesel engine 651 | 4E |
| U948 | Valid for diesel engine 651 | 1A |
| U948 | Valid for diesel engine 651 | 14C |
| U948 | Valid for diesel engine 651 | 18B |
| U948 | Valid for diesel engine 651 | 18B |
| U948 | Valid for diesel engine 651 | 18A |
| W10 | Front right on-board electrical system battery ground point | 32G |
| W10/15 | Additional battery ground point | 43H |
| W11 | Combustion engine ground point | 3G |
| W11 | Combustion engine ground point | 23E |
| W12 | Ground point (center console) | 3G |
| X214 | Glow plug electrical connector | 5G |
| X26/31 | Engine/engine compartment electrical connector | 14D |
| Z203/3 | Alternator LIN signal connector sleeve | 27E |
| Z44/2 | Buffer battery connector sleeve | 36E |
| Z7/47 | Circuit 87D1 connector sleeve | 15G |
| Z7/5z1 | Circuit 87 connector sleeve | 21E |
| Z7/5z3 | Circuit 87 connector sleeve | 21E |
| Z7/75 | Circuit 87 D3 connector sleeve | 14G |
