Remove/Install Rear Seat Cushion - AR91.12-P-1020GQA

MODEL 166

40% rear seat cushion

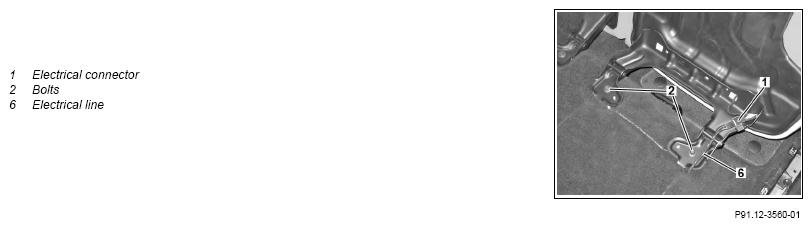

Shows model 166.0

G12082930

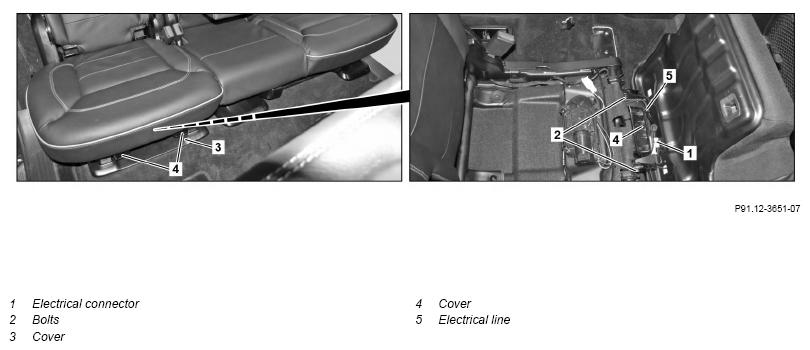

Show on model 166.8

G12082931

	Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of the mechanism when the components are moving.	AS00.00-Z-0009-01A
	Remove/install
1	Remove cover (3) from vehicle floor	MODEL 166.840% rear seat cushion
2	Fold up seat cushion
3	Unclip cover (4) at seat frame	MODEL 166.840% rear seat cushion
4.1	Disconnect electrical connector (1)	MODEL 166.0 with CODE 872 (Electrically heated left and right rear seats) 40% rear seat cushion Ensure that the electrical line (6) is routed correctly.
4.2	Disconnect electrical connector (1) and unclip electrical line (5) from rear seat cushion	MODEL 166.8 with CODE 872 (Electrically heated left and right rear seats) 40% rear seat cushion Ensure that the electrical line (5) is routed correctly.
5	Remove bolts (2)	MODEL 166.840% rear seat cushion Installation: Replace screws/bolts (2).
		MODEL 166.8 40% rear seat cushion	*BA91.12-P-1004-03F
		MODEL 166.0 40% rear seat cushion	*BA91.12-P-1001-03F
6	Remove rear seat cushion
7	Install in the reverse order

REAR SEATS

Number	Designation		MODEL 166.8
BA91.12-P-1004-03F	Bolt, rear seat cushion to rear seat console	Nm	25

REAR SEATS

Number	Designation		MODEL 166.0
BA91.12-P-1001-03F	Bolt, rear seat console to vehicle floor	Nm	50
