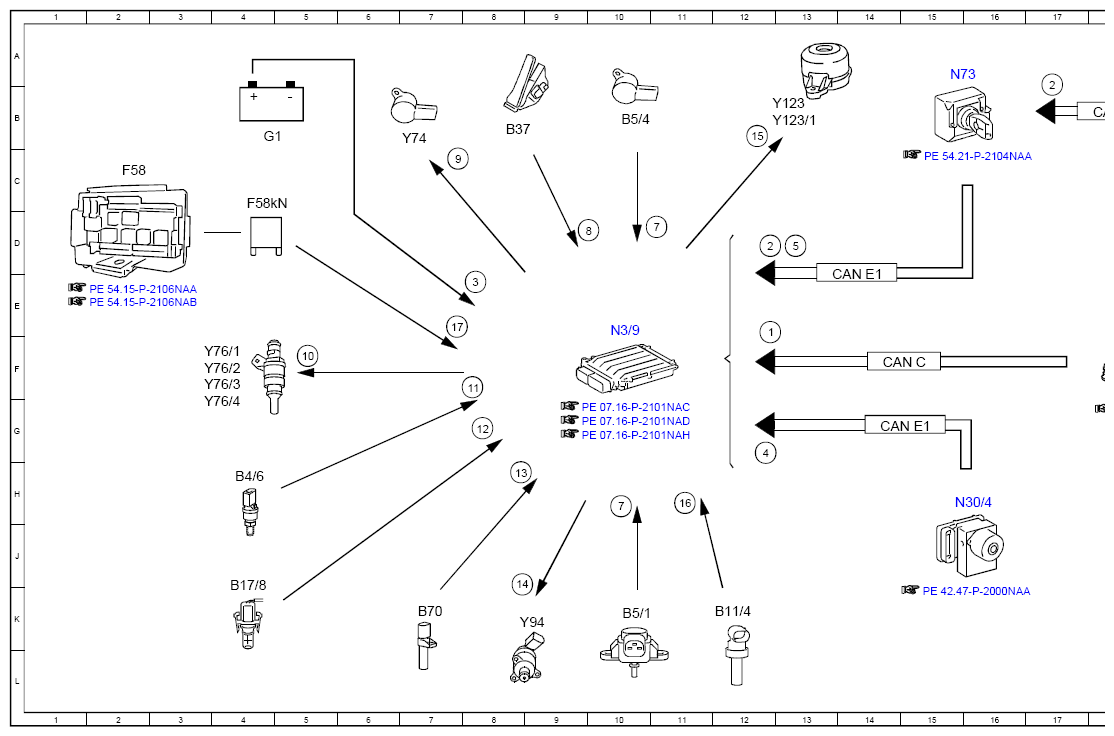

Electrical Function Schematic For RPM Control - PE07.10-P-2708-97NAA
ENGINE 651.9 up to 2/28/13 in MODEL 166
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Gear range, status | 12E |
| 10 | Fuel injectors, actuation | 5F |
| 11 | Fuel pressure, signal | 8F |
| 12 | Charge air temperature sensor, signal | 8G |
| 13 | Engine speed, signal | 8H |
| 14 | Quantity control valve, actuation | 8K |
| 15 | Switchable engine mount, actuation | 12B |
| 16 | Coolant temperature sensor, signal | 11H |
| 17 | Circuit 87, status | 7E |
| 2 | Air conditioning, status | 12D |
| 2 | Air conditioning, status | 17B |
| 3 | Circuit 30, status | 8E |
| 4 | Vehicle speed, signal | 12G |
| 5 | Outside temperature, signal | 13D |
| 7 | Boost pressure, signal | 11D |
| 7 | Boost pressure, signal | 10H |
| 8 | Accelerator pedal sensor, signal | 9D |
| 9 | Pressure regulator valve, actuation | 7C |
| B11/4 | Coolant temperature sensor | 12K |
| B17/8 | Charge air temperature sensor | 4K |
| B37 | Accelerator pedal sensor | 8B |
| B4/6 | Fuel high-pressure sensor | 4H |
| B5/1 | Boost pressure sensor | 10K |
| B5/4 | Low-pressure turbocharger boost pressure sensor | 10B |
| B70 | Crankshaft Hall sensor | 7K |
| CAN B | Interior CAN | 18B |
| CAN C | Drive train CAN | 14F |
| CAN E1 | Chassis CAN 1 | 14G |
| CAN E1 | Chassis CAN 1 | 14E |
| F58 | Engine compartment fuse and relay module | 2C |
| F58kN | Circuit 87M relay | 4C |
| G1 | On-board electrical system battery | 4B |
| N22/7 | Automatic air conditioning control and operating unit | 20A |
| N3/9 | CDI control unit | 10E |
| N30/4 | Electronic Stability Program control unit | 16H |
| N73 | Electronic ignition switch control unit | 15A |
| Y123 | Left switchable engine mount | 12B |
| Y123/1 | Right switchable engine mount | 12B |
| Y3/8n4 | Fully integrated transmission control unit | 18F |
| Y74 | Pressure regulator valve | 7B |
| Y76/1 | Cylinder 1 fuel injector | 3F |
| Y76/2 | Cylinder 2 fuel injector | 3F |
| Y76/3 | Cylinder 3 fuel injector | 3F |
| Y76/4 | Cylinder 4 fuel injector | 3G |
| Y94 | Quantity control valve | 8K |
