Remove/Install Low-Temperature Circuit Expansion Reservoir With Carrier - AR09.41-P-0002GQC
ENGINE 276.8 in MODEL 166, 251, 292
| Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |

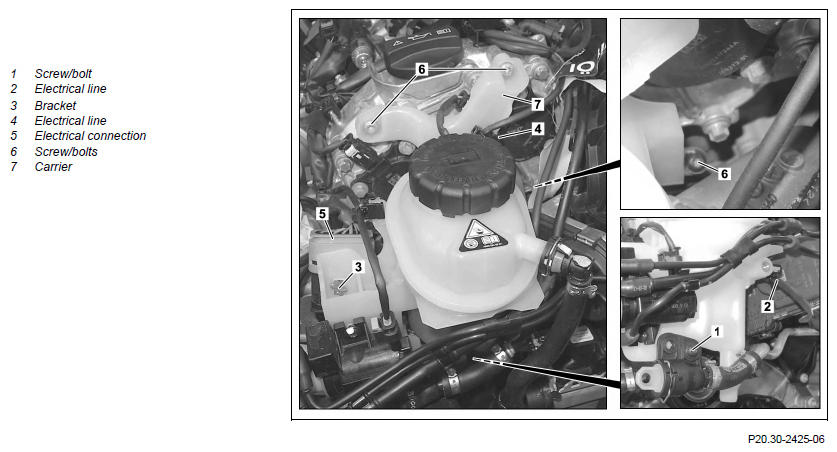

| Remove/install | |||
| 1 | Remove low-temperature circuit expansion reservoir | AR09.41-P-0001GQC | |
| 2 | Unclip electrical line of boost pressure actuator on carrier (7) | ||
| 3 | Loosen boost pressure actuator and place to one side with attached lines | AR07.17-P-7002GQC | |
| 4.1 | Remove screw/bolt (1) | Engine 276.8 in model 166, 251, 292 (except 292.364) | |
| 4.2 | Detach bracket for coolant return line on right ATL on carrier (7) | Engine 276.8 in model 292.364 | |
| 5 | Remove screw/bolt (1) | ||
| 6 | Unclip electrical line (2) from carrier (7) | ||
| 7 | Unclip bracket (3) from carrier (7) | ||
| 8 | Detach electrical line (4) from carrier (7) | ||
| 9 | Disconnect electrical connection (5) and unclip electrical wiring harness from carrier (7) | ||
| 10 | Remove screw/bolts (6) | *BA20.10-P-1010-01AA | |
| *BA20.10-P-1009-01AA | |||
| 11 | Remove carrier (7) | ||
| 12 | Install in the reverse order |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA20.10-P-1009-01AA | Bolt, bracket for expansion reservoir to cylinder head cover | Nm | 9 |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA20.10-P-1010-01AA | Bolt, bracket for expansion reservoir to cylinder head | Nm | 9 |
