Remove/Install Charge Air Hose Upstream Of Charge Air Cooler - AR09.41-P-8621OGR
ENGINE 642 in MODEL 166, 292

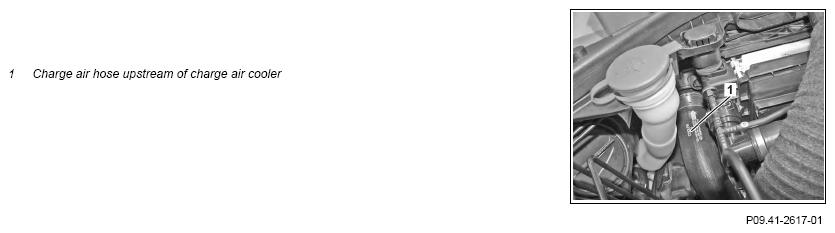

Shown on model 166
| Remove/install | |||
| 1 | Remove left engine air intake duct upstream of air filter | ||
| 2 | Remove charge air hose upstream of the charge air cooler (1) at the charge air cooler and at the engine charge air duct upstream of the charge air cooler | AR09.41-P-1311-01AL | |
| 3 | Install in the reverse order | ||
| 4 | Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Carry out an engine test run |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A |
