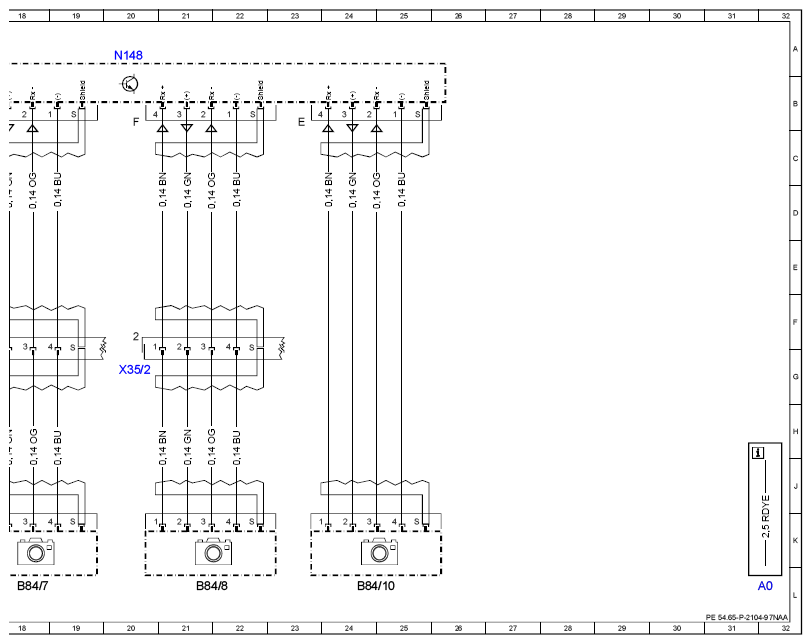

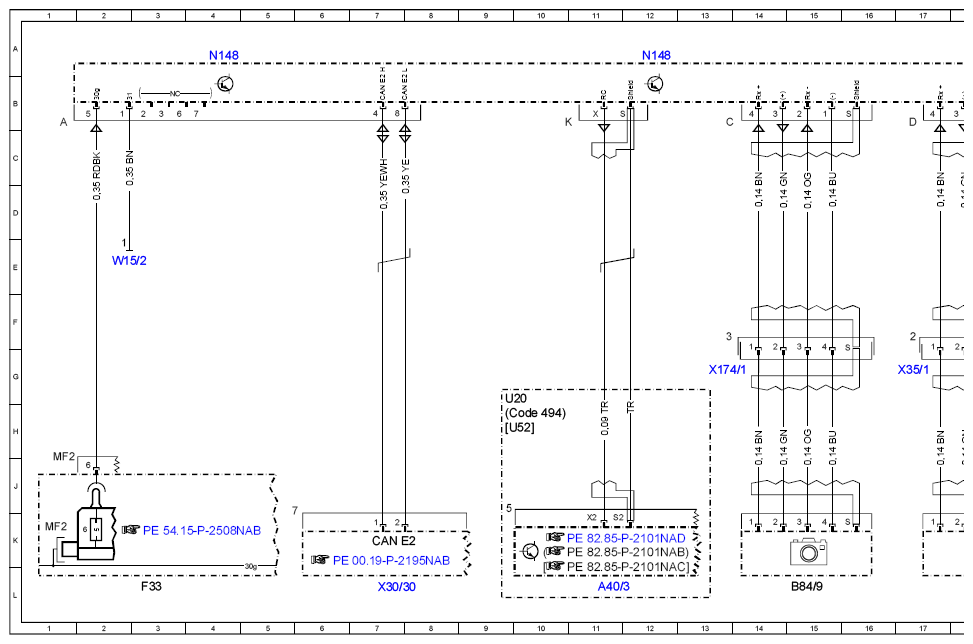

Wiring Diagram For 360° Camera Control Unit - PE54.65-P-2104-97NAA
MODEL 166 up to model year 2016 with CODE 501 (360° camera) Control unit N148'
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| A40/3 | COMAND control unit | 11L |
| B84/10 | Rear end 360° camera | 24L |
| B84/7 | Left outside mirror 360° camera | 18L |
| B84/8 | Right outside mirror 360° camera | 21L |
| B84/9 | Front end 360° camera | 15L |
| CAN E2 | Chassis CAN 2 | 7K |
| Code 494 | USA version | 9H |
| F33 | Battery compartment prefuse box | 3L |
| F33MF2 | Multiple fuse 2 | 1K |
| N148 | 360° camera control unit | 4A |
| N148 | 360° camera control unit | 12A |
| N148 | 360° camera control unit | 20A |
| U20 | Valid for all (except {{USA}} {{Japan}}) | 9G |
| U52 | Valid for Japan | 9H |
| W15/2 | Left footwell ground point | 2E |
| X174/1 | Vehicle interior/front bumper electrical connector | 13G |
| X30/30 | Vehicle floor chassis CAN E2 potential distributor electrical connector | 7L |
| X35/1 | Left front door electrical connector | 17G |
| X35/2 | Right front door electrical connector | 20G |
