Wiring Diagram, Engine Compartment Prefuse Box (F32/3) - PE54.15-P-2513-97NBA
MODEL 166 as of model year 2016 with CODE 4U7 (Start/stop voltage dip protector) with CODE B03 (ECO start/stop function) Prefuse box F32/3
MODEL 292 with CODE 4U7 (Start/stop voltage dip protector) with code B03 (ECO start/stop function) Prefuse box F32/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| F32/3 | Engine compartment prefuse box | 4A |
| F32/3 | Engine compartment prefuse box | 12A |
| F32/3 | Engine compartment prefuse box | 20A |
| F32/3 | Engine compartment prefuse box | 28A |
| F32/3 | Engine compartment prefuse box | 36A |

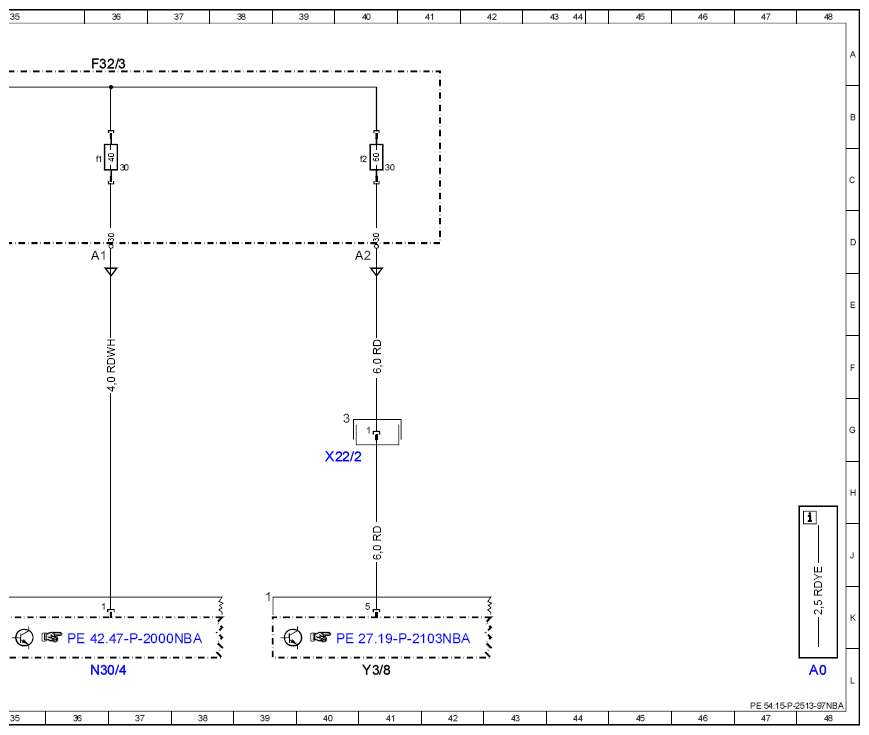

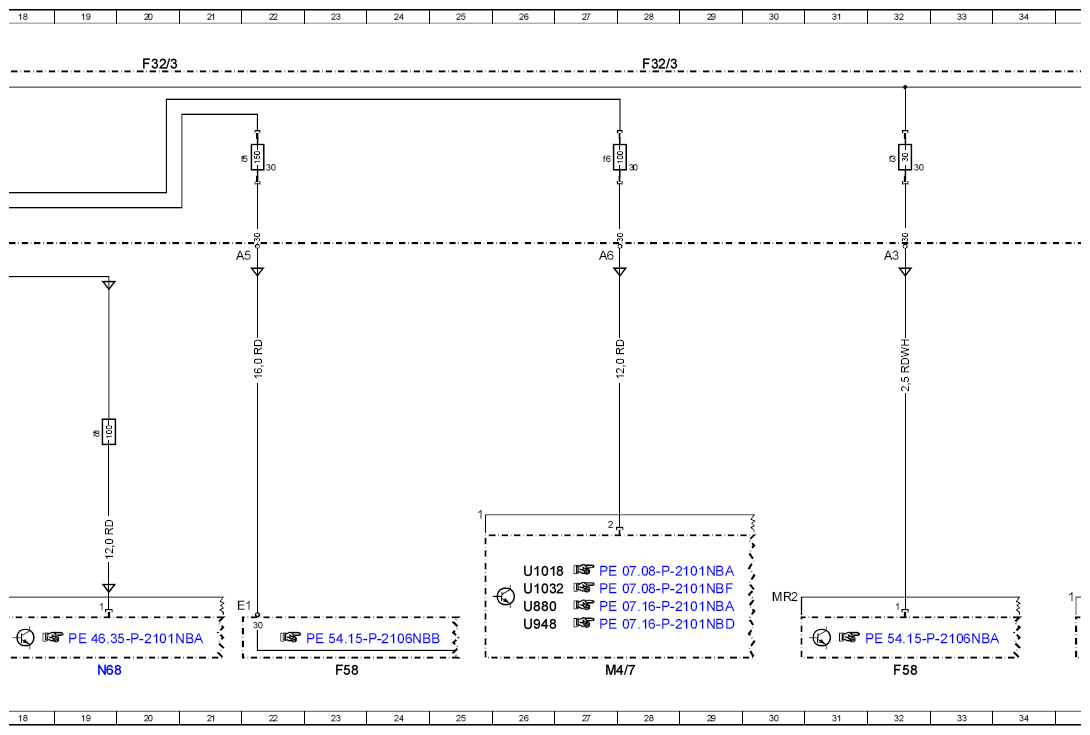

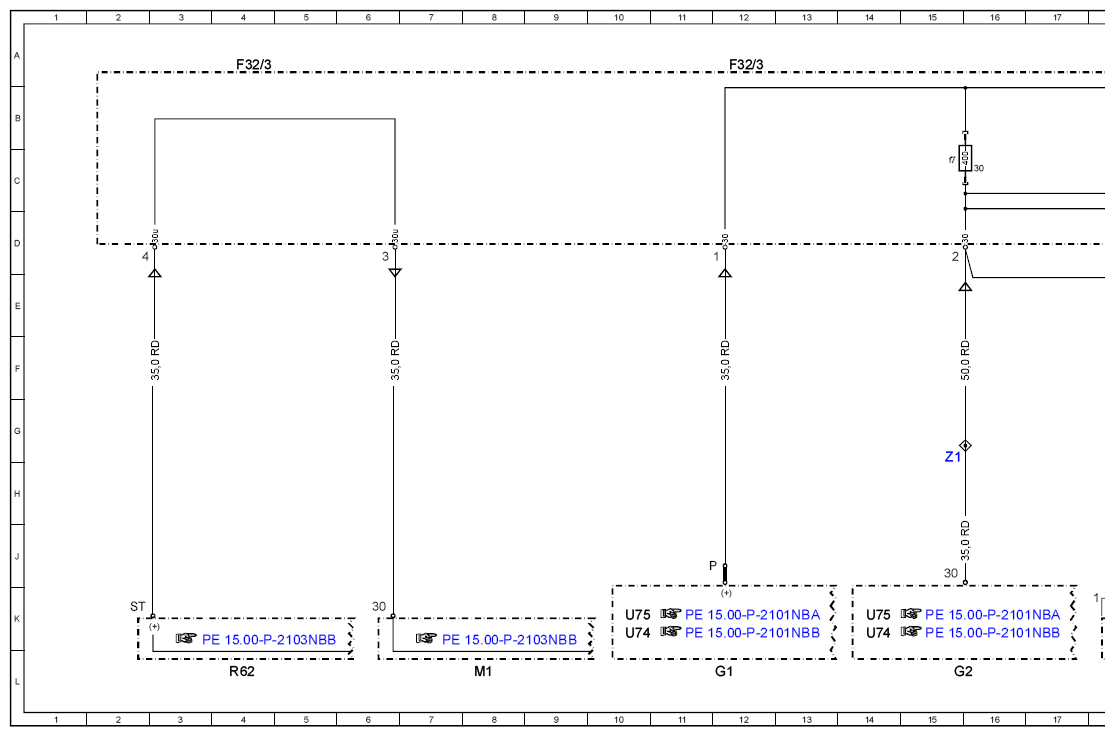

| F32/3f1 | Fuse 1 | 36C |
| F32/3f2 | Fuse 2 | 41C |
| F32/3f3 | Fuse 3 | 32C |
| F32/3f5 | Fuse 5 | 21C |
| F32/3f6 | Fuse 6 | 27C |
| F32/3f7 | Fuse 7 | 15C |
| F32/3f8 | Fuse 8 | 19G |
| F58 | Engine compartment fuse and relay module | 23L |
| F58 | Engine compartment fuse and relay module | 32L |
| G1 | On-board electrical system battery | 12L |
| G2 | Alternator | 15L |
| M1 | Starter | 8L |
| M4/7 | Fan motor | 27L |
| N30/4 | Electronic Stability Program control unit | 36L |
| N68 | Electrical power steering control unit | 19L |
| R62 | Voltage dip limiter | 4L |
| U1018 | Valid for gasoline engine 276 | 26J |
| U1032 | Valid for engine 278 and 157 | 26K |
| U74 | Valid for diesel engines | 10K |
| U74 | Valid for diesel engines | 14K |
| U75 | Valid for gasoline engines | 10K |
| U75 | Valid for gasoline engines | 14K |
| U880 | Valid for engine 642 | 26K |
| U948 | Valid for diesel engine 651 | 26K |
| X22/2 | Automatic transmission/intelligent servo module electrical connector | 40H |
| Y3/8 | Fully integrated transmission control unit | 41L |
| Z1 | Alternator connector sleeve | 15G |
