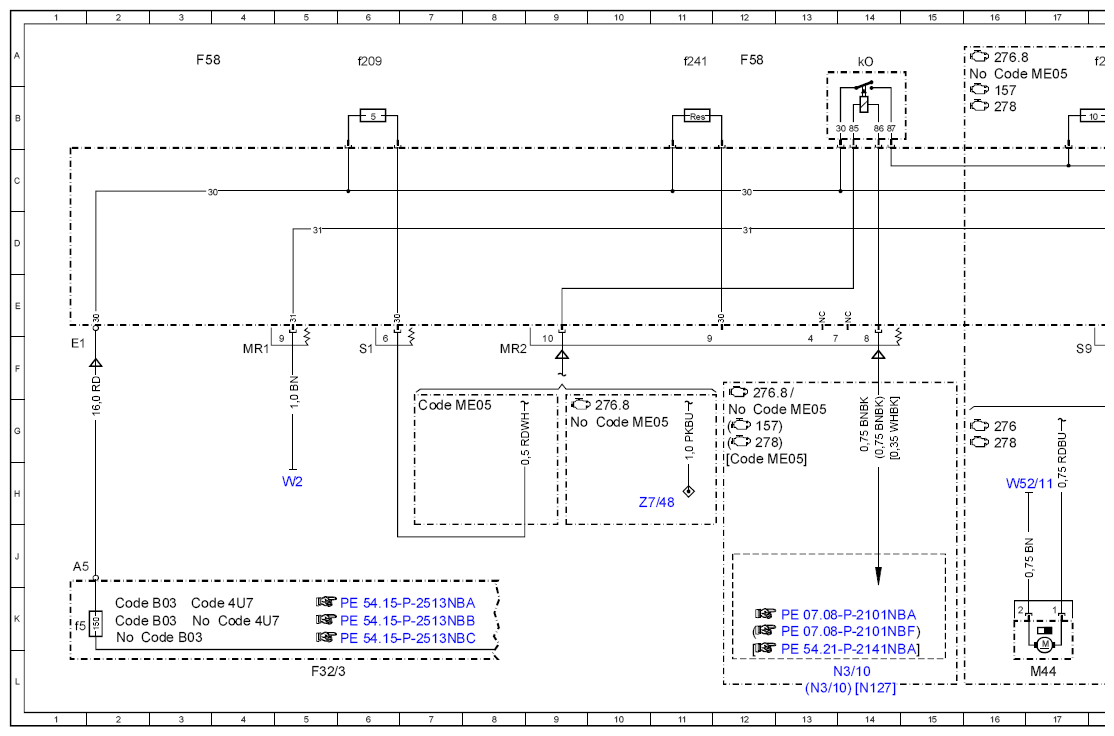

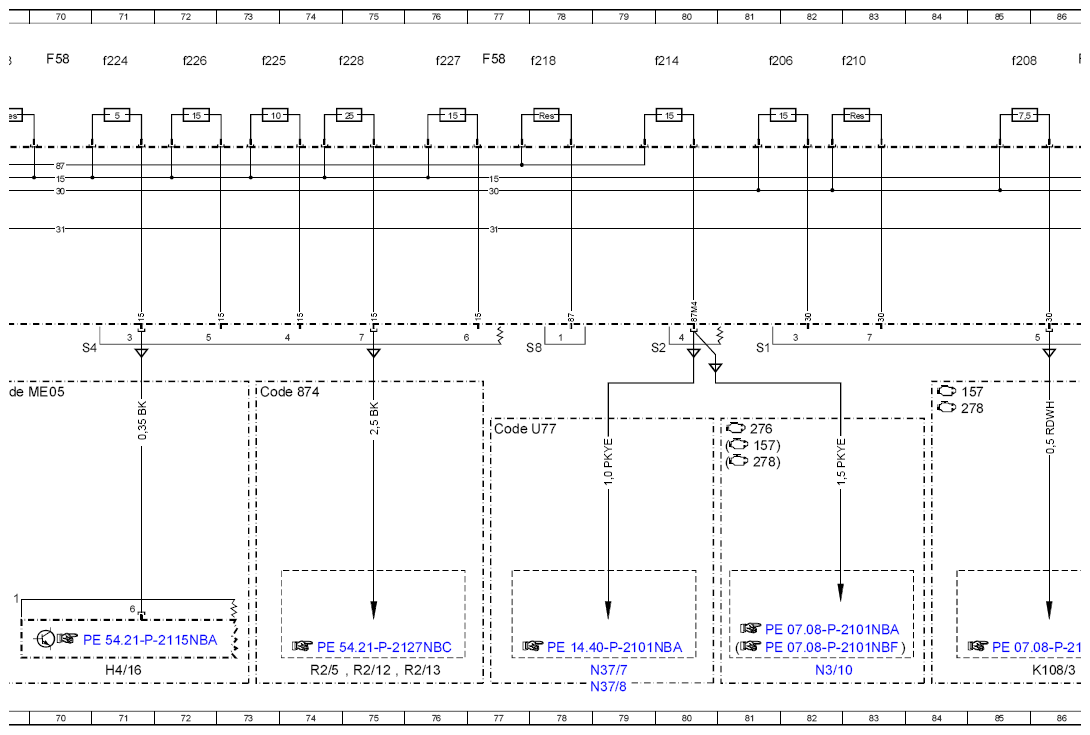

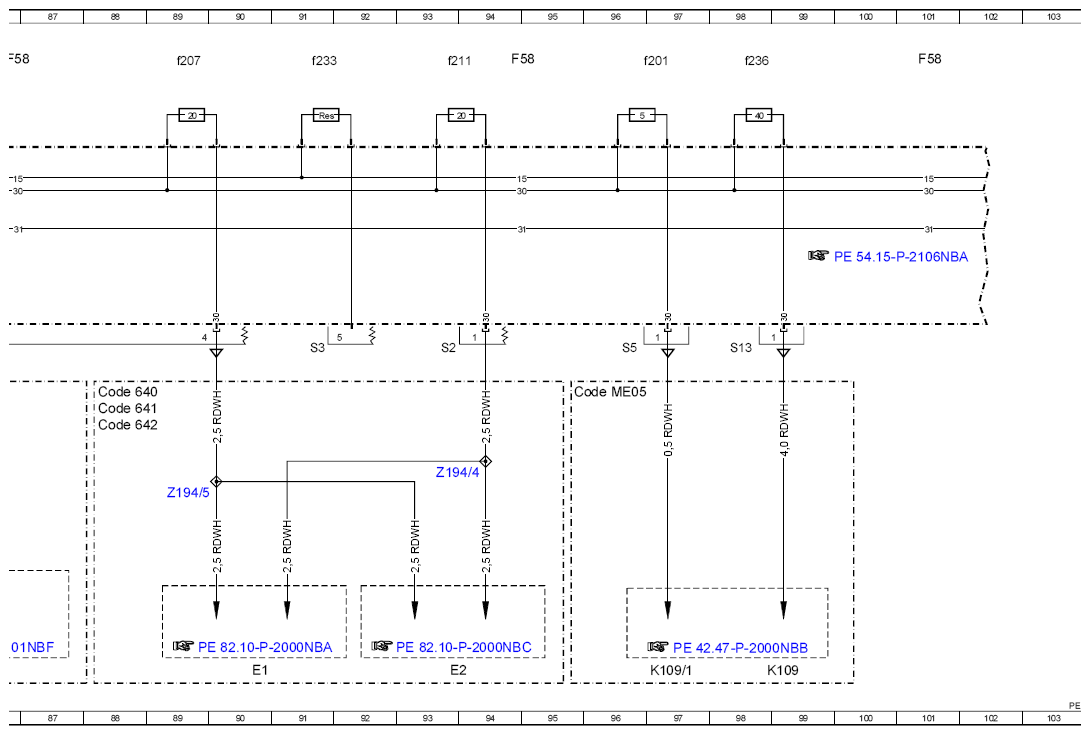

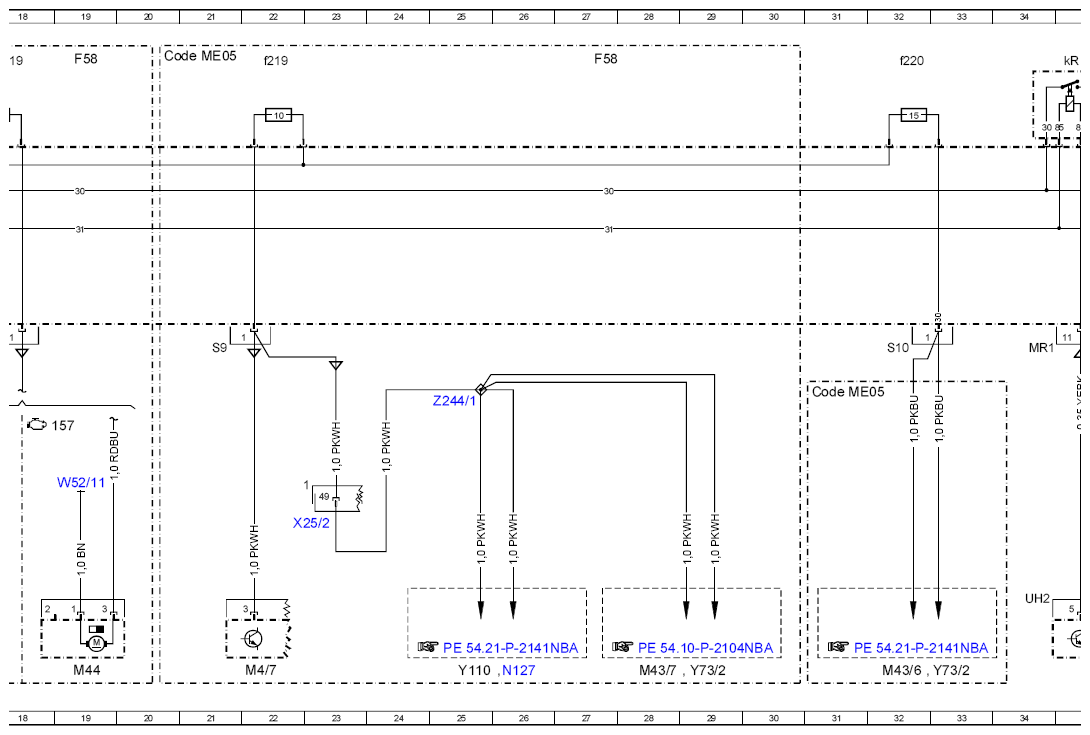

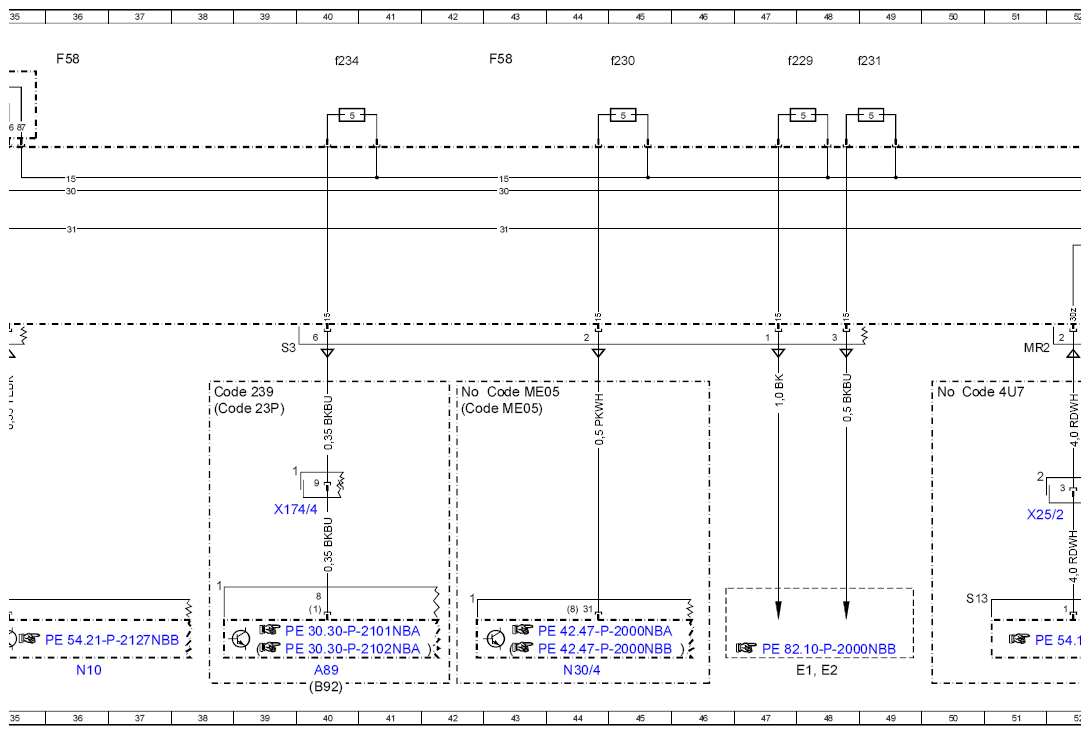

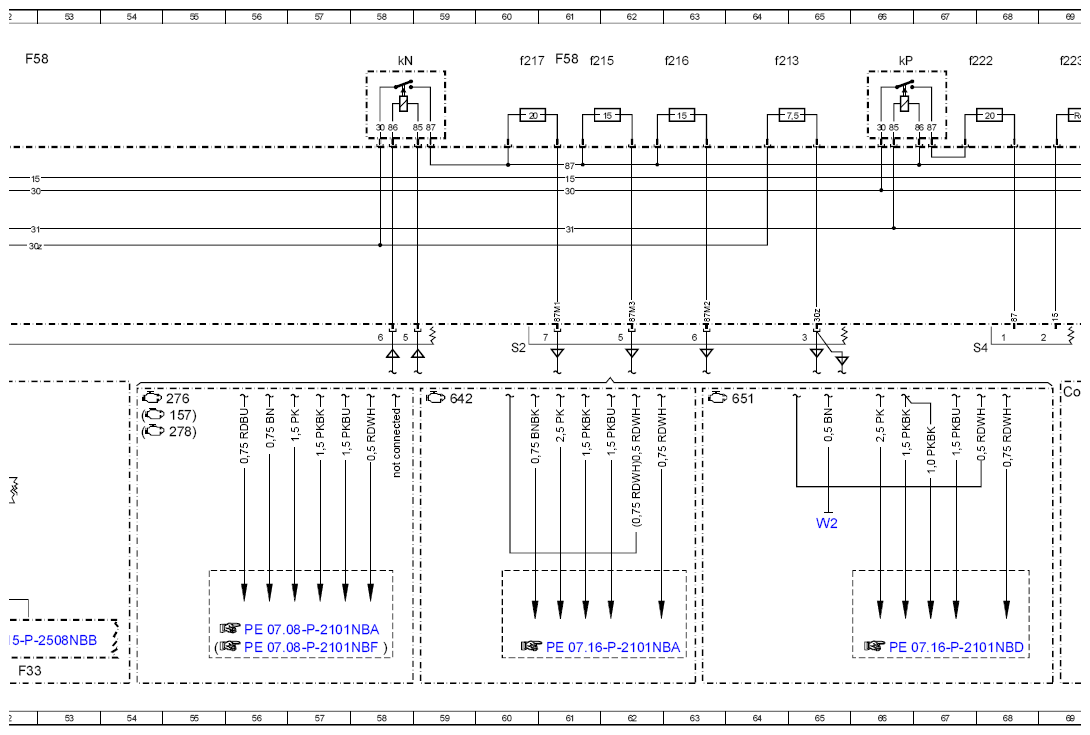

Wiring Diagram For Engine Compartment Fuse And Relay Module - PE54.15-P-2106-97NBB
MODEL 166 as of model year 2016 Fuse and relay box F58, Sheet 2
MODEL 292 Fuse and relay box F58, Sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 104L |
| A89 | DISTRONIC electric controller unit | 40L |
| B92 | Front long-range radar sensor | 40L |
| Code 239 | DISTRONIC Distance-Pilot | 38F |
| Code 23P | Driver assistance package | 38G |
| Code 4U7 | Start/stop voltage dip protection | 3K |
| Code 4U7 | Start/stop voltage dip protection | 4K |
| Code 4U7 | Start/stop voltage dip protection | 50F |
| Code 640 | High Performance LED | 88F |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 88G |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 88G |
| Code 874 | MAGIC VISION CONTROL | 73F |
| Code B03 | ECO start/stop function | 2K |
| Code B03 | ECO start/stop function | 2K |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 12H |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 7G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 31F |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 42G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 20A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 69F |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 95F |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 10G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 43F |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 16A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 12G |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 77G |
| E1 | Left front lamp unit | 48L |
| E1 | Left front lamp unit | 90L |
| E2 | Right front lamp unit | 48L |
| E2 | Right front lamp unit | 93L |
| F32/3 | Engine compartment prefuse box | 5L |
| F32/3f5 | Fuse 5 | 1K |
| F33 | Battery compartment prefuse box | 52L |
| F58 | Engine compartment fuse and relay module | 3A |
| F58 | Engine compartment fuse and relay module | 12A |
| F58 | Engine compartment fuse and relay module | 36A |
| F58 | Engine compartment fuse and relay module | 19A |
| F58 | Engine compartment fuse and relay module | 27A |
| F58 | Engine compartment fuse and relay module | 43A |
| F58 | Engine compartment fuse and relay module | 52A |
| F58 | Engine compartment fuse and relay module | 61A |
| F58 | Engine compartment fuse and relay module | 70A |
| F58 | Engine compartment fuse and relay module | 77A |
| F58 | Engine compartment fuse and relay module | 86A |
| F58 | Engine compartment fuse and relay module | 94A |
| F58 | Engine compartment fuse and relay module | 101A |
| F58f201 | Fuse 201 | 97A |
| F58f206 | Fuse 206 | 81A |
| F58f207 | Fuse 207 | 89A |
| F58f208 | Fuse 208 | 85A |
| F58f209 | Fuse 209 | 6A |
| F58f210 | Fuse 210 | 83A |
| F58f211 | Fuse 211 | 93A |
| F58f213 | Fuse 213 | 64A |
| F58f214 | Fuse 214 | 80A |
| F58f215 | Fuse 215 | 61A |
| F58f216 | Fuse 216 | 63A |
| F58f217 | Fuse 217 | 60A |
| F58f218 | Fuse 218 | 78A |
| F58f219 | Fuse 219 | 22A |
| F58f219 | Fuse 219 | 18A |
| F58f220 | Fuse 220 | 32A |
| F58f222 | Fuse 222 | 68A |
| F58f223 | Fuse 223 | 69A |
| F58f224 | Fuse 224 | 71A |
| F58f225 | Fuse 225 | 73A |
| F58f226 | Fuse 226 | 72A |
| F58f227 | Fuse 227 | 76A |
| F58f228 | Fuse 228 | 75A |
| F58f229 | Fuse 229 | 48A |
| F58f230 | Fuse 230 | 45A |
| F58f231 | Fuse 231 | 49A |
| F58f233 | Fuse 233 | 91A |
| F58f234 | Fuse 234 | 40A |
| F58f236 | Fuse 236 | 98A |
| F58f241 | Fuse 241 | 11A |
| F58kN | Circuit 87M relay | 58A |
| F58kO | Turbocharger relay | 14A |
| F58kP | Backup relay | 66A |
| F58kR | Circuit 15 relay | 35A |
| H4/16 | Sound generator | 71L |
| K108/3 | Coolant run-on pump relay | 86L |
| K109 | Vacuum pump relay (+) | 99L |
| K109/1 | Vacuum pump relay (-) | 97L |
| M4/7 | Fan motor | 22L |
| M43/6 | Low temperature circuit circulation pump 1 | 32L |
| M43/7 | Low temperature circuit circulation pump 2 | 28L |
| M44 | Charge air cooler circulation pump | 17L |
| M44 | Charge air cooler circulation pump | 19L |
| N10 | SAM control unit | 36L |
| N127 | Drivetrain control unit | 14L |
| N127 | Drivetrain control unit | 26L |
| N3/10 | ME-SFI [ME] control unit | 14L |
| N3/10 | ME-SFI [ME] control unit | 13L |
| N3/10 | ME-SFI [ME] control unit | 82L |
| N30/4 | Electronic Stability Program control unit | 44L |
| N37/7 | NOx sensor control unit downstream of diesel particulate filter | 79L |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 79L |
| R2/12 | Left heated wiper blade | 75L |
| R2/13 | Right heated wiper blade | 76L |
| R2/5 | Upper spray nozzle hose heater | 74L |
| W2 | Right front ground point at lamp unit | 5H |
| W2 | Right front ground point at lamp unit | 65J |
| W52/11 | Upper right front longitudinal member ground point | 16H |
| W52/11 | Upper right front longitudinal member ground point | 19H |
| X174/4 | Engine compartment/vehicle front electrical connector | 40H |
| X25/2 | Engine compartment/vehicle interior electrical connector | 23J |
| X25/2 | Engine compartment/vehicle interior electrical connector | 51H |
| Y110 | High-voltage battery cooling system expansion valve | 25L |
| Y73/2 | Low-temperature circuit switchover valve 2 | 29L |
| Y73/2 | Low-temperature circuit switchover valve 2 | 33L |
| Z194/4 | Circuit 30/1 connector sleeve (front lamp unit) | 93H |
| Z194/5 | Circuit 30/2 connector sleeve (front lamp unit) | 89H |
| Z244/1 | Connector sleeve, circuit 87/C1 | 25G |
| Z7/48 | Circuit 87D2 connector sleeve | 11H |
