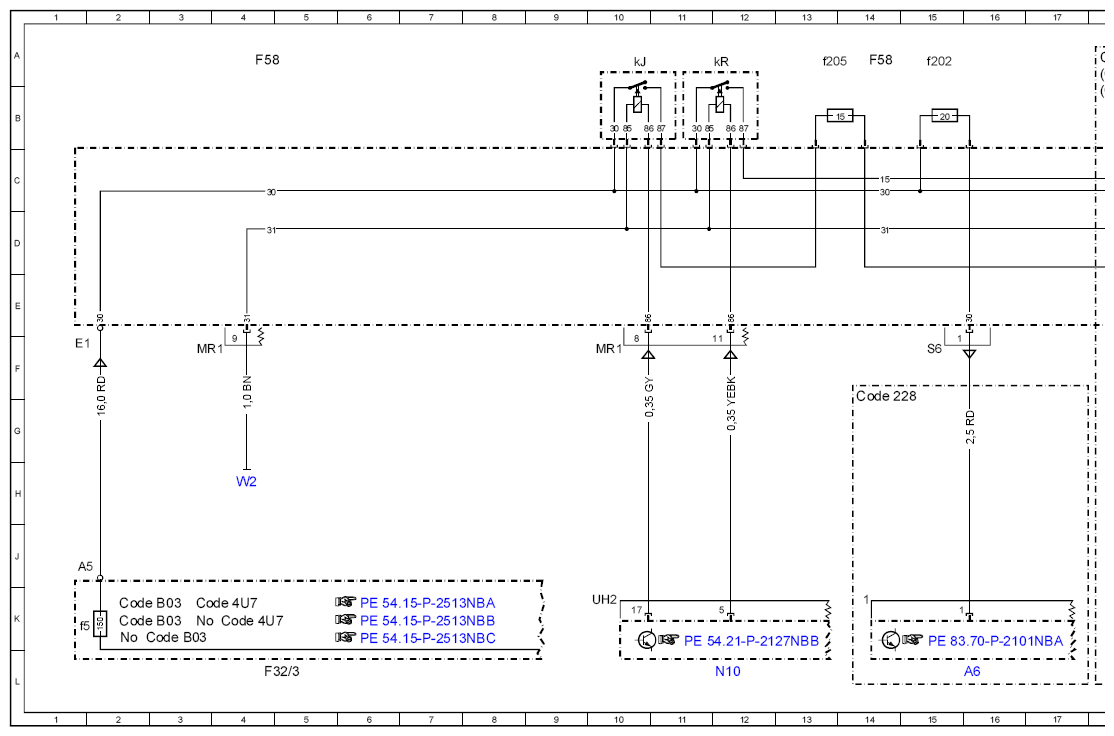

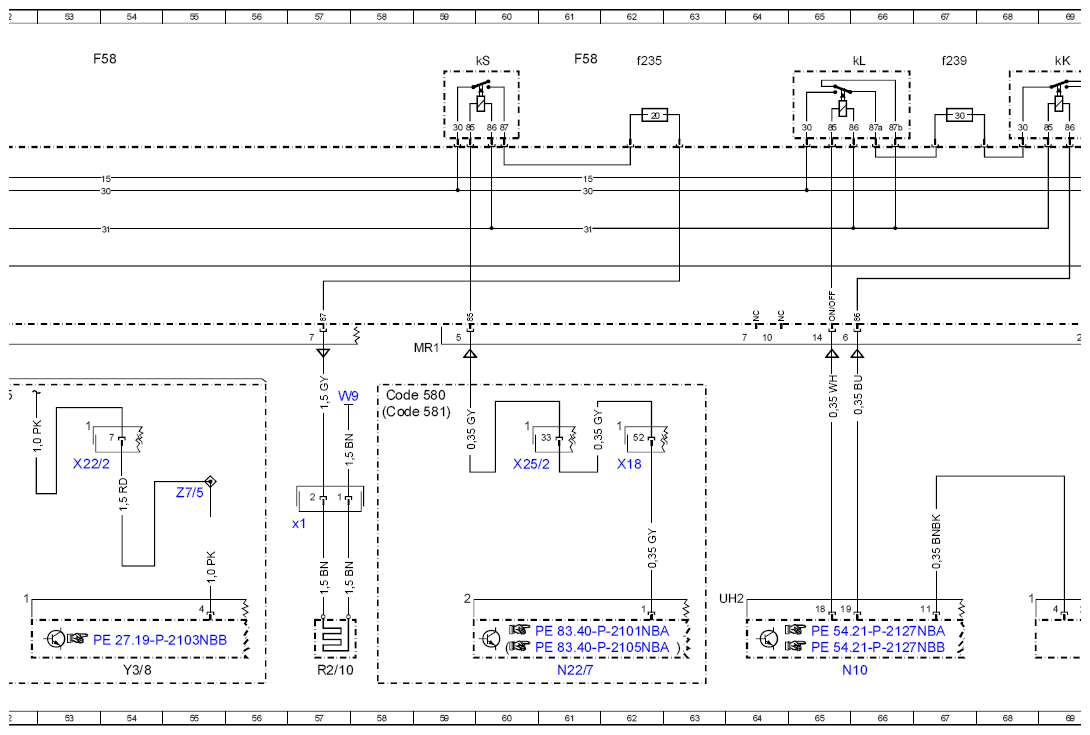

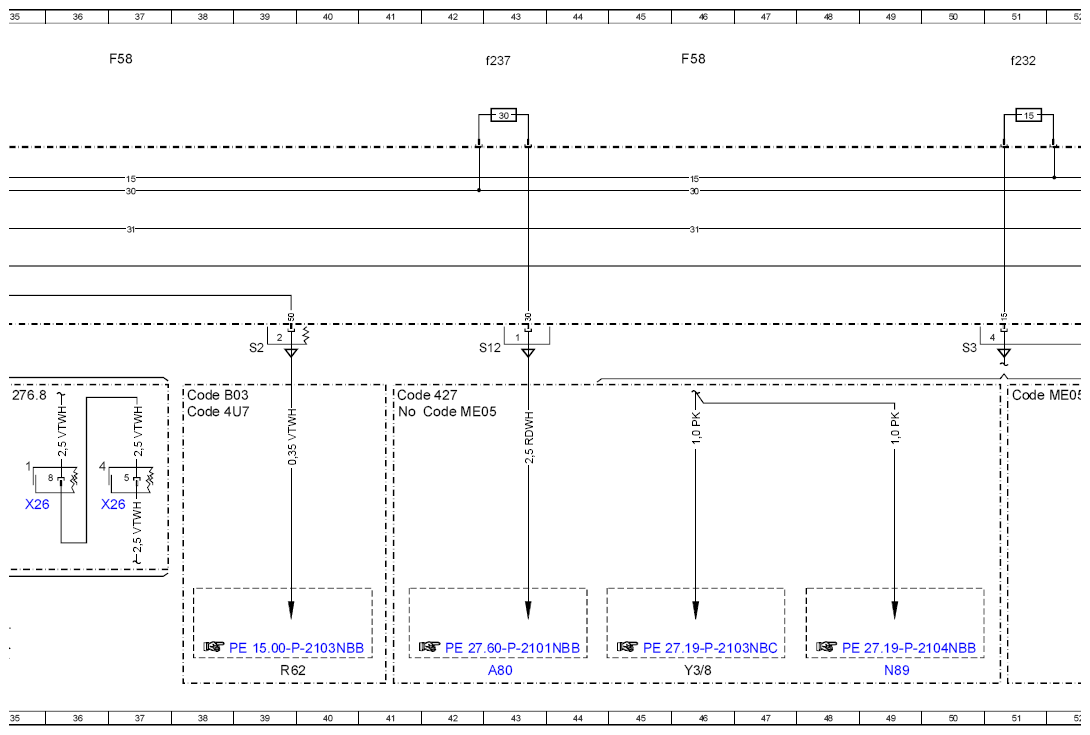

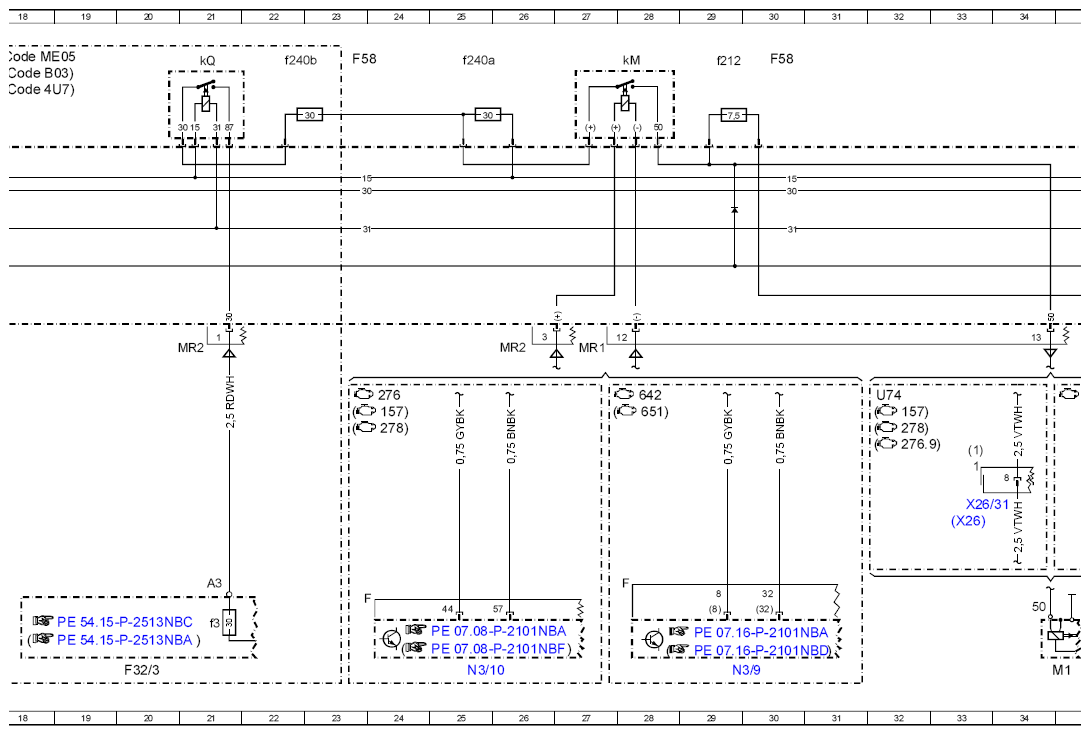

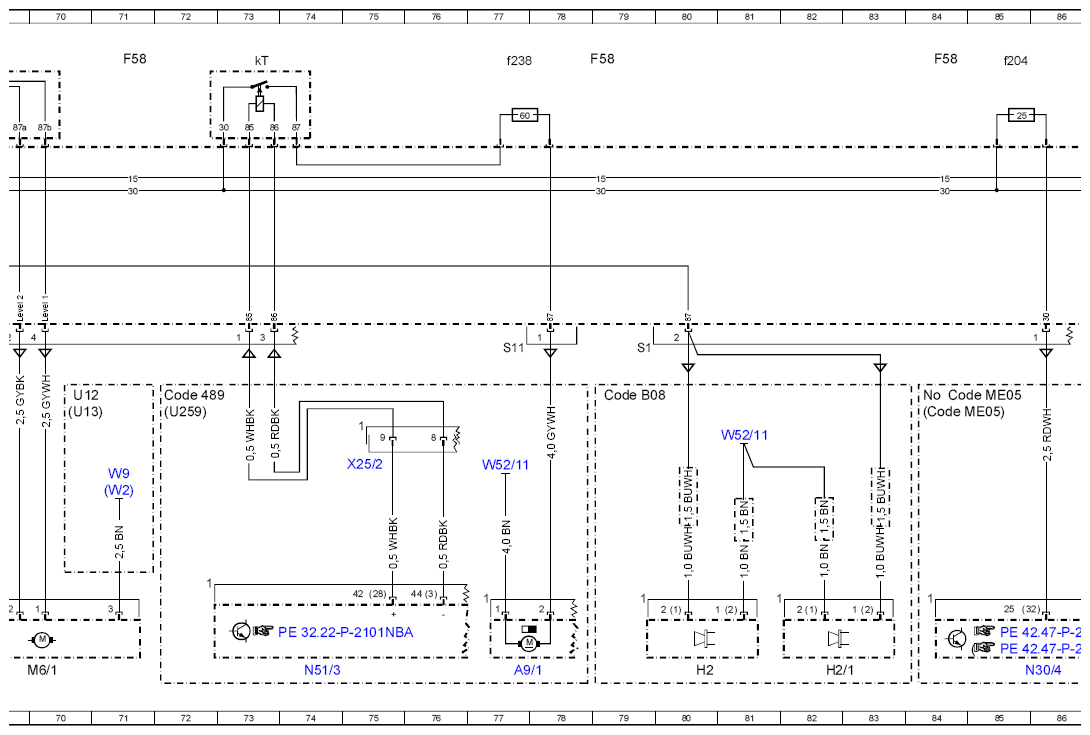

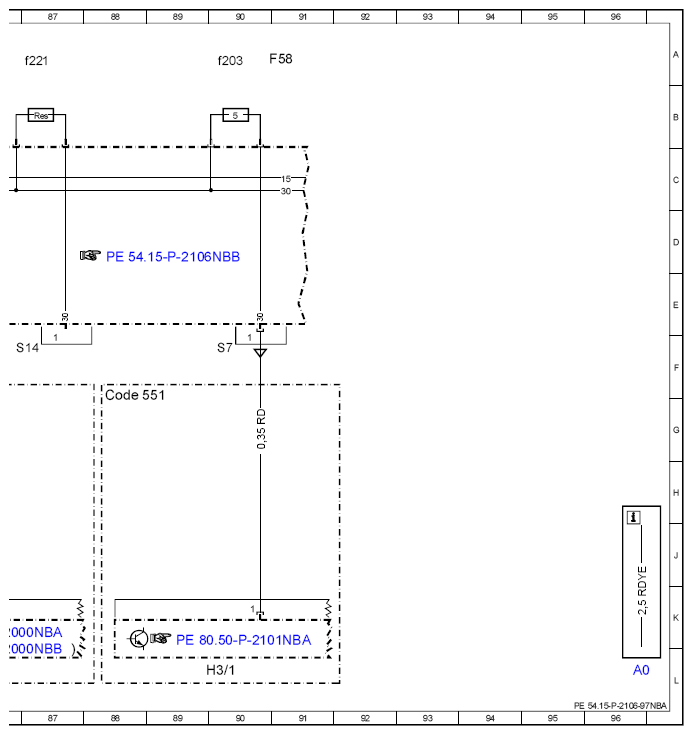

Wiring Diagram For Engine Compartment Fuse And Relay Module - PE54.15-P-2106-97NBA
MODEL 166 as of model year 2016 Fuse and relay box F58, sheet 1
MODEL 292 Fuse and relay box F58, sheet 1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 96L |
| A6 | Stationary heater unit | 16L |
| A80 | Intelligent servo module for DIRECT SELECT | 43L |
| A9/1 | AIRMATIC compressor | 77L |
| Code 228 | Stationary heater | 14G |
| Code 427 | 7-speed automatic transmission | 41G |
| Code 489 | AIRMATIC | 72G |
| Code 4U7 | Start/stop voltage dip protection | 3K |
| Code 4U7 | Start/stop voltage dip protection | 38G |
| Code 4U7 | Start/stop voltage dip protection | 18B |
| Code 4U7 | Start/stop voltage dip protection | 4K |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 88G |
| Code 580 | Air conditioning | 58G |
| Code 581 | Automatic air conditioning | 58G |
| Code B03 | ECO start/stop function | 2K |
| Code B03 | ECO start/stop function | 2K |
| Code B03 | ECO start/stop function | 38G |
| Code B03 | ECO start/stop function | 18A |
| Code B08 | Horn (Asia) | 79G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 18A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 51G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 84G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 42G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 84G |
| F32/3 | Engine compartment prefuse box | 4L |
| F32/3 | Engine compartment prefuse box | 20L |
| F32/3f3 | Fuse 3 | 21K |
| F32/3f5 | Fuse 5 | 1K |
| F58 | Engine compartment fuse and relay module | 4A |
| F58 | Engine compartment fuse and relay module | 14A |
| F58 | Engine compartment fuse and relay module | 30A |
| F58 | Engine compartment fuse and relay module | 23A |
| F58 | Engine compartment fuse and relay module | 37A |
| F58 | Engine compartment fuse and relay module | 46A |
| F58 | Engine compartment fuse and relay module | 53A |
| F58 | Engine compartment fuse and relay module | 61A |
| F58 | Engine compartment fuse and relay module | 71A |
| F58 | Engine compartment fuse and relay module | 79A |
| F58 | Engine compartment fuse and relay module | 91A |
| F58 | Engine compartment fuse and relay module | 84A |
| F58f202 | Fuse 202 | 15A |
| F58f203 | Fuse 203 | 90A |
| F58f204 | Fuse 204 | 85A |
| F58f205 | Fuse 205 | 13A |
| F58f212 | Fuse 212 | 29A |
| F58f221 | Fuse 221 | 87A |
| F58f232 | Fuse 232 | 51A |
| F58f235 | Fuse 235 | 62A |
| F58f237 | Fuse 237 | 43A |
| F58f238 | Fuse 238 | 77A |
| F58f239 | Fuse 239 | 67A |
| F58f240a | Fuse 240a | 25A |
| F58f240b | Fuse 240b | 22A |
| F58kJ | Fanfare horn relay | 10A |
| F58kK | Wiper level 1/2 relay | 69A |
| F58kL | Windshield wiper ON/OFF relay | 66A |
| F58kM | Starter circuit 50 relay | 28A |
| F58kQ | Circuit 15 relay (unlatched) | 21A |
| F58kR | Circuit 15 relay | 12A |
| F58kS | Wiper park position heater relay | 60A |
| F58kT | AIRMATIC relay | 73A |
| H2 | Left fanfare horn | 80L |
| H2/1 | Right fanfare horn | 82L |
| H3/1 | Alarm siren | 90L |
| M1 | Starter | 35L |
| M6/1 | Wiper motor | 70L |
| N10 | SAM control unit | 12L |
| N10 | SAM control unit | 65L |
| N22/7 | Automatic air conditioning control and operating unit | 61L |
| N3/10 | ME-SFI [ME] control unit | 25L |
| N3/9 | CDI control unit | 29L |
| N30/4 | Electronic Stability Program control unit | 86L |
| N51/3 | AIRMATIC control unit | 74L |
| N89 | Transmission oil auxiliary pump control unit | 49L |
| R2/10 | Wiper park heater | 57L |
| R2/10x1 | Wiper park position heater electrical connector | 57J |
| R62 | Voltage dip limiter | 39L |
| U12 | Valid for left-hand drive vehicles | 70G |
| U13 | Valid for right-hand drive vehicles | 70G |
| U259 | Valid for ADS+ | 72G |
| U74 | Valid for diesel engines | 32G |
| W2 | Right front ground point at lamp unit | 4H |
| W2 | Right front ground point at lamp unit | 71H |
| W52/11 | Upper right front longitudinal member ground point | 81G |
| W52/11 | Upper right front longitudinal member ground point | 77H |
| W9 | Left front ground point (at lamp unit) | 57G |
| W9 | Left front ground point (at lamp unit) | 71H |
| X18 | Vehicle interior and harness for taillamp electrical connector | 62H |
| X22/2 | Automatic transmission/intelligent servo module electrical connector | 53H |
| X25/2 | Engine compartment/vehicle interior electrical connector | 60H |
| X25/2 | Engine compartment/vehicle interior electrical connector | 75H |
| X26 | Interior and engine wiring harness electrical connector | 33J |
| X26 | Interior and engine wiring harness electrical connector | 35H |
| X26 | Interior and engine wiring harness electrical connector | 37H |
| X26/31 | Engine/engine compartment electrical connector | 33H |
| Y3/8 | Fully integrated transmission control unit | 46L |
| Y3/8 | Fully integrated transmission control unit | 54L |
| Z7/5 | Circuit 87 connector sleeve | 55H |
