Retrofit Camera - AN54.65-P-0030-02GQ

MODEL 166.0

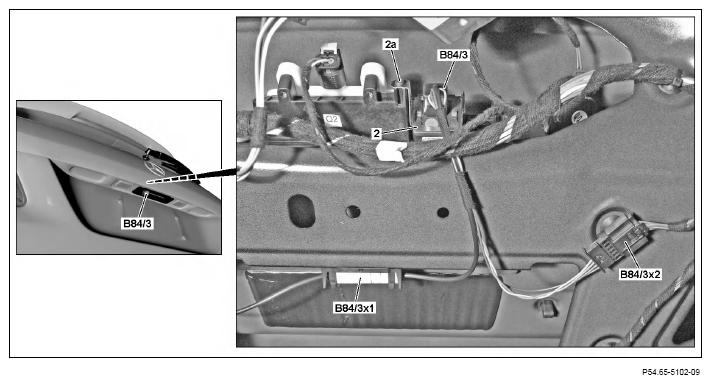

G12079525
  1. Insert reversing camera (B84/3) into handle strip
  2. Position clip (2) on reversing camera (B84/3) and tighten bolt (2a).

IMPORTANT Reversing camera electrical connector 2 (B84/3x2) and reversing camera electrical connector (B84/3x1) are connected at a later stage.
