Remove/Install Charger Feed Socket Flap - AR54.10-P-5110GQA
MODEL 166.063
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch damaged or defective components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers) must not carry out any work on high-voltage on-board electrical systems. | AS54.00-Z-0001-01A | |
| Note on high-voltage on-board electrical system | AH54.00-P-0010-01A | ||
| Evaluation of high-voltage components | AH54.00-P-6500-01SXH | ||
| Remove/install | |||
| 1 | Switch off ignition and keep transmitter key at a location beyond transmitter range (at least 2 m) | ||
| 2.1 | Pull charger cable plug out of vehicle socket | If the charger cable plug is plugged in. | |
| 2.2 | Open socket cover in rear bumper | If the charger cable plug is not plugged in. |
|

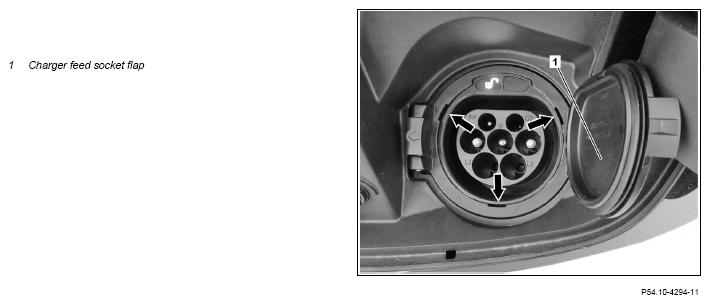

| 3 | Open charger feed socket flap (1) | If the charger cable plug is not plugged in. | |
| 4 | Unclip retaining ring of charger feed socket flap (1) at arrows using a suitable tool | ||
| 5 | Remove charger feed socket flap (1) | ||
| 6 | Install in the reverse order |
