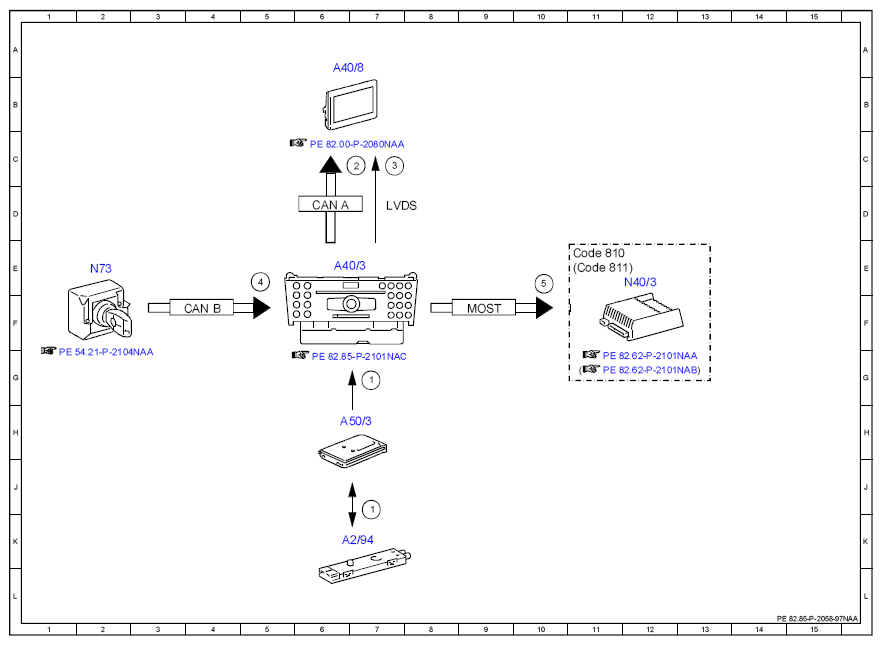

Electrical Function Diagram For Comand ETC - PE82.85-P-2058-97NAA
MODEL 166 up to model year 2013 with CODE 498 (Japanese version) with CODE 527 (COMAND APS with single DVD drive (with navigation)) Dealer option
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Electronic To 11 Collection (ETC), signal | 7J |
| 1 | Electronic To 11 Collection (ETC), signal | 7G |
| 2 | Switch-on request, signal | 7C |
| 3 | Audio/COMAND display, signal | 7C |
| 4 | Circuit 15R, status | 5E |
| 5 | Voice output, signal | 10E |
| A2/94 | ETC/DSRC antenna | 6K |
| A40/3 | COMAND control unit | 6E |
| A40/8 | Audio/COMAND display | 6A |
| A50/3 | Electronic Toll Collection control unit | 6H |
| CAN A | Telematics CAN | 6D |
| CAN B | Interior CAN | 4F |
| Code 810 | Sound system | 11E |
| Code 811 | Extended sound system | 11E |
| LVDS | Low voltage differential signal | 7D |
| MOST | Media Oriented System Transport | 9F |
| N40/3 | Sound system amplifier control unit | 12E |
| N73 | Electronic ignition switch control unit | 2E |
