Retrofit Rear Entertainment Wiring Harness - AZ82.60-P-0015-02GQ

MODEL 166.0/8

without CODE 866 (Preinstallation for rear entertainment system) Rear Seat Entertainment system with two screens

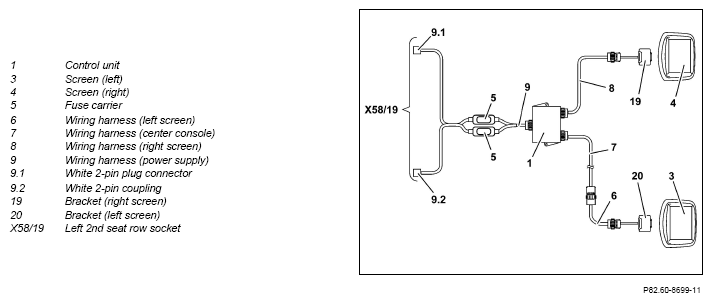

Connection scheme

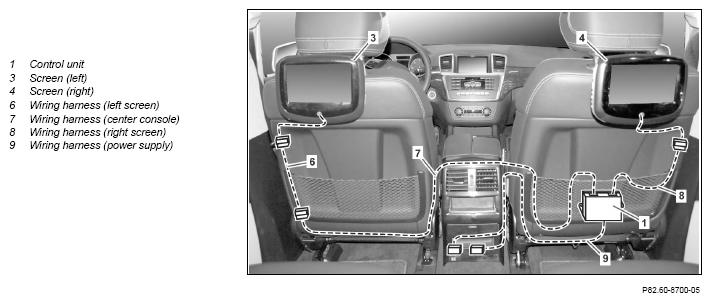

Routing diagram

Ensure that the wiring harnesses are not damaged by chafing or pinching.

Otherwise the corresponding wiring harness must be replaced.

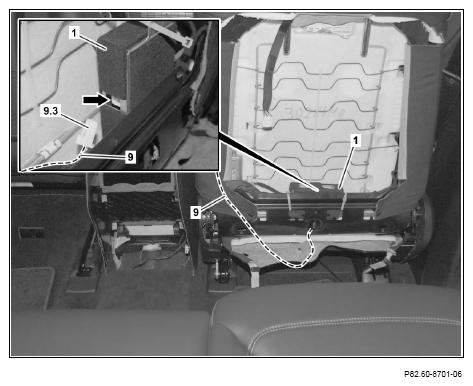

1. Connect white 8-pin connector (9.3) of wiring harness (9) to control unit (1) (arrow).
2. Fix control unit (1) to backrest frame using cable ties.
3. Route wiring harness (9) along seat cushion frame beneath backrest covering into front passenger footwell.
4. Fix wiring harness (9) in place at seat cushion frame with cable ties.

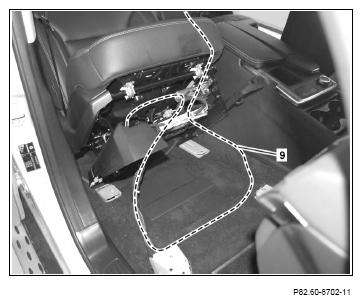

5. Route wiring harness (9) of seat cushion frame along existing lines beneath floor covering and beneath center console to installation location of left 2nd seat row socket and fix in place.

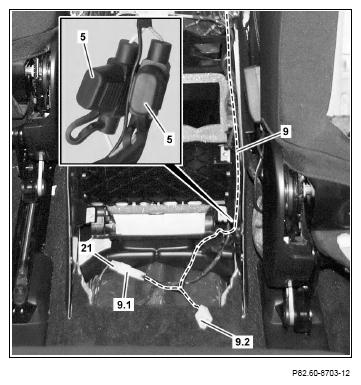

6. Connect white 2-pin plug connector (9.1) of wiring harness (9) to white 2-pin connector (21) of vehicle wiring harness.

   The white 2-pin connector (21) was connected to the left 2nd seat row socket. The white 2-pin connector (9.2) is connected to the left 2nd seat row socket when the center console is installed.

7. Secure fuse carrier (5) with Velcro strip at floor covering below center console.
8. Connect white 16-pin connector (8.1) to control unit (1).

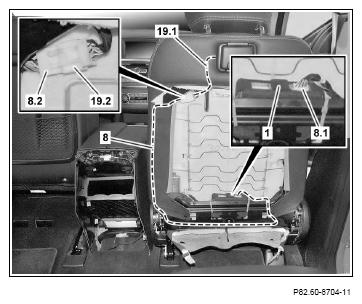

9. Route wiring harness (8) in right backrest frame to wiring harness (19.1) of screen bracket and fix in place with cable ties.
10. Connect white 18-pin plug connector (8.2) to white 16- pin connector (19.2).
11. Wrap felt tape around the connector created and fasten to backrest frame using cable ties.
12. Fix wiring harness (19.1) to backrest frame using cable ties.
13. Connect white 16-pin connector of wiring harness (7) to control unit (1).
14. Route wiring harness (7) along seat cushion frame beneath right backrest covering into front passenger footwell.
15. Route wiring harness (7) of seat cushion frame along existing lines beneath floor covering and below center console into driver footwell and fix in place.
16. Route wiring harness (7) from driver footwell beneath floor covering to left seat cushion frame and fix in place.
17. Route wiring harness (7) from seat cushion frame to backrest frame fix in place.
18. Connect white 18-pin plug (7.2) to white 16-pin connector (6.3).
19. Wrap felt tape around the connector created and fasten to backrest frame using cable ties.
20. Fix wiring harness (6) to backrest frame using cable ties.

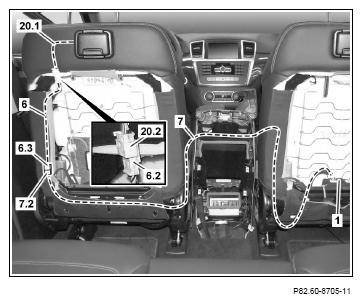

21. Connect white 16-pin connector (6.2) of wiring harness (6) to white 18-pin plug (20.2) of wiring harness (20.1).
22. Wrap felt tape around the connector created and fasten to backrest frame using cable ties.
