Retrofit Incar Hotspot Wiring Harness - AZ82.80-P-0002-01GQA

MODEL 166.0 (except 166.074)

with CODE 386 (Comfort telephony)

with CODE 512 (COMAND APS with DVD changer)

without CODE 228 (Auxiliary heater)

without CODE 460 (Canada version)

without CODE 494 (US version)

without CODE 498 (Japanese version)

without CODE 830 (China version)

MODEL 166.0 (except 166.074)

with CODE 386 (Comfort telephony)

with CODE 527 (COMAND APS with single DVD drive (with navigation))

without CODE 228 (Auxiliary heater)

without CODE 460 (Canada version)

without CODE 494 (US version)

without CODE 498 (Japanese version)

without CODE 830 (China version)

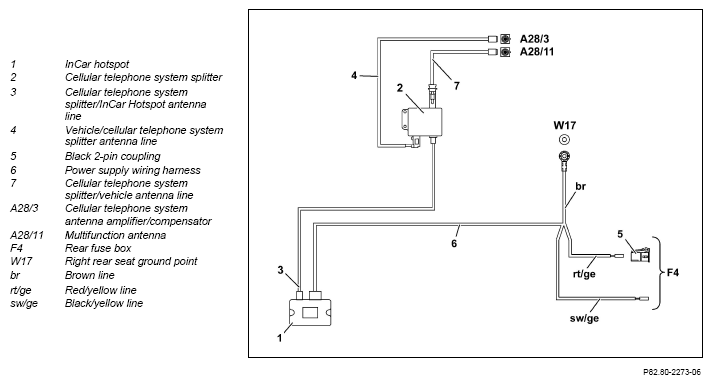

Connection scheme

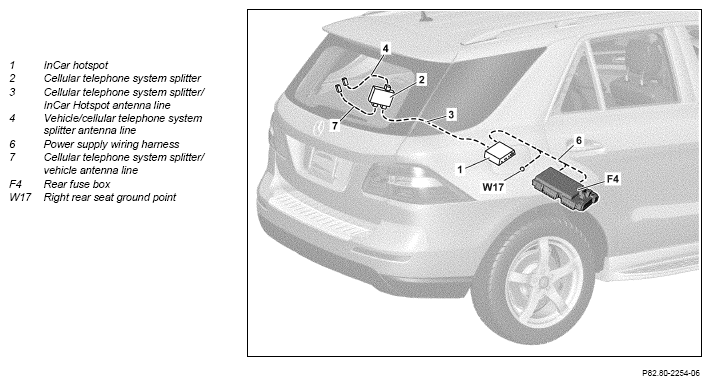

Routing diagram

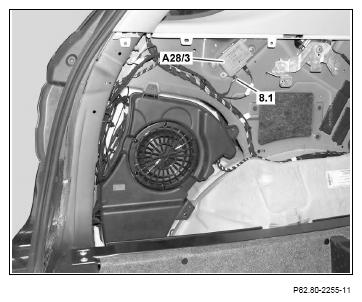

1. Disconnect black 1-pin connector (8.1) from antenna amplifier/cellular telephone system compensator (A28/3).

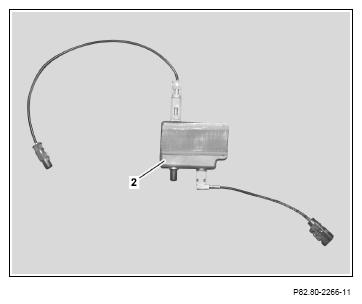

2. Affix Velcro strip to back of cellular telephone system splitter (2).
3. Detach backing film of Velcro strip and stick cellular telephone system splitter (2) onto inside of left rear sidewall.

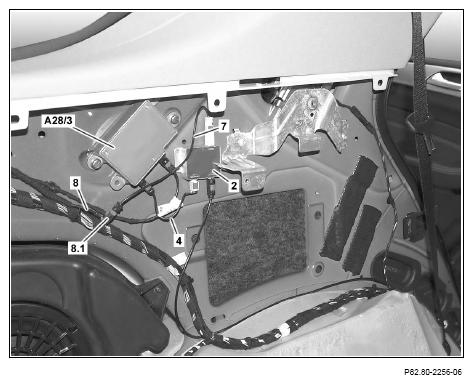

4. Connect vehicle/cellular telephone system splitter antenna line (4) to antenna amplifier/cellular telephone system compensator (A28/3).
5. Connect cellular telephone system splitter/vehicle antenna line (7) to the previously disconnected black 1-pin connector (8.1) of the vehicle wiring harness (8).
6. Fasten connector using felt tape to inside of left rear sidewall.

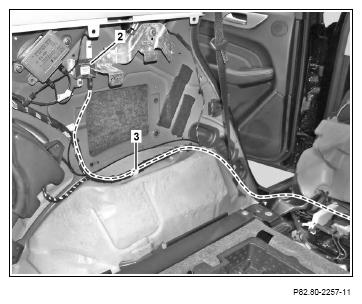

7. Route cellular telephone system splitter/InCar Hotspot antenna line (3) from InCar Hotspot along existing lines to the cellular telephone system splitter (2) and fix in place with cable ties.

   Use felt tape to protect and fix cellular telephone system splitter/InCar Hotspot antenna line (3) in body edge area.

   Otherwise the antenna line for the cellular telephone system splitter/InCar Hotspot (3) may suffer from chafing.

8. Connect cellular telephone system splitter/InCar Hotspot antenna line (3) to the cellular telephone system splitter (2).
9. Connect white connector of wiring harness for power supply (6) to InCar Hotspot (1).

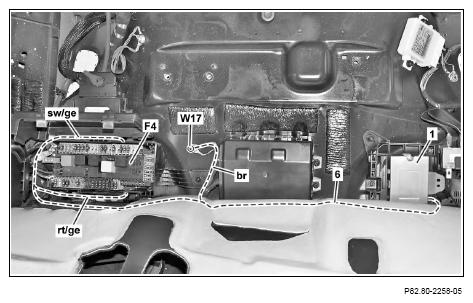

10. Route brown line (BN) of wiring harness for power supply (6) from InCar Hotspot (1) to ground for right rear seat (W17) and connect.

    Strap down extended lengths of brown line (BN). Use felt tape to fasten power supply wiring harness (6) in place.

11. Open covering for rear fuse box (F4).
12. Route red/yellow line (RD/YE) and black/yellow line (BK/YE) of power supply wiring harness (6) along existing lines from InCar Hotspot (1) to rear fuse box (F4) and fix in place with cable ties.

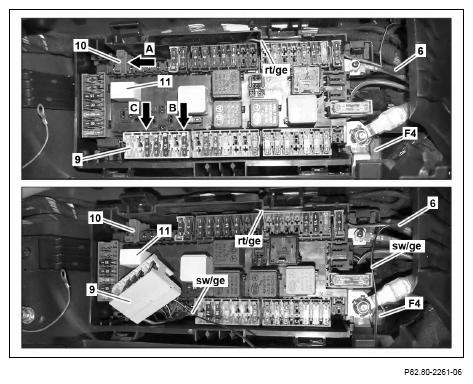

13. Unclip yellow 7-pin fuse carrier (9) from rear fuse box (F4) and connect black/yellow line (BK/YE) of power supply wiring harness (6) to the fuse slot F4/f134 (arrow C) or fuse slot F4/f138 (arrow B).

    The fuse slot F4/f134 (arrow C) and fuse slot F4/f138 (arrow B) are marked accordingly on the yellow 7-pin fuse carrier (9).

14. Insert fuse into just installed fuse slot.

    The fuse rating is 7, 5 A.

15. Clip red/yellow line (RD/YE) of power supply wiring harness (6) with red fuse carrier (10) in fuse carrier slot F4/f122 (arrow A) of rear fuse box (F4).

    The fuse carrier slot F4/f122 (arrow A) is marked accordingly on the rear fuse box (F4).

16. Insert fuse into red fuse carrier (10).

    The fuse rating is 7, 5 A.

17. Insert jumper (11) for fuse F4/f122 into rear fuse box (F4).

    The slot for the jumper (11) is marked on the rear fuse box (F4) with "I".

18. Close covering for rear fuse box (F4).
