Install Stator Of Electric Machine - AR08.10-P-0014-01EH

TRANSMISSION 724.2

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Install

1. Transmission 724.2

   with code ME04 (Mild hybrid drive)

   with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))

   with code ME06 (Hybrid drive 60 kW variant (incl. plugin))

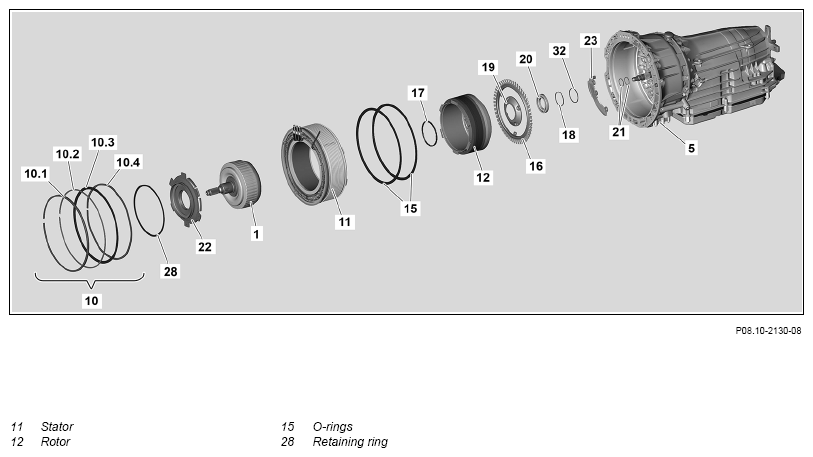

   Generally replace O-rings (15) on stator (11) and coat with Coat vaseline.

2. Transmission 724.2

   with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))

   with code ME06 (Hybrid drive 60 kW variant (incl. plugin))

   Introduce inner guide (8.10) at the rotor (12) and mount retaining ring (28).

3. Transmission 724.2

   with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))

   with code ME06 (Hybrid drive 60 kW variant (incl. plugin))

   Mount pilot bushing (8.11) on inner guide (8.10).

4. Transmission 724.2

   with code ME04 (Mild hybrid drive)

   with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))

   with code ME06 (Hybrid drive 60 kW variant (incl. plugin))

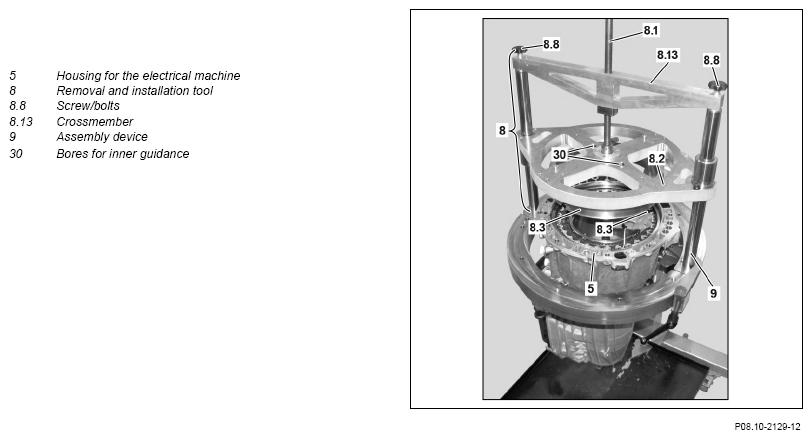

   Mount removal and installation tool (8) with cross bridge (8.13) together with the attached stator (11) on assembly device (9) and tighten screw/bolts (8.8).

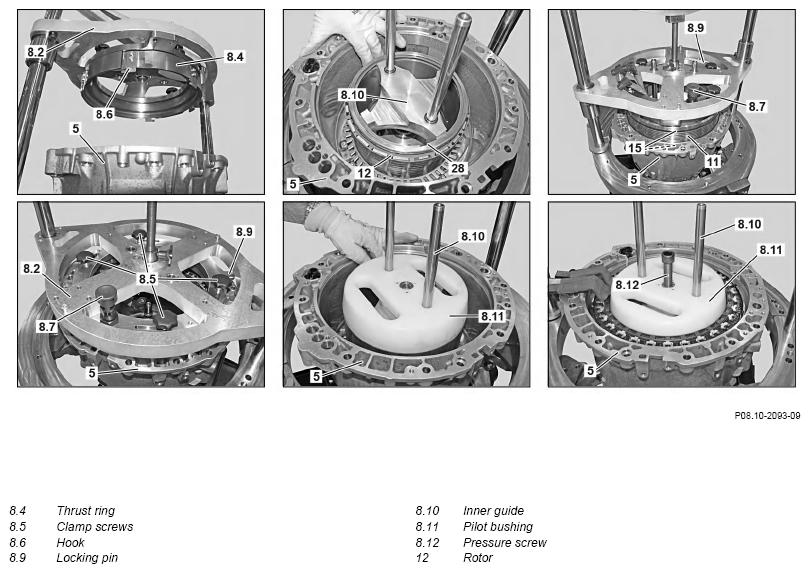

5. Turn rotor (12) with inner guide (8.10) until this is flush with the bores for inner guide (30), in doing so lower the removal and installation tool (8) slowly, until the inner guide (8.10) engages in the bores for inner guide (30). Lower the removal and installation tool (8) until the stator (11) touches in electric machine housing (5) below and then raise the removal and installation tool (8) somewhat so that the thrust ring (8.4) is unstressed.
6. Unfasten clamp screws (8.5), unlock locking pin (8.9), lift up and lock thrust ring (8.4) counterclockwise.
7. Extend removal and installation tool (8) from stator (11) and detach.
8. Transmission 724.2

   with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))

   with code ME06 (Hybrid drive 60 kW variant (incl. plugin))

   Screw in pressure screw (8.12) and remove pilot bushing (8.11).

9. Remove retaining ring (28) on rotor (12) and remove inner guide (8.10).

   For rotor (12) with a plugged in cover.

10. Replace retaining ring (28) on rotor (12).
