Connect/Disconnect Testing Unit At Brake Booster - AR43.10-P-0024-01GZ

MODEL 164, 166, 292

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

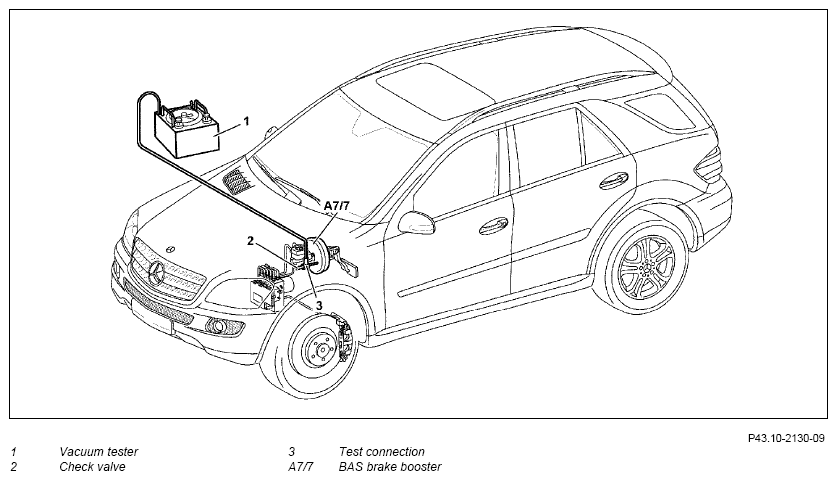

Show on model 164.1

Connecting

1. Operate brake pedal several times.

   In order to reduce the vacuum in the BAS brake booster (A7/7).

2. Disconnect vacuum line with check valve (2) from BAS Disconnect brake booster (A7/7).
3. Mount test connection (3) between BAS brake booster (A7/7) and vacuum line with check valve (2).

   Pay attention to manufacturer's operating instructions.

   Otherwise measurement errors can occur.

4. Connect vacuum tester (1) to test connection (3).

   Disconnect

5. Disconnect in reverse order.
