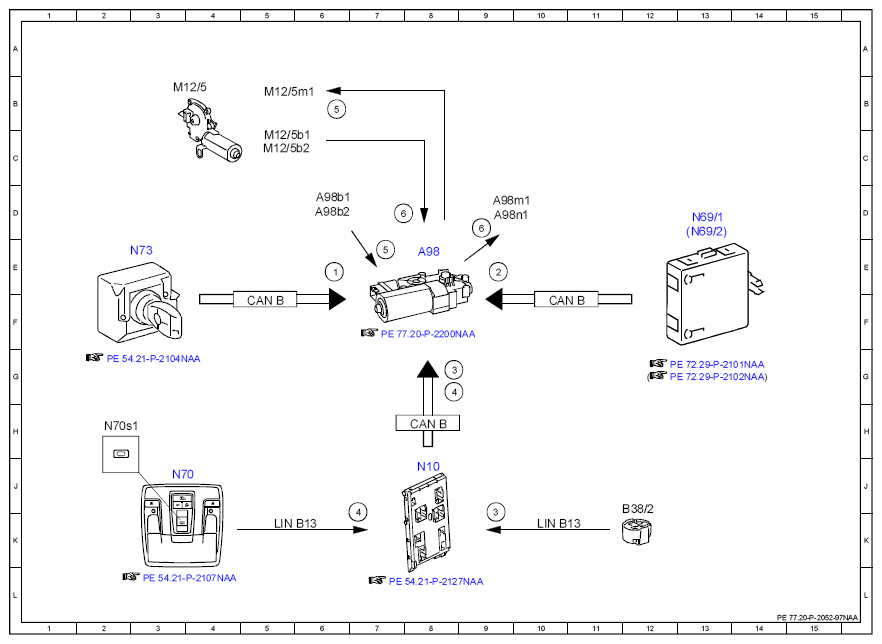

Function Schematic For Electric Panoramic Sliding Roof - PE77.20-P-2052-97NAA
MODEL 166 up to model year 2016 with CODE 413 (Panoramic glass roof with top sliding roof)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 6E |
| 2 | Door rotary tumbler switch, status | 9E |
| 3 | Rain/light sensor, status | 8G |
| 3 | Rain/light sensor, status | 9K |
| 4 | Panoramic sliding roof switch, status | 8G |
| 4 | Panoramic sliding roof switch, status | 7K |
| 5 | Panoramic sliding roof roller sun blind drive unit, actuation | 6B |
| 5 | Panoramic sliding roof roller sun blind drive unit, actuation | 7E |
| 6 | Panoramic sliding roof roller sun blind drive unit, signal | 7D |
| 6 | Panoramic sliding roof roller sun blind drive unit, signal | 9D |
| A98 | Panoramic sliding roof control module | 8E |
| A98b1 | Hall sensor 1, panoramic sliding roof | 6D |
| A98b2 | Hall sensor 2, panoramic sliding roof | 6D |
| A98m1 | Panoramic sliding roof motor | 9D |
| A98n1 | Panoramic sliding roof control unit | 9D |
| B38/2 | Rain/light sensor | 12K |
| CAN B | Interior CAN | 8H |
| CAN B | Interior CAN | 5F |
| CAN B | Interior CAN | 10F |
| LIN B13 | Roof LIN | 10K |
| LIN B13 | Roof LIN | 5K |
| M12/5 | Panoramic sliding roof roller sun blind drive unit | 3B |
| M12/5b1 | Hall sensor 1, panoramic sliding roof roller sun blind | 5C |
| M12/5b2 | Hall sensor 2, panoramic sliding roof roller sun blind | 5C |
| M12/5m1 | Panoramic sliding roof roller sun blind motor | 5B |
| N10 | SAM control unit | 8J |
| N69/1 | Left front door control unit | 13D |
| N69/2 | Right front door control unit | 13D |
| N70 | Overhead control panel control unit | 3J |
| N70s1 | Sliding roof switch | 2H |
| N73 | Electronic ignition switch control unit | 2E |
