Remove/Install Motor For Roller Sun Blind On Panoramic Sliding Roof - AR77.21-P-0490GQ
MODEL 166 with CODE 413 (Panoramic glass roof with top sliding roof)
| Remove/install | |||
| 1 | Remove paneling from A-pillar | AR68.30-P-4050WX | |
| 2 | Remove front grab handles from roof | AR68.30-P-4330GQ | |
| 3 | Remove sun visors | AR68.60-P-5480GQ | |
| 4 | Remove inside rearview mirror | AR68.40-P-0001GQ | |

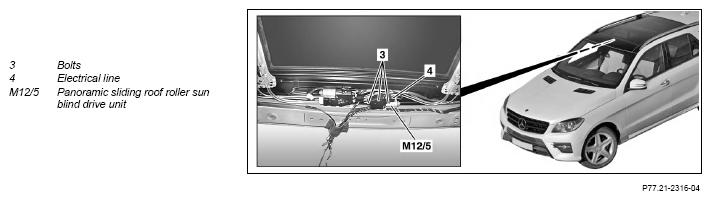

| 5 | Carefully lower headliner in front area | Lower headliner only until bolts (3) and electrical line (4) are accessible. Headliner can be damaged. |
|
| 6 | Disconnect electrical line (4) for panoramic sliding roof roller sun blind drive unit (M12/5) | ||
| 7 | Remove bolt (3) | ||
| 8 | Remove panoramic sliding roof roller sun blind drive unit (M12/5) | ||
| 9 | Install in the reverse order | ||
| 10 | Perform teach-in run for anti-pinch protection and normalization of panoramic sliding roof with diagnostic system | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
