Replace Radiator Support (Without Straightening Bench) - AR62.30-P-1510GQ

MODEL 166, 292

MODIFICATION NOTES

21.9.15

Special tool inserted

Operation step 2

Shown on model 166

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	General information on body repair		AH60.00-N-0001-01A
	General information on MB materials		AH98.00-P-9409-03A
	Remove/install
1	Open engine hood
2	Secure cooler with fastening strap against falling down	Fastening belt	Fig 2
		Adapter for fastening belt	Fig 1
3	Lift vehicle on vehicle lift		AR00.60-P-1000GZ
4	Remove front section of fender liner in right and left front fender		AR88.10-P-1310GQ
5	Remove underfloor paneling		AR61.30-P-1001GQ

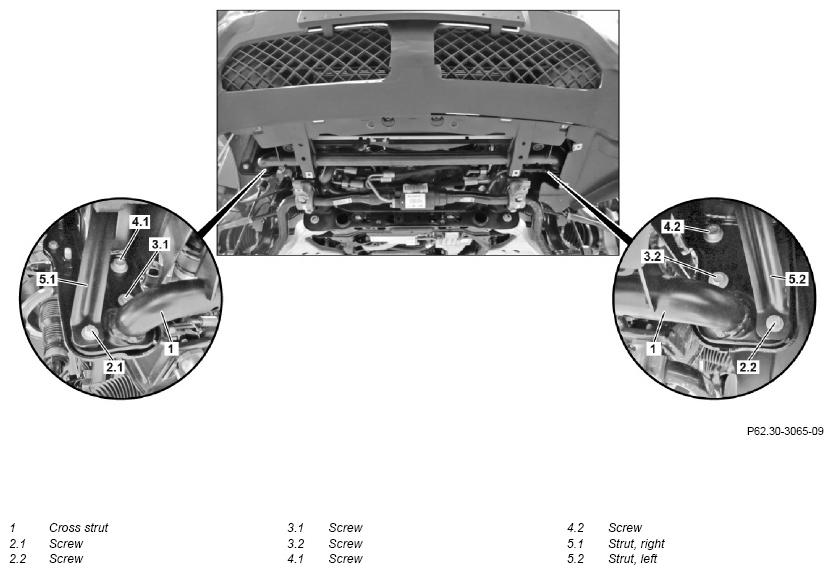

6	Unscrew bolts (2.1, 2.2) and remove spacers sleeves behind struts, on left and right (5.1, 5.2)	Screw/bolt, cross strut to impact absorber	*BA62.30-P-1002-02I
7	Unscrew bolts (4.1, 4.2)	Model 166 Screw/bolt, cross strut to impact absorber	*BA62.30-P-1002-02I
8	Unscrew bolts (3.1, 3.2) and remove cross strut (1)	Screw/bolt, cross strut to impact absorber	*BA62.30-P-1002-02I
9	Install in the reverse order
10	Apply additional cavity preservation		AR97.20-P-1500GQ

FROND END WITH REINFORCEMENT

Number	Designation		Model 166	Model 292
BA62.30-P-1002-02I	Screw/bolt, cross strut to impact absorber	Nm	25	25

Fig 1: Identifying Adapter For Fastening Belt (209 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Fastening Belt (211 589 05 63 00)

Courtesy of MERCEDES-BENZ USA
