Install Side Reinforcement - AR62.30-P-1401-03GQ
MODEL 166, 292

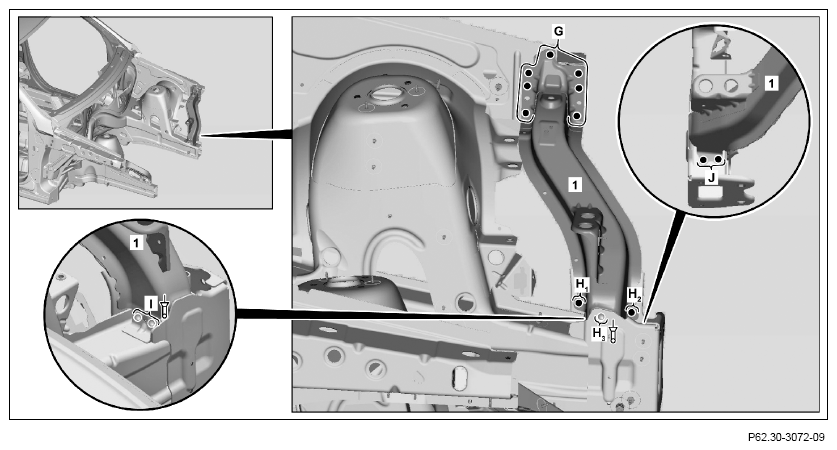

Shown on model 166.0
- Install side reinforcement (1), fit and fix in place.
- Drill Ø 6.7 mm rivet holes in side reinforcement (1) (areas H3 , I and L).
- Remove side reinforcement (1).
- Deburr rivet holes on both sides.
- Coat insides of riveted joints with zinc dust paint.
- Install front reinforcement (1), fit and fix in place.
- Rivet side reinforcement (1) with Ø 6.5 X 12.5 blind rivets (areas H3 , I and L).
- Side reinforcement (1)
(areas G, H 1, H2, J and K).
- Clean weld joints.

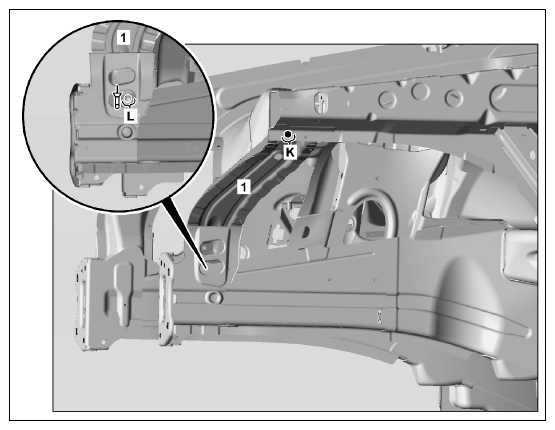

Shown on model 166.0
- Remove shavings and drill chips.
