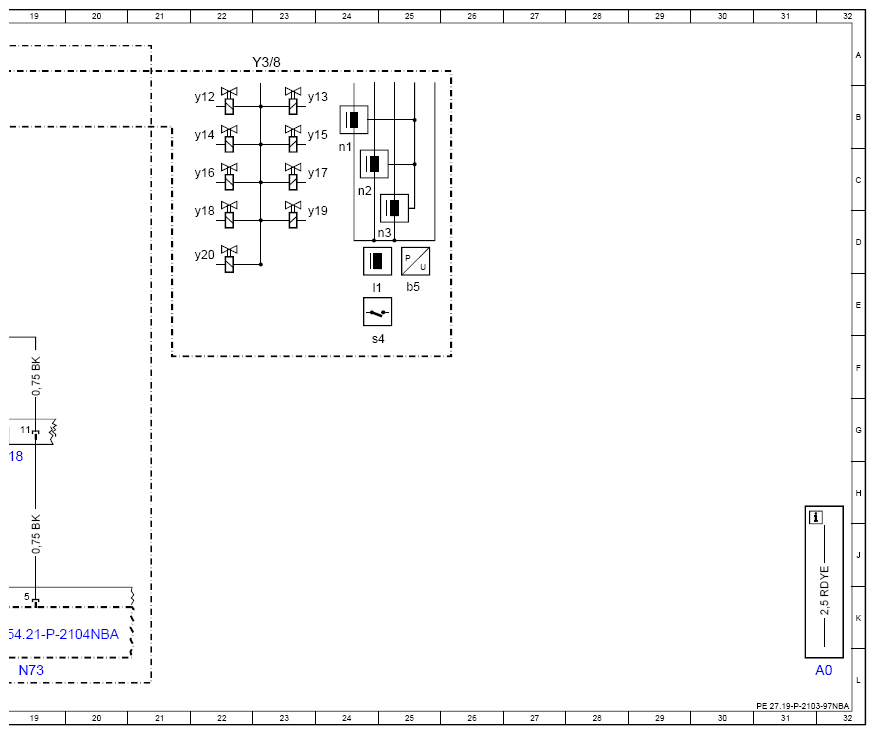

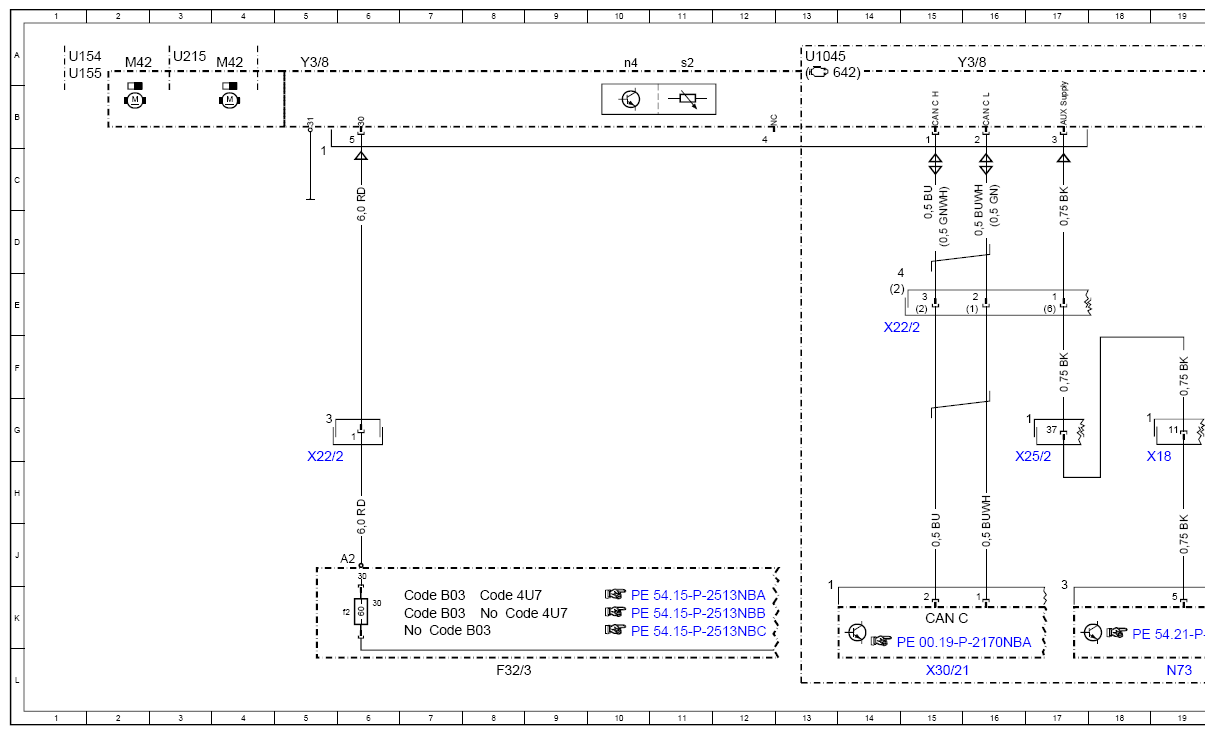

Wiring Diagram For Fully Integrated Transmission Control Unit - PE27.19-P-2103-97NBA
TRANSMISSION 725.0 in MODEL 166 as of model year 2016 Control unit Y3/8
TRANSMISSION 725.0 in MODEL 292 Control unit Y3/8
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| CAN C | Drive train CAN | 15K |
| Code 4U7 | Start/stop voltage dip protection | 8K |
| Code 4U7 | Start/stop voltage dip protection | 8K |
| Code B03 | ECO start/stop function | 7K |
| Code B03 | ECO start/stop function | 7K |
| F32/3 | Engine compartment prefuse box | 8L |
| F32/3f2 | Fuse 2 | 6K |
| M42 | Electric oil pump | 4A |
| N73 | Electronic ignition switch control unit | 19L |
| U1045 | Not valid for diesel engine 642 | 13A |
| U154 | Valid for 166.0 | 1A |
| U155 | Valid for 166.8 | 1A |
| U215 | Valid for model series 292 | 3A |
| X18 | Vehicle interior and harness for taillamp electrical connector | 19G |
| X22/2 | Automatic transmission/intelligent servo module electrical connector | 5H |
| X22/2 | Automatic transmission/intelligent servo module electrical connector | 15E |
| X25/2 | Engine compartment/vehicle interior electrical connector | 17G |
| X30/21 | Drive train CAN voltage distributor electrical connector | 15L |
| Y3/8 | Fully integrated transmission control unit | 5A |
| Y3/8 | Fully integrated transmission control unit | 16A |
| Y3/8 | Fully integrated transmission control unit | 23A |
| Y3/8b5 | Pressure sensor | 25E |
| Y3/8l1 | Park pawl lift solenoid | 24E |
| Y3/8n1 | Turbine wheel rpm sensor | 24C |
| Y3/8n2 | Internal transmission speed rpm sensor | 24C |
| Y3/8n3 | Output shaft rpm sensor | 25D |
| Y3/8n4 | Fully integrated transmission control unit | 10A |
| Y3/8s2 | Transmission oil temperature sensor | 11A |
| Y3/8s4 | Park pawl position sensor | 24F |
| Y3/8y12 | Lubricating pressure solenoid | 22B |
| Y3/8y13 | K81 clutch control solenoid | 23B |
| Y3/8y14 | K38 clutch control solenoid | 22B |
| Y3/8y15 | K27 clutch control solenoid | 23B |
| Y3/8y16 | B08 multidisk brake control solenoid | 22C |
| Y3/8y17 | B05 multidisk brake control solenoid | 23C |
| Y3/8y18 | B06 multidisk brake control solenoid | 22D |
| Y3/8y19 | Working pressure solenoid | 23D |
| Y3/8y20 | Torque converter lockup clutch solenoid | 22D |
