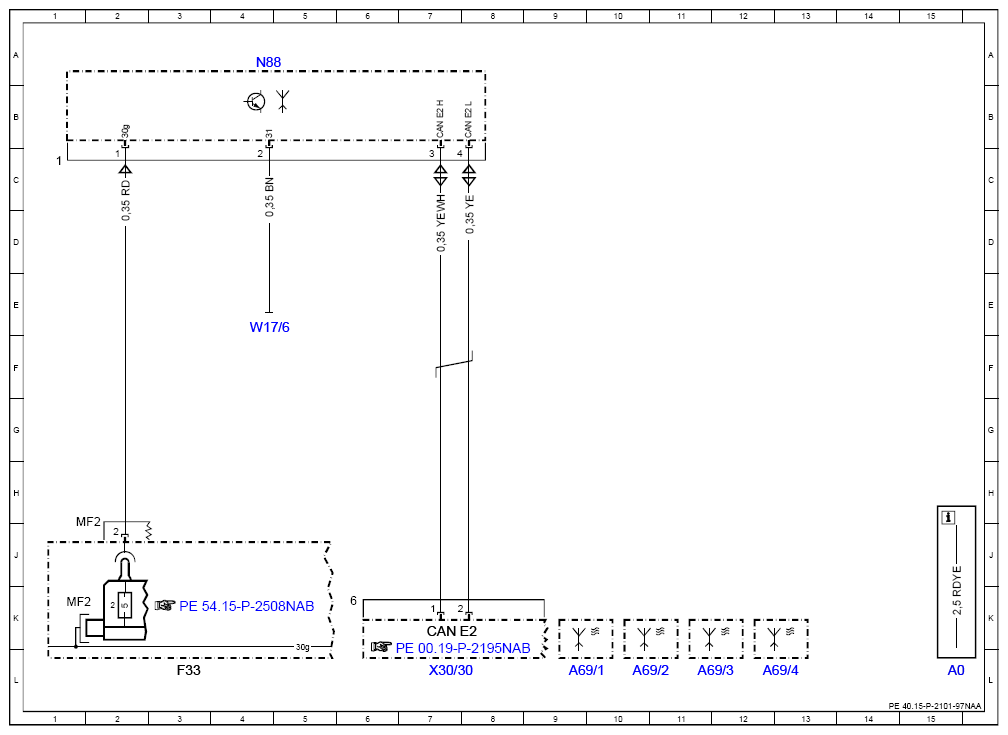

Wiring Diagram For Tire Pressure Monitor Control Unit - PE40.15-P-2101-97NAA
MODEL 166 up to model year 2016 with CODE 475 (Tire pressure monitoring system) Control unit N88
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A69/1 | Left front tire pressure sensor | 9L |
| A69/2 | Right front tire pressure sensor | 10L |
| A69/3 | Left rear tire pressure sensor | 11L |
| A69/4 | Right rear tire pressure sensor | 12L |
| CAN E2 | Chassis CAN 2 | 7K |
| F33 | Battery compartment prefuse box | 3L |
| F33MF2 | Multiple fuse 2 | 1K |
| N88 | Tire pressure monitor control unit | 4A |
| W17/6 | Rear seat crossmember ground point | 4E |
| X30/30 | Vehicle floor chassis CAN E2 potential distributor electrical connector | 7L |
