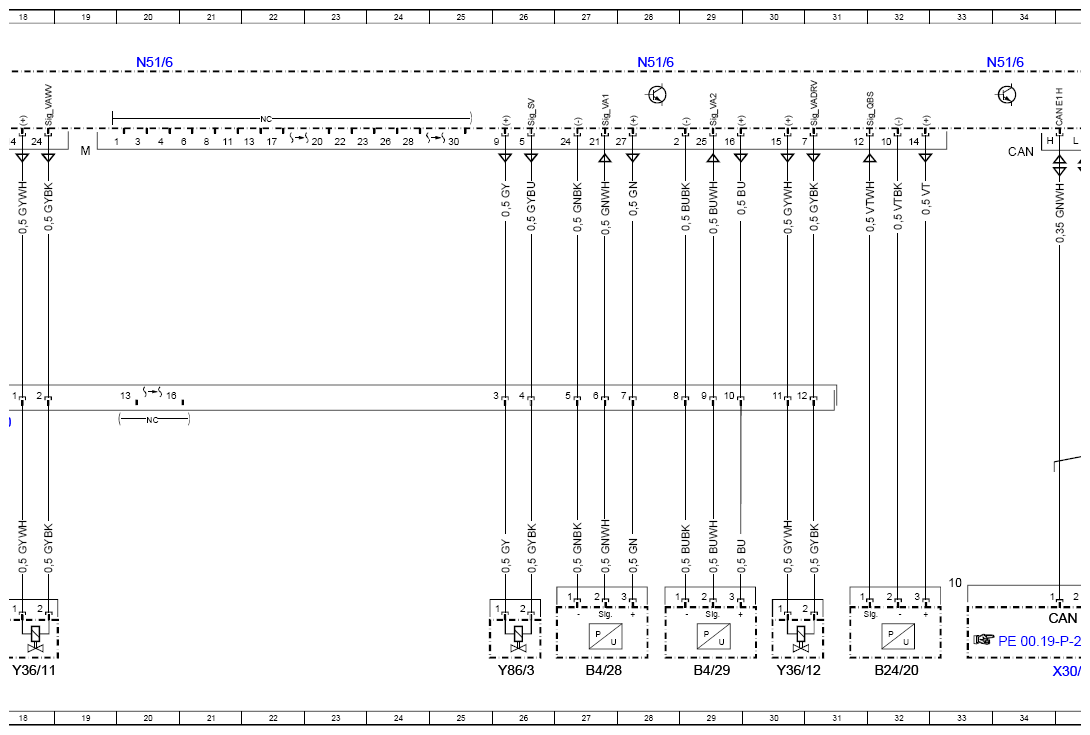

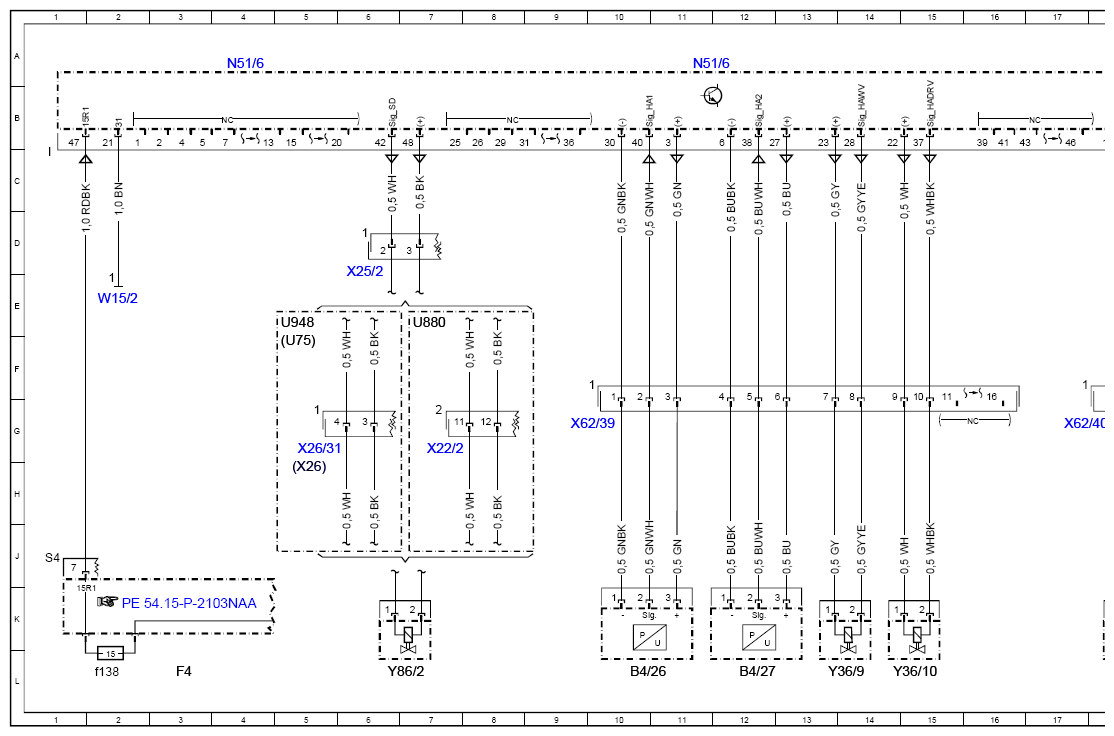

Wiring Diagram For Active Roll Stabilization Control Unit - PE32.34-P-2102-97NAA
MODEL 166 up to model year 2016 with CODE 468 (ACTIVE CURVE SYSTEM) Control unit N51/6
| Code: | Designation: | Position |
|---|---|---|
| A0 | Color code key | 40L |
| B24/20 | Active roll stabilization lateral acceleration sensor | 32L |
| B4/26 | Active roll stabilization rear axle pressure sensor 1 | 10L |
| B4/27 | Active roll stabilization rear axle pressure sensor 2 | 12L |
| B4/28 | Active roll stabilization front axle pressure sensor 1 | 27L |
| B4/29 | Active roll stabilization front axle pressure sensor 2 | 29L |
| CAN E1 | Chassis CAN 1 | 35K |
| F4 | Rear fuse box | 3L |
| F4f138 | Fuse 138 | 2L |
| N51/6 | Active roll stabilization control unit | 4A |
| N51/6 | Active roll stabilization control unit | 11A |
| N51/6 | Active roll stabilization control unit | 28A |
| N51/6 | Active roll stabilization control unit | 20A |
| N51/6 | Active roll stabilization control unit | 34A |
| U75 | Valid for gasoline engines | 5F |
| U880 | Val id for engine 642 | 7E |
| U948 | Valid for diesel engine 651 | 5E |
| W15/2 | Left footwell ground point | 2E |
| X22/2 | Automatic transmission/intelligent servo module electrical connector | 7G |
| X25/2 | Engine compartment/vehicle interior electrical connector | 6E |
| X26 | Interior and engine wiring harness electrical connector | 5H |
| X26/31 | Engine/engine compartment electrical connector | 5G |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 35L |
| X62/39 | Rear axle Anti Roll System electrical connector | 10G |
| X62/40 | Front axle Anti Roll System electrical connector | 17G |
| Y36/10 | Active roll stabilization rear axle pressure regulating valve | 15L |
| Y36/11 | Active roll stabilization front axle directional control valve | 18L |
| Y36/12 | Active roll stabilization front axle pressure regulating valve | 30L |
| Y36/9 | Active roll stabilization rear axle directional control valve | 13L |
| Y86/2 | Active roll stabilization intake throttle valve | 6L |
| Y86/3 | Active roll stabilization safety valve | 26L |
