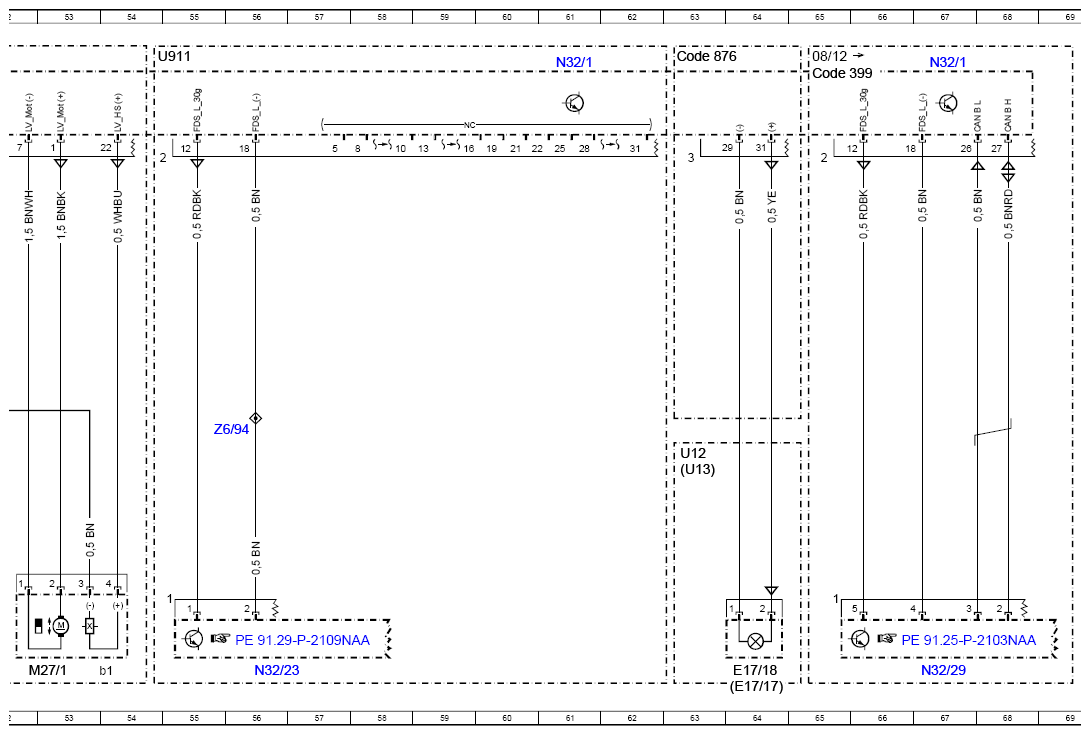

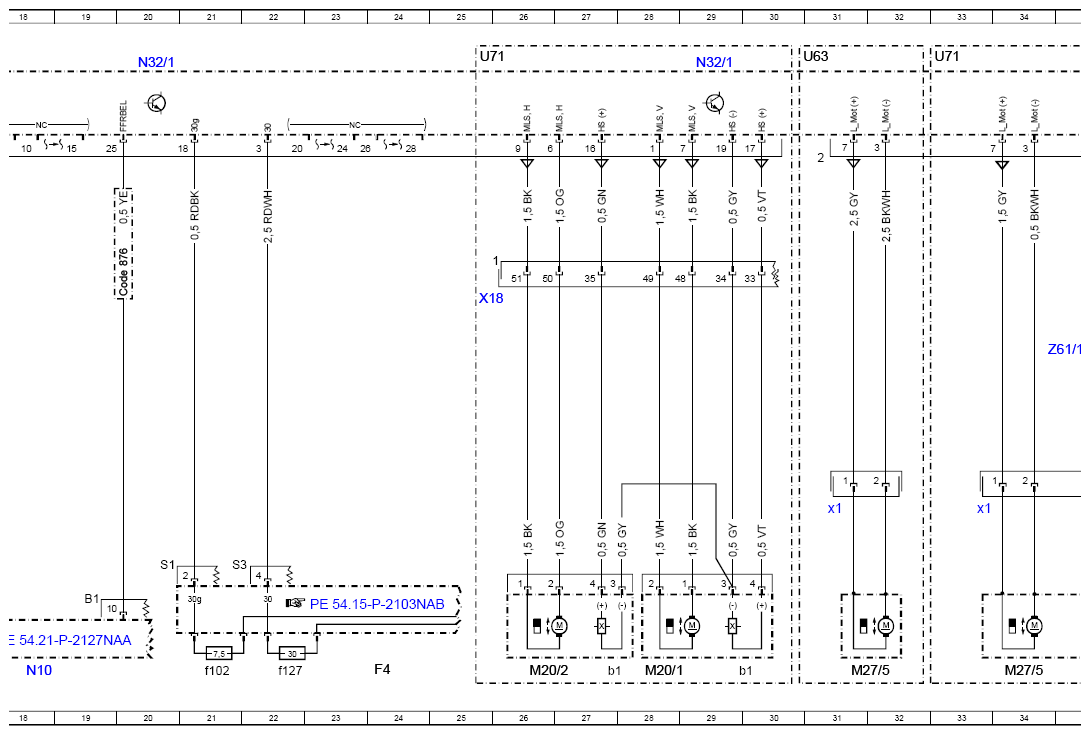

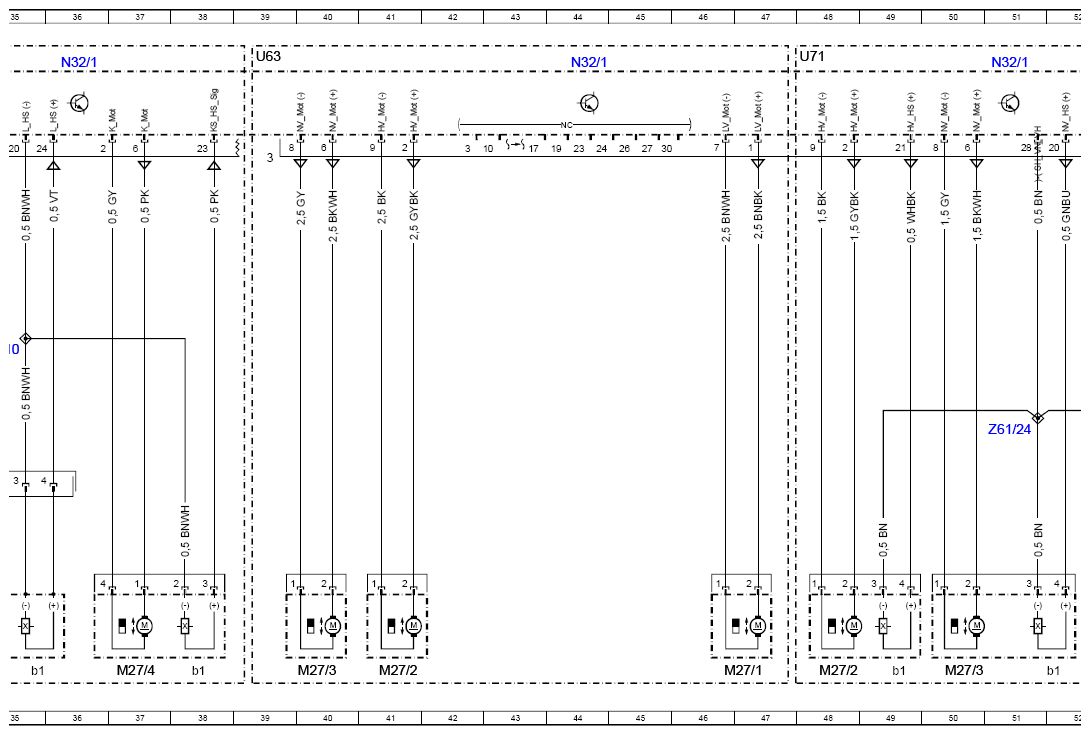

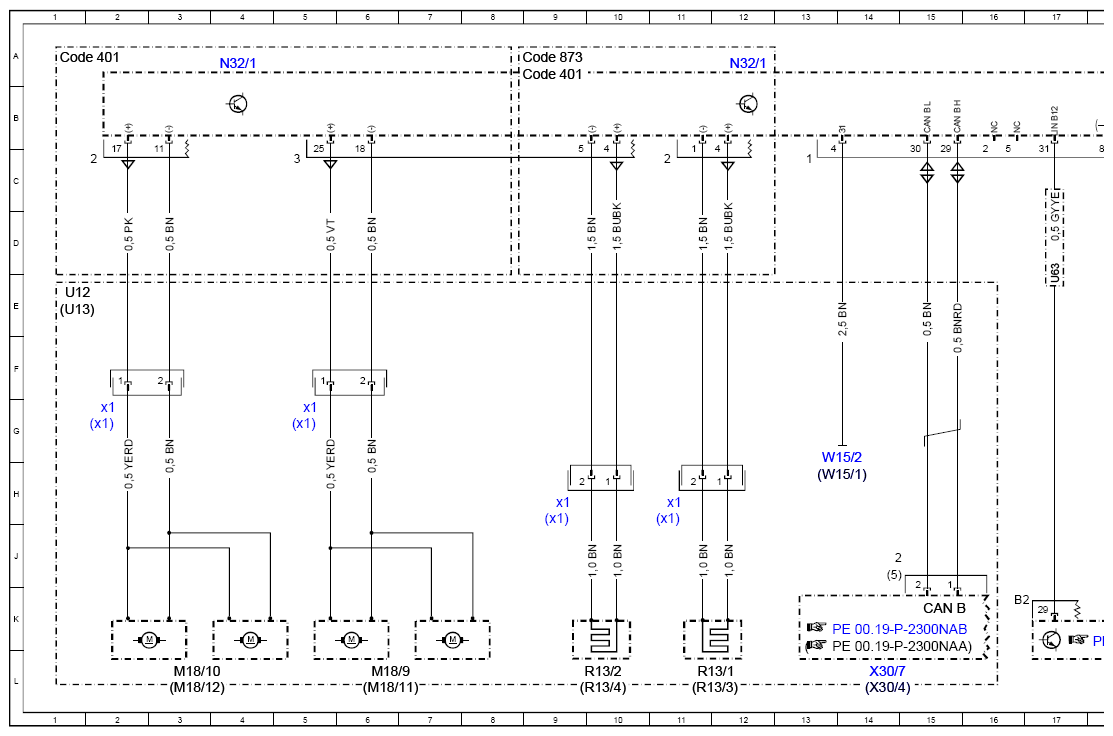

Wiring Diagram Of Driver-Side Seat Control Module - PE91.29-P-2104-97NAA
MODEL 166 up to model year 2016 Control unit N32/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 72L |
| CAN B | Interior CAN | 15K |
| Code 399 | Front multicontour seats with massage function | 65A |
| Code 401 | Front comfort seats, incl. seat heating and seat ventilation | 1A |
| Code 401 | Front comfort seats, incl. seat heating and seat ventilation | 8A |
| Code 873 | Heated seats for driver and front passenger seat | 8A |
| Code 876 | Interior lights package | 63A |
| Code 876 | Interior lights package | 20E |
| E17/17 | Left rear footwell lamp | 64L |
| E17/18 | Right rear footwell lamp | 64L |
| F4 | Rear fuse box | 24L |
| F4f102 | Fuse 102 | 21L |
| F4f127 | Fuse 127 | 22L |
| M18/10 | Left front backrest seat ventilation motors | 3L |
| M18/10x1 | Left front backrest seat ventilation motor electrical connector | 2G |
| M18/11 | Right front seat cushion seat ventilation motors | 6L |
| M18/11x1 | Right front seat cushion seat ventilation motor electrical connector | 5G |
| M18/12 | Right front backrest seat ventilation motors | 3L |
| M18/12x1 | Right front backrest seat ventilation motor electrical connector | 2G |
| M18/9 | Left front seat cushion seat ventilation motors | 6L |
| M18/9x1 | Left front seat cushion seat ventilation motor electrical connector | 5G |
| M20/1 | Steering column in/out adjustment motor | 28L |
| M20/1b1 | Steering column in/out Hall sensor | 29L |
| M20/2 | Steering column up/down adjustment motor | 26L |
| M20/2b1 | Steering column up/down Hall sensor | 27L |
| M27/1 | Driver seat fore/aft adjustment motor | 46L |
| M27/1 | Driver seat fore/aft adjustment motor | 53L |
| M27/1b1 | Seat fore/aft adjustment Hall sensor, driver seat | 54L |
| M27/2 | Driver seat height adjustment motor | 41L |
| M27/2 | Driver seat height adjustment motor | 48L |
| M27/2b1 | Height adjustment Hall sensor, driver seat | 49L |
| M27/3 | Driver seat inclination adjustment motor | 40L |
| M27/3 | Driver seat inclination adjustment motor | 50L |
| M27/3b1 | Inclination adjustment Hall sensor, driver seat | 52L |
| M27/4 | Driver seat head restraint adjustment motor | 37L |
| M27/4b1 | Head restraint adjustment Hall sensor, driver seat | 38L |
| M27/5 | Driver seat backrest inclination adjustment motor | 34L |
| M27/5 | Driver seat backrest inclination adjustment motor | 31L |
| M27/5b1 | Backrest inclination Hall sensor, driver seat | 35L |
| M27/5x1 | Seat backrest inclination adjustment motor electrical connector, driver seat | 33H |
| M27/5x1 | Seat backrest inclination adjustment motor electrical connector, driver seat | 31H |
| N10 | SAM control unit | 18L |
| N32/1 | Driver seat control unit | 20A |
| N32/1 | Driver seat control unit | 29A |
| N32/1 | Driver seat control unit | 44A |
| N32/1 | Driver seat control unit | 51A |
| N32/1 | Driver seat control unit | 61A |
| N32/1 | Driver seat control unit | 67A |
| N32/1 | Driver seat control unit | 36A |
| N32/1 | Driver seat control unit | 12A |
| N32/1 | Driver seat control unit | 4A |
| N32/23 | Driver seat lumbar support adjustment control unit | 56L |
| N32/29 | Driver multicontour seat control unit | 67L |
| R13/1 | Left front seat sitting surface heated cushion | 11L |
| R13/1x1 | Left front seat sitting surface heater pad electrical connector | 11H |
| R13/2 | Left front backrest heated cushion | 10L |
| R13/2x1 | Left front backrest heater pad electrical connector | 9H |
| R13/3 | Right front seat sitting surface heated cushion | 11L |
| R13/3x1 | Right front seat sitting surface heater pad electrical connector | 9H |
| R13/4 | Right front backrest heated cushion | 10L |
| R13/4x1 | Right front backrest heater pad electrical connector | 11H |
| U12 | Valid for left-hand drive vehicles | 63G |
| U12 | Valid for left-hand drive vehicles | 1E |
| U13 | Valid for right-hand drive vehicles | 63H |
| U13 | Valid for right-hand drive vehicles | 1E |
| U63 | Valid for seat adjustment without memory function | 30A |
| U63 | Valid for seat adjustment without memory function | 39A |
| U63 | Valid for seat adjustment without memory function | 17E |
| U71 | Valid for fully electric seat adjustment with memory function | 25A |
| U71 | Valid for fully electric seat adjustment with memory function | 48A |
| U71 | Valid for fully electric seat adjustment with memory function | 33A |
| U911 | Valid for lumbar support | 54A |
| W15/1 | Right footwell ground point | 13H |
| W15/2 | Left footwell ground point | 13H |
| X18 | Vehicle interior and harness for taillamp electrical connector | 26E |
| X30/4 | Right potential distributor electrical connector (CAN) | 14L |
| X30/7 | Left potential distributor electrical connector (CAN) | 14L |
| Z6/94 | Driver seat circuit 31 connector sleeve | 56G |
| Z61/10 | Driver seat backrest and head restraint adjustment motor connector sleeve | 35F |
| Z61/24 | Driver Hall sensor ground connector sleeve | 51G |
