Parking Space Detection, Basic Function - GF54.65-P-1001A

MODEL ALL (CAR) with CODE 235 (Active Parking Assist with PARKTRONIC)

MODEL ALL (CAR) with CODE P44 (Parking package)

MODEL ALL (CAR) with CODE P47 (Parking Pilot with 360° camera)

Overview

This document contains the following information:

General
Function requirements
Parking space search/recognition
Display and selection of possible parking spaces

General

The parking space detection function is used for simple location of suitable parking spaces. All the detected parking spaces are shown in the multimedia display. Parking space detection can be switched on and off manually.

Function requirements

Engine running or drive train operational
Vehicle speed below 36 km/h
No anti-lock brake system (ABS) and Electronic Stability Program (ESP®) intervention during last 5 s

Parking space search/recognition

The parking space search/detection function is realized through the external distance sensors in the front bumper. These monitor the area to the left and right of the vehicle and therefore have a larger range than the other distance sensors. When a parking space is detected, the driver can activate the automatic parking space entry function through the multimedia display. If the function is not started by the driver, the search for a parking space is continued. Basically, suitable parking spaces on both sides of the vehicle are searched for. Parking space detection evaluates the following function-relevant parameters for the parking space search/recognition function:

Drive position
Electric power steering, status
Wheel speeds and direction of rotation
Steering wheel angle
ABS and ESP® status
Trailer recognition (vehicles with trailer hitch)

Display and selection of possible parking spaces

While the parking space search/recognition function is executed, the instrument cluster shows a P symbol (25) and the multimedia display shows any suitable parking spaces. The arrow sign (26, 27) indicates the side of the vehicle where suitable parking spaces have been detected. The parking space and the direction for entering the parking space can be selected freely.

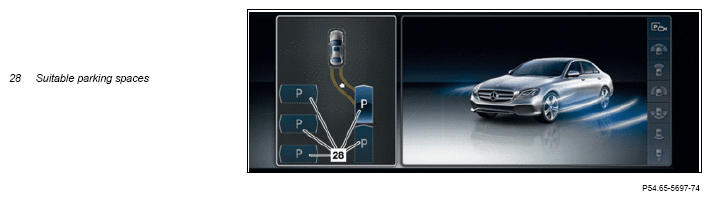

Display of suitable parking spaces on multimedia display

	Subsystems
	Environment monitoring, basic function		GF54.65-P-1000A
