360 Degree Camera Picture Display, Basic Function - GF54.65-P-1004A
MODEL ALL (CAR) with CODE P47 (Parking package with 360-degree camera)
Overview
This document contains the following information:
- General
- Function requirements
- 360 degree camera image
- Functional restrictions
General
The 360 degree camera system consists of four cameras that are integrated into the vehicle's front end (in the radiator grille) and rear end (in the release handle) as well as in the outside mirror housing. The cameras record the immediate surroundings of the vehicle. The system provides assistance, e.g. when parking or in exits with poor visibility. The 360 degree camera system is operated using the multimedia system.
The driver can choose between various displays.
Function requirements
- Terminal 15 ON
- Vehicle speed below 18 km/h
360 degree camera image

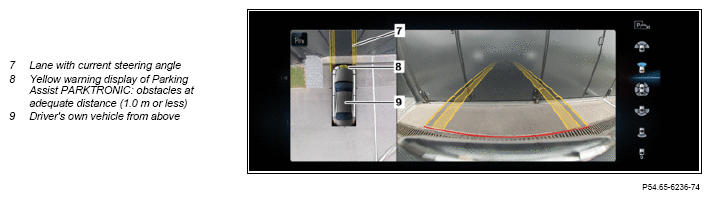

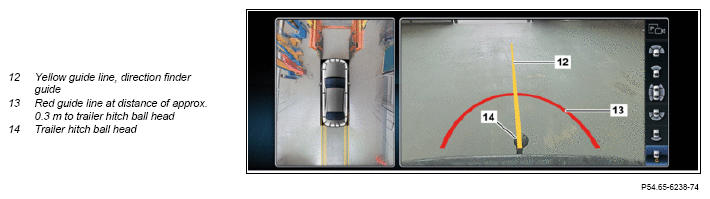

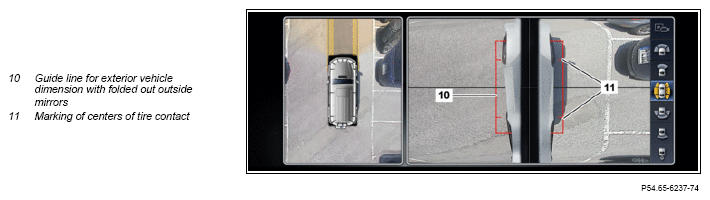

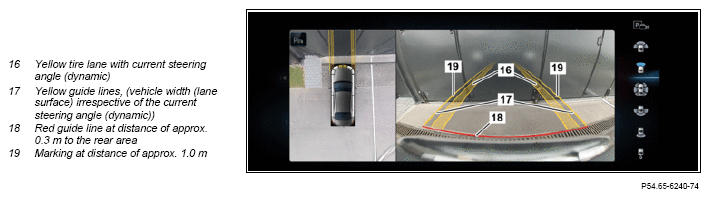

The cameras record the required field of view. The driver is also shown dynamic and static guide lines. These form the vehicle dimensions and driving trajectories (driving paths) based on the steering angle. These displays help the driver, in particular, while maneuvering. Additional elements are displayed here that mark the area at risk at the vehicle corners.
The composite picture made up from the four individual camera pictures of the vehicle surroundings, is shown non the multimedia display while parking or maneuvering. Various angles of vision are shown (e.g. front/rear, trailer mode (vehicles with trailer hitch)). The following camera views can be selected:

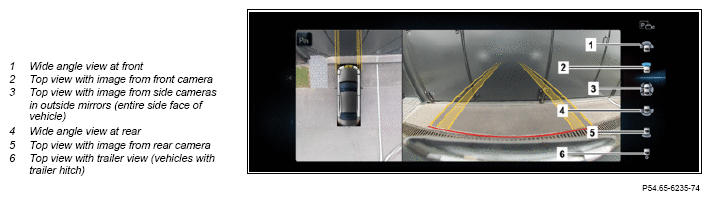

Top view with image from front camera

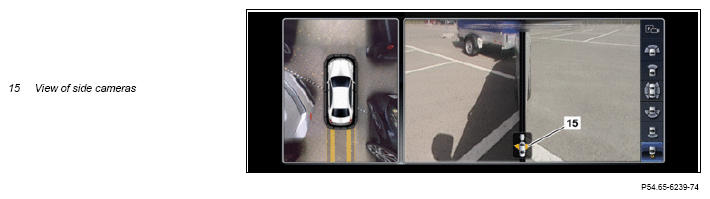

Top view with image from side cameras in outside mirrors (entire side face of vehicle)
Top view with trailer view (vehicles with trailer hitch)
Top view with trailer view and electrical connection made from vehicle to trailer (vehicles with trailer hitch)
Guide lines
The "top view" also displays open doors or an open trunk lid or an open liftgate. The picture data from each affected each camera are hidden.
When the outside mirror housings are folded in (vehicles with electric folding outside mirror) the side areas of the vehicle can no longer be displayed. The corresponding areas are also hidden in this case.
A switch can be made between the views in the multimedia display automatically as well as manually. The view switches to the front and to the rear depending on the engaged gear (vehicles with manual transmission) or from the engaged drive range (vehicles with automatic transmission). Along with automatic selection, the driver can also switch manually between the various detailed views.
Vehicles with air suspension:
The current vehicle level is used as the basis for equalization of the recorded pictures and the ideal display is the calculated.
Functional restrictions
The functions and displays on the 360 degree camera system are limited. Distortion and "blind spots" can occur.
In the "top view", objects outside road level (e.g. vehicles) are displayed with distortion.
Objects in the "Full screen forward/rearward field of view" (front camera and reversing camera) are also shown in distorted form. The assignment of objects in the picture when compared with how they appear in real-life is unusual.
There are different types of "blind spots" depending on the system and model in question. One reason is the camera position over the respective bumper: Here, the camera loses the field of view immediately before and after the vehicle. They are system-related, particularly in the four overlapping areas of the fields of view of the cameras, when calculating a vehicle view as a "top view".
Furthermore, due to the low installation height of the cameras, there are areas where only objects close to the ground can be seen. This means, e.g., that people are not shown above approximately knee height in the "top view". In both cases, however, support is provided by the parking system.
| Function schematics | |||
| 360 degree camera picture display, function schematic | Model 167, 177 with code P47 (Parking package with 360-degree camera) | PE54.65-P-2504-97A | |
| Control units | |||
| Head unit/instrument cluster display cluster, basic function | GF54.30-P-2005A | ||
| Instrument cluster control unit, basic function | Model all (CAR) with code 548 (Connect 20 MID (NTG6)) with code P47 (Parking package with 360-degree camera) Model all (CAR) with code 549 (Connect 20 HIGH (NTG6)) with code P47 (Parking package with 360-degree camera) |
GF54.30-P-9891A | |
| Parking system control unit, basic function | GF54.65-P-9890A | ||
| Head unit/instrument cluster control unit, basic function | Model all (CAR) with code 545 (Connect 5 (NTG6)) with code P47 (Parking package with 360-degree camera) | GF82.85-P-9893A | |
| Components | |||
| 360 degree camera, basic function | GF54.65-P-2003A |
