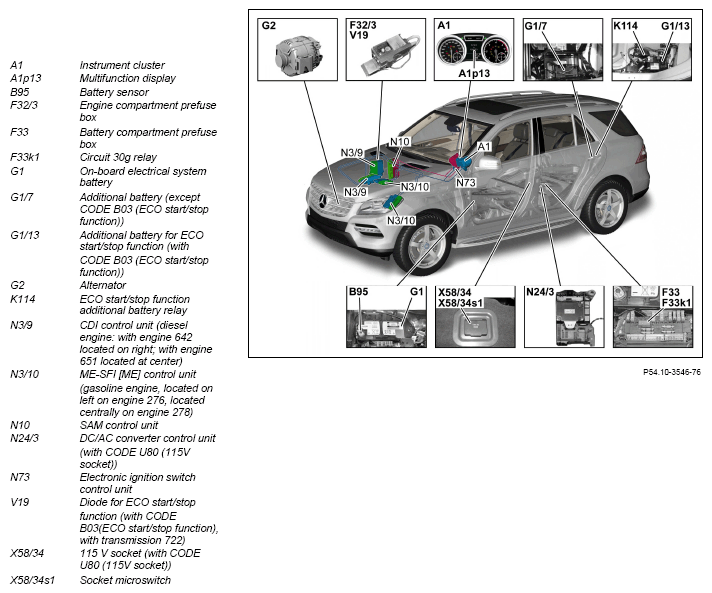

Overview Of Energy Management System Components - GF54.10-P-9990GR

MODEL 166 up to model year 2016

Shows model 166.0

	Component description for instrument cluster	A1	GF54.30-P-6000GR
	Component description for CDI control unit	MODEL 166 with ENGINE 642.8 up to model year 2016 N3/9	GF07.16-P-6000OGR
		MODEL 166 with ENGINE 651.9 up to 2/28/13 up to model year 2014 N3/9	GF07.16-P-6000OLG
		MODEL 166 with ENGINE 651.9 as of 3/1/13 up to model year 2016 N3/9	GF07.16-P-6000OLL
	Component description for ME-SFI (ME) control unit	MODEL 166 with ENGINE 276.8 up to model year 2016 N3/10	GF07.61-P-6000MMU
		MODEL 166 with ENGINE 276.9 up to model year 2016 N3/10	GF07.61-P-6000MMG
		MODEL 166 with ENGINE 157.9, 278.9 up to model year 2016 N3/10	GF07.61-P-6000MMR
	SAM control unit, component description	N10	GF54.21-P-4157GR
	Component description for the electronic ignition lock control unit	N73	GF80.57-P-6001GR
	Table of contents for function description of energy management		GF54.10-P-0990GR
