Fuse Assignment Of Battery Compartment Pre-Fuse Box - GF54.15-P-1256-15GN
MODEL 166 as of model year 2016
MODEL 292

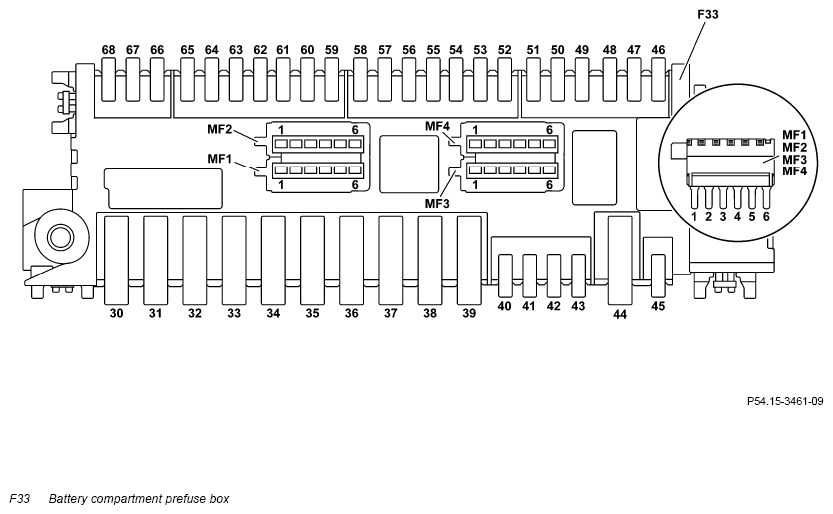

Battery compartment prefuse box
Status check of electric multiple fuses (MF1, MF2, MF3, MF4): The status of the individual fuse cannot be determined visually. The status can only be determined by means of a continuity check between the input of the fuse and the corresponding output.
The designations 30 to 68 correspond to the fuses f30 to f68 below.
| Slot | Fuse Identification | Clamping device | Line ID (line fused) | Fused function | Rating in amperes (A) |
|---|---|---|---|---|---|
| - | f30 | 30 | 4.0 RDWH | Sound system amplifier control unit (N40/3) (with CODE 810 (Sound system)) | 40 |
| 6.0 RDWH | Sound system amplifier control unit (N40/3) (with code 811 (Advanced sound system)) | 40 | |||
| - | f31 | 30 | 4.0 RDWH | Engine compartment fuse and relay module (F58) | 40 |
| - | f32 | 30 | 4.0 RD | Blower regulator (A32n1) | 40 |
| - | f33 | 30g | 4.0 RDBK | Left front reversible emergency tensioning retractor (A76) | 40 |
| - | f34 | 30g | 4.0 RD | Rear fuse box (F4) | 40 |
| - | f35 | 30g | 4.0 RDBK | Right front reversible emergency tensioning retractor (A76/1) | 40 |
| - | f36 | 30 | 4.0 RDWH | Cockpit circuit 30 fuse box (F3/2) | 40 |
| - | f37 | 30 | 4.0 RDWH | Measuring line | 40 |
| - | f38 | 30 | - | Spare | - |
| - | f39 | 30 | - | Heated windshield and side windows relay (special protection) | - |
| - | f40 | 30 | 1.5 RDWH | Rear air conditioning electronic blower regulator (N29/2) | 25 |
| - | f41 | 30 | - | Battery management system control unit (N82/2) (with CODE ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN))) | 7.5 |
| - | f42 | 30 | - | PTE (on model 166.063) | 7.5 |
| - | f43...f44 | 30 | - | Spare | - |
| - | f45 | 30 | 0.35 RDWH | Digital tachograph control unit (N154) (with CODE 930 (tachograph preinstallation)) | 5 |
| - | f46 | 30 | - | Spare | - |
| - | f47 | 30 | - | Spare | - |
| - | f48 | 30 | 2.5 RDWH | Rear control unit (N10/8) | 30 |
| - | f49 | 30 | 0.35 RDWH | ATA [EDW]/tow-away protection/interior protection control unit (N26/6) (with CODE 551 (Anti-theft alarm system (ATA [EDW]))) | 5 |
| - | f50 | 30 | 0.35 RDWH | Emergency call system control unit (N123/4) (with CODE 348 (Emergency call/assist system)) | 5 |
| 0.5 RDWH | Telematics services communications module (N112/2) (with code 350 (eCall Europe emergency call system) or code B54 (Live Traffic Information)) | ||||
| 0.35 RDWH | HERMES control unit (N112/9) (with code 360 (HERMES UMTS) or code 362 (HERMES LTE)) | ||||
| - | f51 | 30 | 0.5 RDBK | FM 1, AM, CL [ZV] and KEYLESS-GO antenna amplifier (A2/18) | 5 |
| - | f52 | 30 | 2.5 RDWH | Right front door control unit (N69/2) | 30 |
| - | f53 | 30 | 1.5 RDBK | Overhead control panel control unit (N70) | 15 |
| - | f54 | 30 | 1.0 RDWH | Measuring line | 7.5 |
| - | f55 | 30 | 2.5 RDWH | Rear control unit (N10/8) (with CODE 872 (Seat heater in rear)) | 30 |
| - | f56 | 30 | 1.0 RDWH | KEYLESS-GO control unit (N69/5) (with CODE 889 (KEYLESS-GO) or with CODE 893 (KEYLESS-GO start function)) | 10 |
| - | f57 | 30 | 2.5 RDWH | Right rear door control unit (N69/4) | 30 |
| - | f58 | 30 | 2.5 RDWH | Transfer case control unit (N15/7) (with CODE 430 (On & off-road package)) | 30 |
| - | f59 | 30g | 0.5 RDBK | Supplemental Restraint System control unit (N2/10) | 7.5 |
| - | f60 | 30g | 0.5 RDBK | Overhead control panel control unit (N70) | 7.5 |
| - | f61 | 30g | - | Measuring line | 5 |
| - | f62 | 30g | 1.0 RD | AIRmatic control unit (N51/3) (with CODE 489 (AIRmatic)) | 15 |
| - | f63 | 30g | 2.5 RDBK | Panoramic sliding sunroof control module (A98) (with CODE 413 (Panoramic sliding sunroof)) | 20 |
| 2.5 RDWH | Sliding roof control module (A98/1) (with CODE 414 (Sliding roof)) | 25 | |||
| - | f64 | 30g | 2.5 RDBK | Multicontour seat pneumatic pump (M40) (with CODE 399 (Front multicontour seats with massage function)) | 30 |
| - | f65 | 30g | 2.5 RDBK | Cockpit circuit 30g fuse box (F3/3) | 30 |
| - | f66 | 30g | 0.5 RDBK | High-voltage PTC heater (N33/5) (on model 166.063) | 7.5 |
| 1.0 RDBK | Engine sound control unit (N40/1) (with code B63 (AMG eSound)) | ||||
| - | f67 | 30 | 4.0 RDWH | Electric parking brake control unit (N128) | 30 |
| - | f68 | 30 | 4.0 RDWH | Electric parking brake control unit (N128) | 30 |
| MF1 | Pin 1 | 30g | 0.35 RDBK | Audio/COMAND control panel (A40/9), touchpad (A105) (with CODE 531 (COMAND APS)) | 5 |
| Pin 2 | 30g | 0.35 RDBK | Lower control panel control unit (N72) | 5 | |
| Off-road control panel control unit (N72/3) (with CODE 430 (On & off-road package)) | |||||
| Pin 3 | 30g | 0.35 RDBK | Parking system control unit (N62) (with CODE 220 (PARKTRONIC) or CODE 235 (Active Parking Assist)) | 5 | |
| Pin 4 | 30g | 0.5 RDBK | Electronic Stability Program control unit (N30/4) | 5 | |
| Pin 5 | 30g | 0.35 RDBK | SAM control unit (N10) | 5 | |
| Pin 6 | 30g | 0.35 RDBK | Sound system amplifier control unit (N40/3) (with CODE 810 (Sound system)) | 5 | |
| MF2 | Pin 1 | 30g | 0.35 RDBK | RCP [HBF] control unit (N72/2) (with CODE 581 (Automatic air conditioning) or CODE 872 (Seat heater in rear)) | 5 |
| Pin 2 | 30g | 0.35 RD | Tire pressure monitor control unit (N88) (with code 475 (Tire pressure monitor)) | 5 | |
| Pin 3 | 30g | 0.35 RDWH | Tuner unit (A90/4) (with CODE 536 (SIRIUS satellite radio), with CODE 537 (Digital radio (DAB)) or with CODE 865 (TV tuner)) | 5 | |
| Pin 4 | 30g | 0.35 RDBK | Multifunction camera (A40/11) (with CODE 22P (Lane package) or stereo multifunction camera (A40/13) with CODE 23P (Driving assistance package plus)) | 5 | |
| Pin 5 | 30g | 0.35 RDBK | Multimedia connection unit (A90/5) | 5 | |
| Pin 6 | 30g | 0.5 RDBK | Reversing camera (B84/3) (with CODE 218 (Reversing camera) without CODE 498 (Japan version)) | 5 | |
| Pin 6 | 30g | 0.35 RDBK | 360° camera control unit (N148) (with CODE 501 (360° camera)) | 5 | |
| MF3 | Pin 1 | 30g | 0.35 RD | Left rear display (A40/5) (with CODE 864 (Rear Seat Entertainment System)) | 5 |
| Pin 2 | 30g | 0.35 RD | Right rear display (A40/6) (with CODE 864 (Rear Seat Entertainment System)) | 5 | |
| Pin 3 | 30g | 0.35 RDBK | Chassis gateway control unit (N93/7) (with code 23P (Driving assistance package PLUS)) | 5 | |
| Pin 4 | 30g | 0.35 RD | DVD player (A40/4) (with CODE 864 (Rear Seat Entertainment System)) | 5 | |
| Pin 5 | 30g | 0.35 RDBK | Radar sensors control unit (N62/1) (with CODE 233 (DISTRONIC PLUS), CODE 234 (Blind Spot Assist)) | 5 | |
| Pin 6 | 30g | - | Spare | 5 | |
| MF4 | PIN 1...6 | 30g | - | Spare | - |
