Fuse And Relay Box, As-Built Configuration - GF54.15-P-0800GR
MODEL 166 up to model year 2016

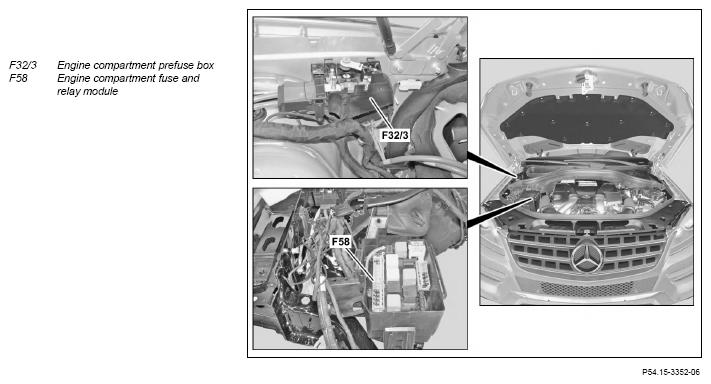

Shows model 166.0
Shows model 166.0

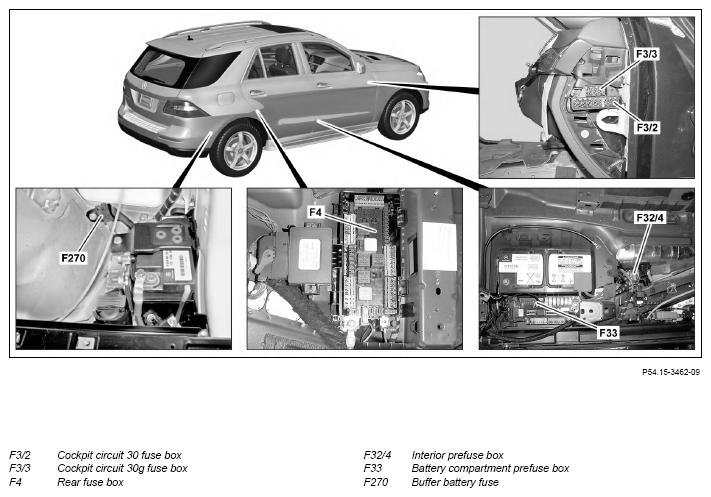

On model 166.0, the rear fuse box is located under the right rear seat and on model 166.8, it is located under the left rear seat.
The buffer battery protection protects the intelligent servo module for DIRECT SELECT (A80) (looped through from the electronic ignition lock control unit (N73)). The fuse rating of the fuse is 10 A.
When "ATO" and "MAXI" fuses are changed, they must always be replaced with fuses that comply with the Mercedes-Benz standard: MBN10153-2. "ATO" and "MAXI" fuses are installed in the engine compartment fuse and relay module, in the rear fuse box and in the interior prefuse box.

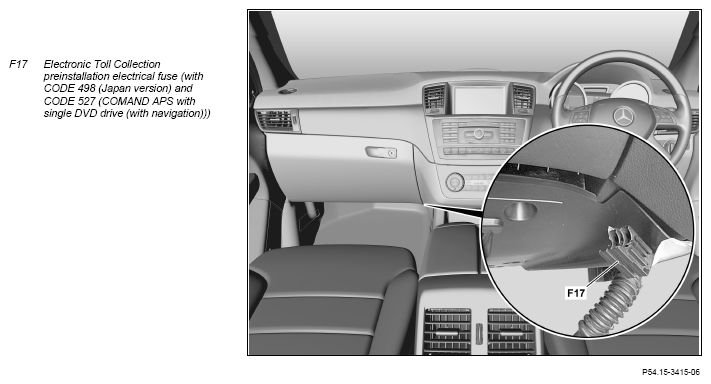

Shown on right-hand drive vehicle
The Electronic Toll Collection preinstallation electrical fuse is inserted in the Japanese "vehicle preparation center".
| |
Fuse assignment in cockpit fuse box |
F3/2, F3/3 |
GF54.15-P-1256-22GR |
| |
Assignment of rear fuse and relay module |
F4 |
GF54.15-P-1256-30GR |
| |
Fuse assignment of prefuse box in engine compartment |
F32/2 |
GF54.15-P-1256-25GR |
| |
Fuse assignment of fuse box in interior compartment on passenger's side |
F32/4 |
GF54.15-P-1256-11GR |
| |
Fuse assignment of battery compartment prefuse box |
F33 |
GF54.15-P-1256-15GR |
| |
Assignment of engine compartment fuse and relay module |
F58 |
GF54.15-P-1256-36GR |
