Remove/Install Right Inerting System Line In Engine Compartment - AR86.10-P-0419GQA

MODEL 166, 292 with ENGINE 276, 278 with CODE 2U8 (Alternative refrigerant)

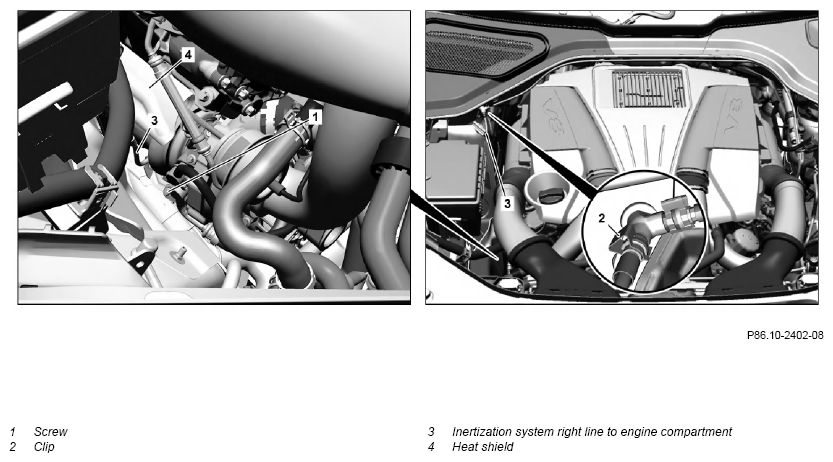

Shown on model 292 with engine 278

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
2	Remove right air filter housing with right engine air intake duct	Model 166, 292 with engine 276.8 with code 2U8 (Alternative refrigerant)	AR09.10-P-1150GQC
3	Remove bolt (1)	Pipe for inerting to engine	*BA86.10-P-1002-03B
4	Expose inertization system right line to engine compartment (3) up to clamp (2)	Ensure that inertization system right line to engine compartment (3) is routed correctly. Model 166, 292 with engine 278 with code 2U8 (Alternative refrigerant) Installation:  Clip inertization system right line to engine compartment (3) into clamp on heat shield (4).
5	Remove clamp (2)
6	Remove inertization system right line to engine compartment (3)
7	Install in the reverse order
