Wiring Diagram For Common Rail Diesel Injection (CDI) Control Unit - PE07.16-P-2101-97NAL
MODEL 166 with ENGINE 651.9 as of 3/1/13 up to model year 2016 without CODE 494 (US version) Bosch CR43, control unit N3/9, engine plug
MODEL 166 with ENGINE 651.9 as of 9/1/13 up to model year 2016 with CODE 494 (US version) Bosch CR43, control unit N3/9, engine plug
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 72L |
| B16/15 | Temperature sensor upstream of SCR catalytic converter | 58L |
| B37 | Accelerator pedal sensor | 51L |
| CAN C | Drive train CAN | 14K |
| CAN C | Drive train CAN | 11K |
| CAN E1 | Chassis CAN 1 | 20K |
| Code B03 | ECO start/stop function | 8H |
| Code U42 | BlueTEC® diesel exhaust treatment | 57A |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 57A |
| F32/3 | Engine compartment prefuse box | 45L |
| F32/3f6 | Fuse 6 | 44K |
| F58 | Engine compartment fuse and relay module | 2L |
| F58 | Engine compartment fuse and relay module | 29L |
| F58 | Engine compartment fuse and relay module | 32L |
| F58f213 | Fuse 213 | 2L |
| F58f215 | Fuse 215 | 33L |
| F58f216 | Fuse 216 | 30L |
| F58f217 | Fuse 217 | 31L |
| M4/7 | Fan motor | 48L |
| N10 | SAM control unit | 7L |
| N118 | Fuel pump control unit | 17L |
| N118/5 | AdBlue® control unit | 63L |
| N2/10 | Supplemental restraint system control unit | 54L |

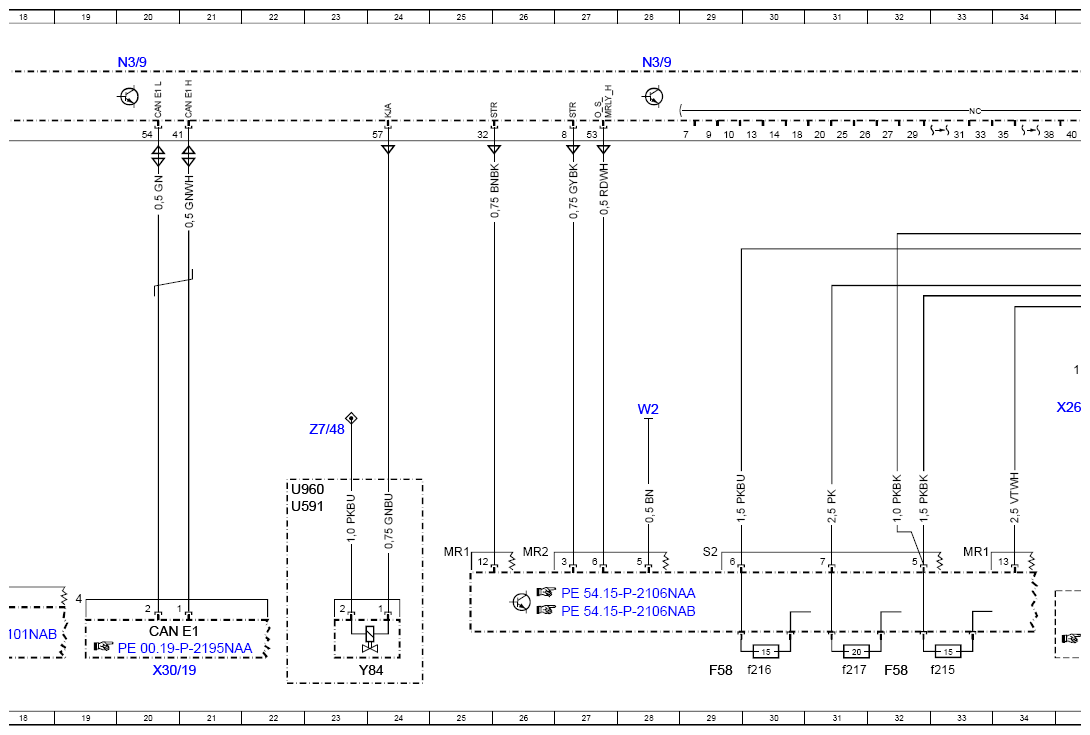

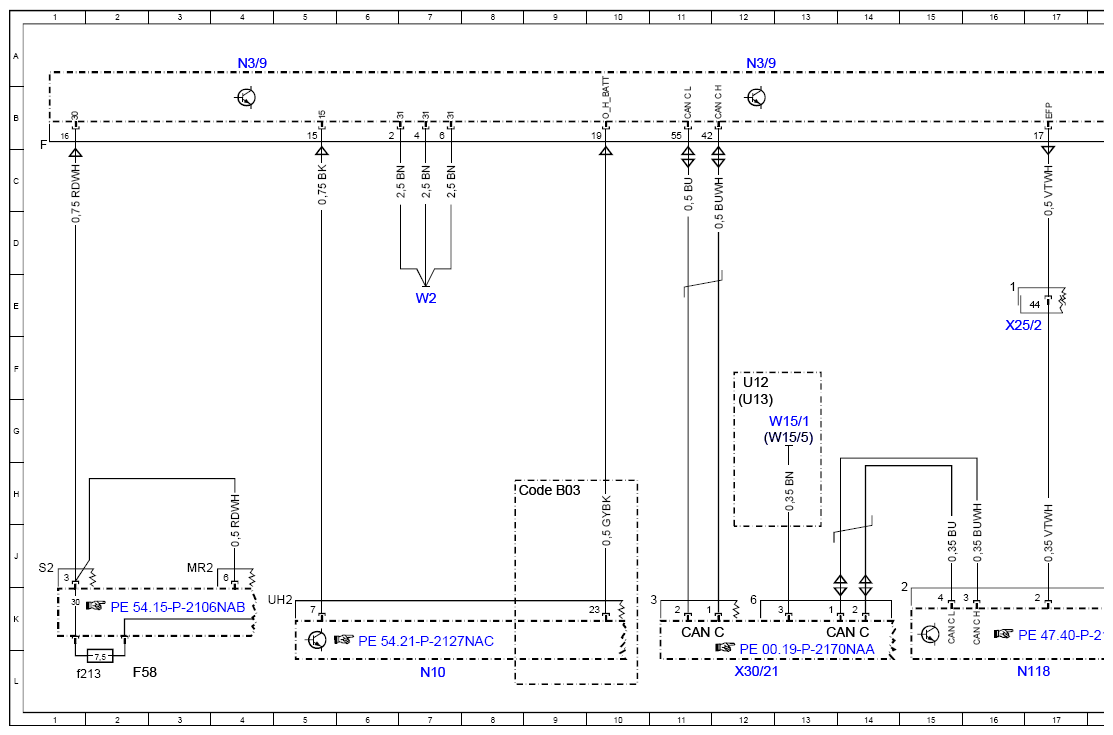

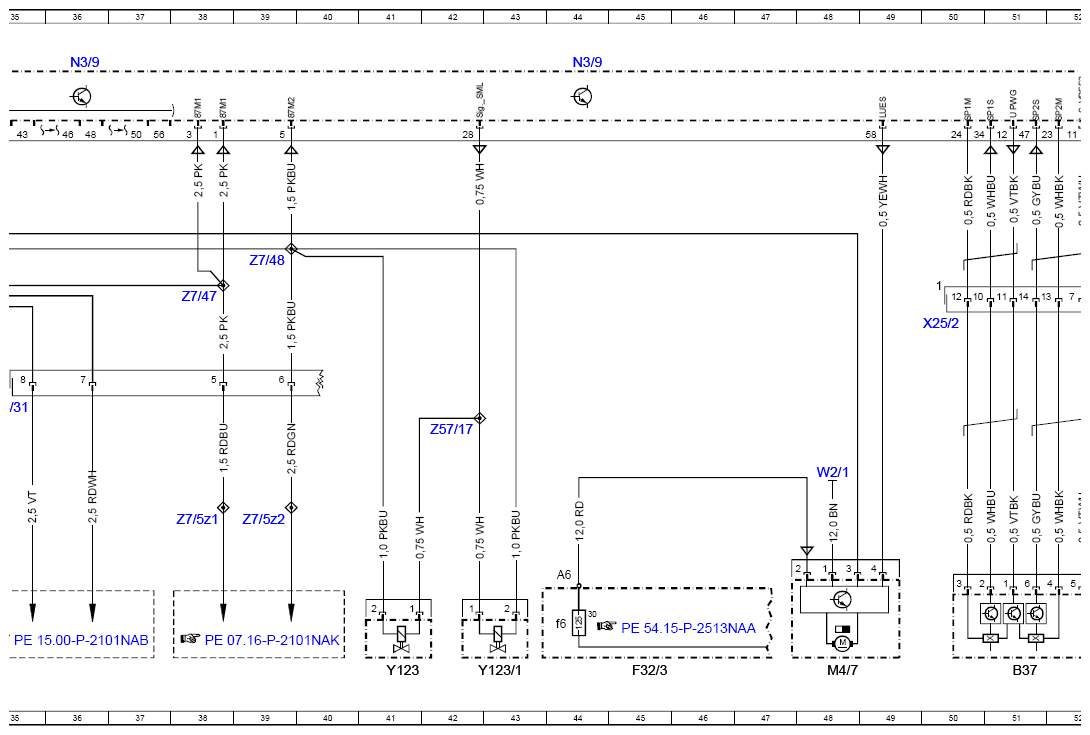

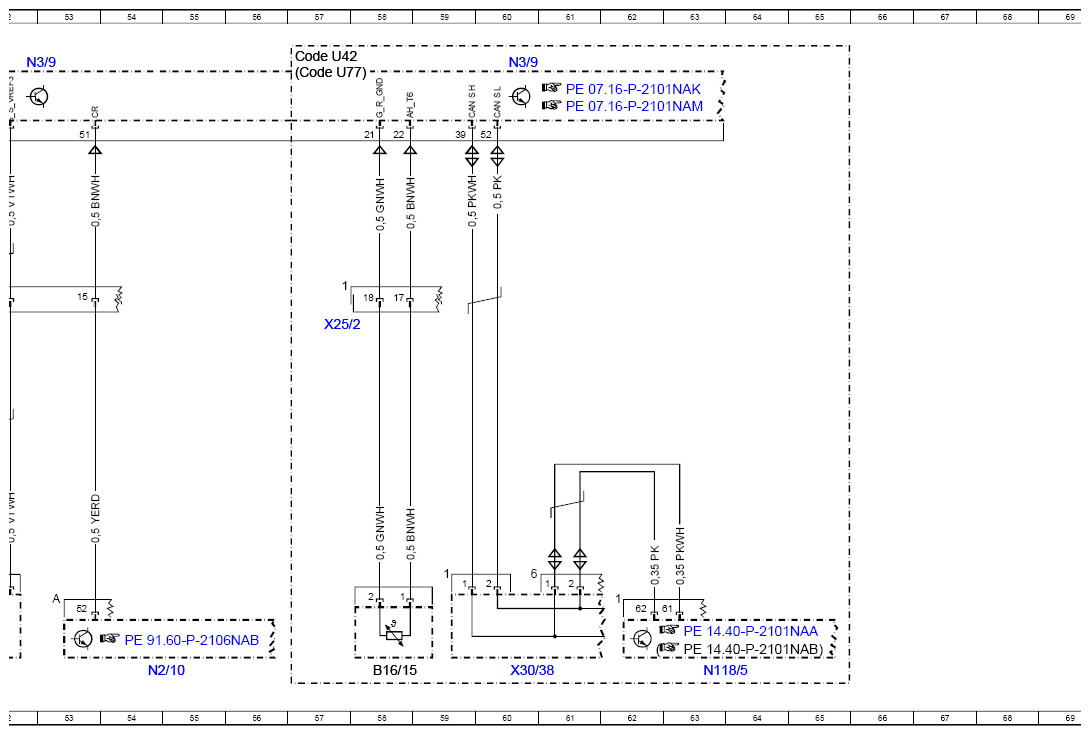

| N3/9 | CDI control unit | 4A |
| N3/9 | CDI control unit | 12A |
| N3/9 | CDI control unit | 20A |
| N3/9 | CDI control unit | 28A |
| N3/9 | CDI control unit | 36A |
| N3/9 | CDI control unit | 44A |
| N3/9 | CDI control unit | 52A |
| N3/9 | CDI control unit | 60A |
| U12 | Valid for left-hand drive vehicles | 12F |
| U13 | Valid for right-hand drive vehicles | 12G |
| U591 | Not valid for trailer hitch | 22H |
| U960 | Valid for radiator shutters | 22H |
| W15/1 | Right footwell ground point | 13G |
| W15/5 | Left front footwell ground point | 13G |
| W2 | Right front ground point at lamp unit | 28G |
| W2 | Right front ground point at lamp unit | 7E |
| W2/1 | Right front ground point | 48H |
| X25/2 | Engine compartment/vehicle interior electrical connector | 16E |
| X25/2 | Engine compartment/vehicle interior electrical connector | 50E |
| X25/2 | Engine compartment/vehicle interior electrical connector | 57E |
| X26/31 | Engine/engine compartment electrical connector | 35G |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 20L |
| X30/21 | Drive train CAN voltage distributor electrical connector | 12L |
| X30/38 | Potential distributor electrical connector (CAN I) | 60L |
| Y123 | Left switchable engine mount | 41L |
| Y123/1 | Right switchable engine mount | 43L |
| Y84 | Radiator shutters actuator | 23L |
| Z57/17 | Engine mount connector sleeve in engine compartment | 42G |
| Z7/47 | Circuit 87D1 connector sleeve | 38E |
| Z7/48 | Circuit 87D2 connector sleeve | 23G |
| Z7/48 | Circuit 87D2 connector sleeve | 39D |
| Z7/5z1 | Circuit 87 connector sleeve | 38H |
| Z7/5z2 | Circuit 87 connector sleeve | 39H |
