Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97NBH

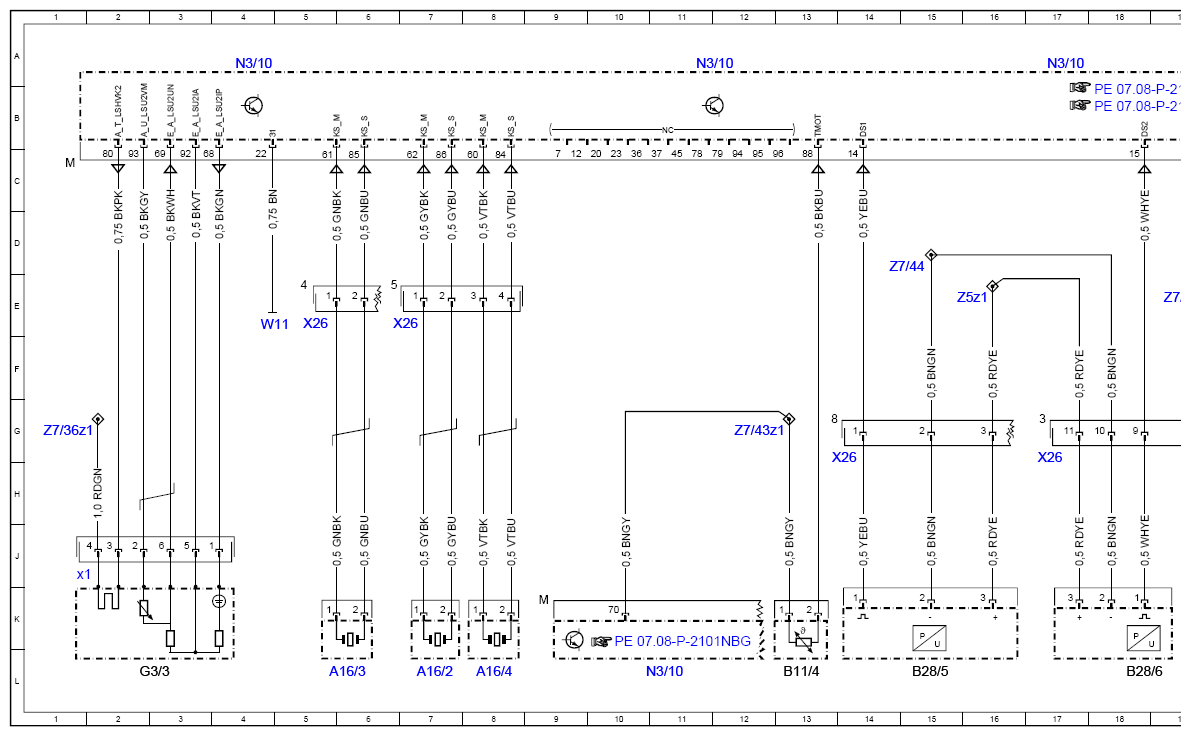

ENGINE 157.9, 278.9 in MODEL 166 as of model year 2016 Control unit N3/10, vehicle connector, engine side, sheet 2
ENGINE 157.9, 278.9 in MODEL 292 Control unit N3/10, vehicle connector, engine side, sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |
| A16/2 | Knock sensor 2 | 7L |
| A16/3 | Knock sensor 3 | 6L |
| A16/4 | Knock sensor 4 | 8L |
| B11/4 | Coolant temperature sensor | 13L |
| B17/8 | Charge air temperature sensor | 20L |
| B28/5 | Pressure sensor downstream of air filter | 15L |
| B28/6 | Pressure sensor upstream of throttle valve | 18L |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 2L |
| G3/3x1 | Electrical connector for left oxygen sensor upstream of catalytic converter | 1J |
| N3/10 | ME-SFI [ME] control unit | 11L |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 11A |
| N3/10 | ME-SFI [ME] control unit | 17A |
| W11 | Combustion engine ground point | 4E |
| X26 | Interior and engine wiring harness electrical connector | 5E |
| X26 | Interior and engine wiring harness electrical connector | 7E |
| X26 | Interior and engine wiring harness electrical connector | 14G |
| X26 | Interior and engine wiring harness electrical connector | 17G |
| Z5z1 | Sensor voltage supply connector sleeve | 16E |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 1G |
| Z7/43z1 | Sensor ground line connector sleeve | 12G |
| Z7/43z1 | Sensor ground line connector sleeve | 19E |
| Z7/44 | Ground connection connector sleeve | 15D |
