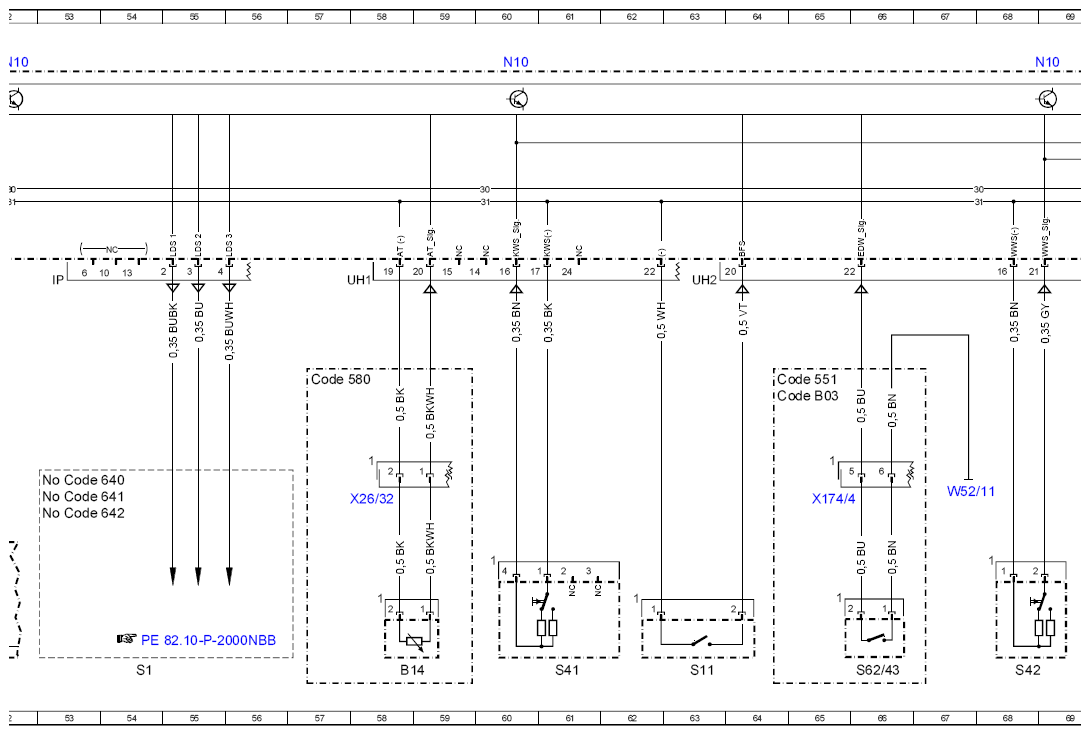

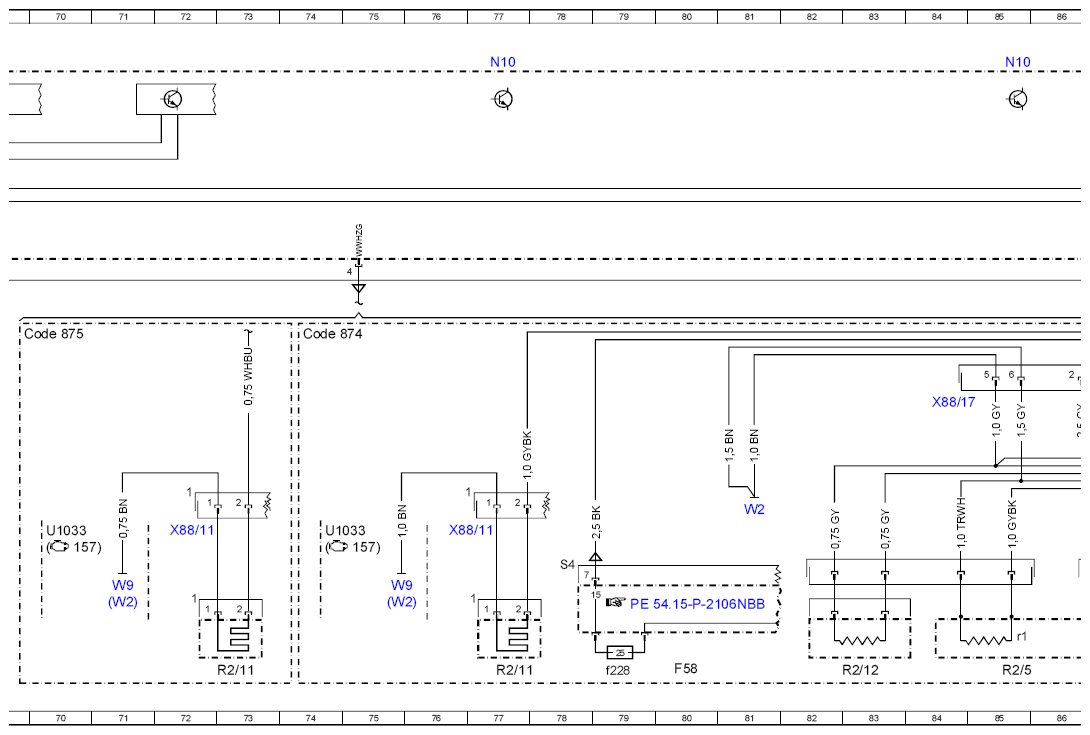

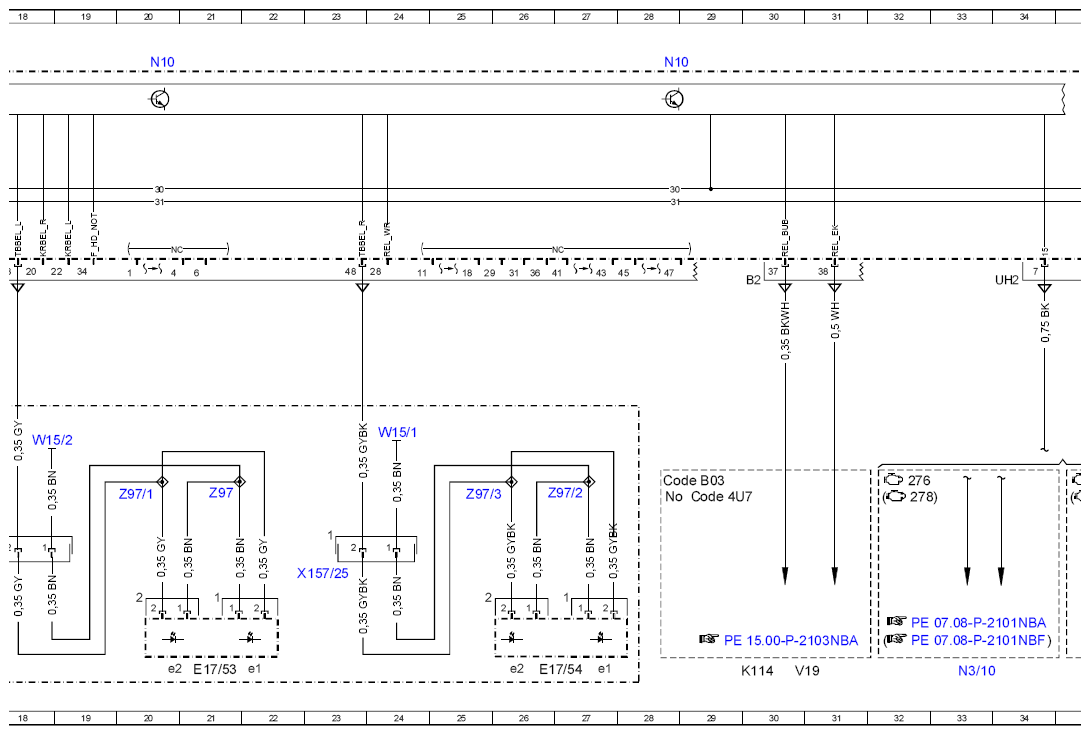

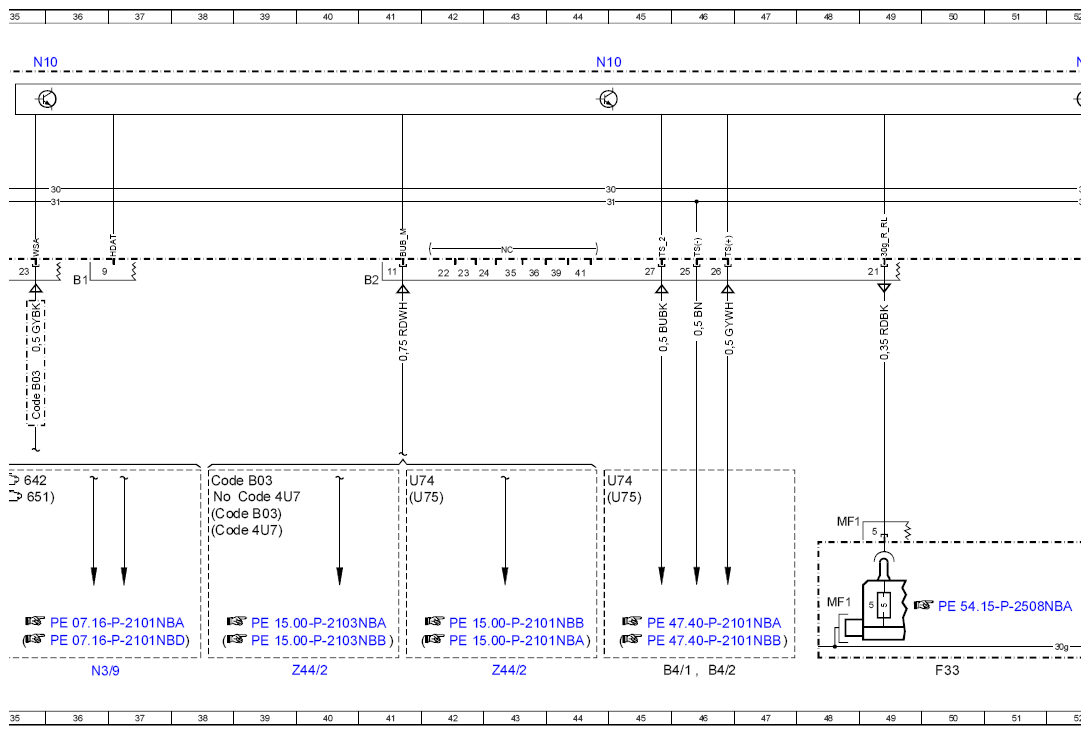

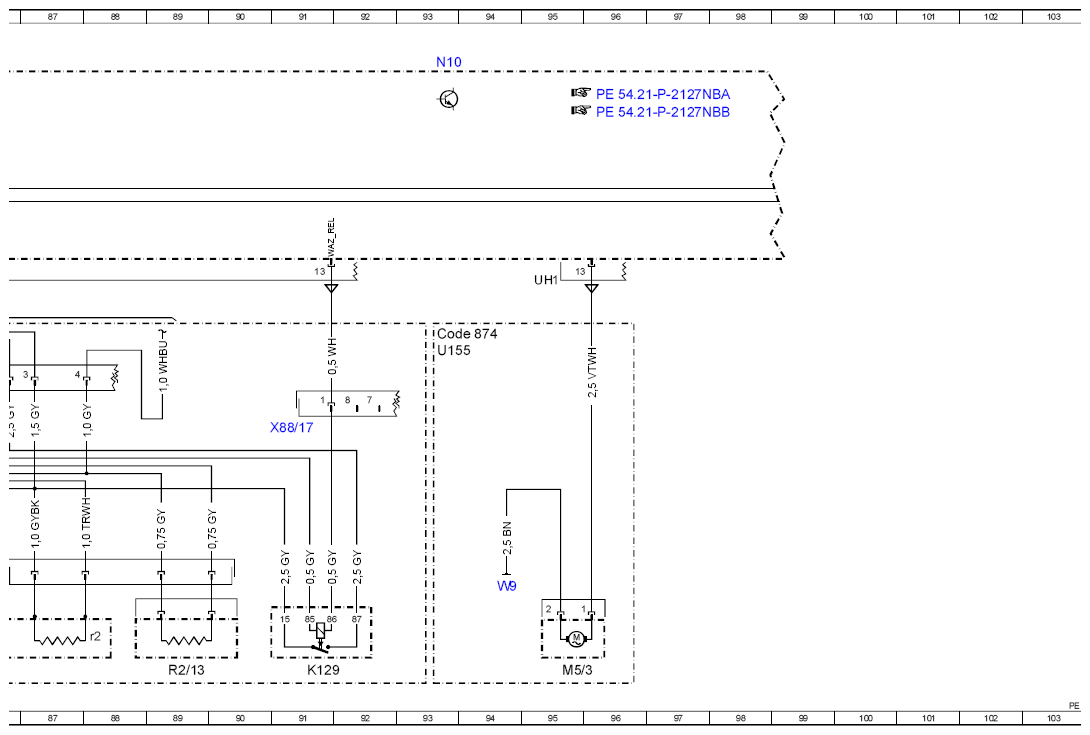

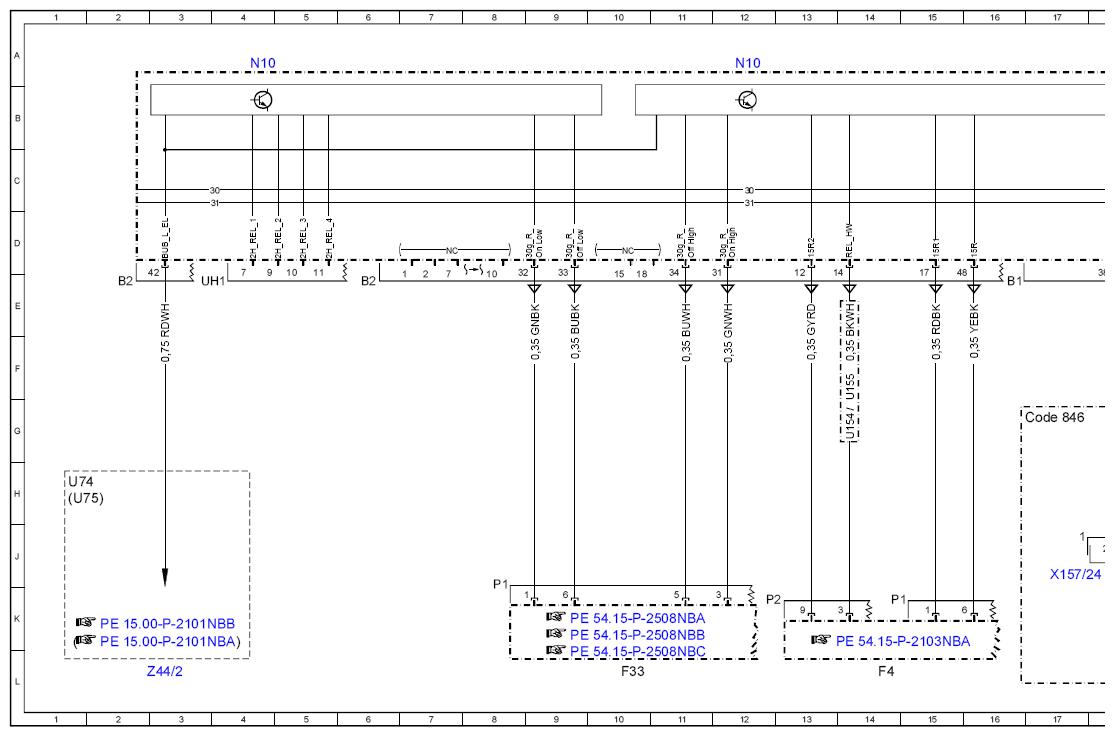

Wiring Diagram For Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-P-2127-97NBC
MODEL 166 as of model year 2016 Control unit N10, Sheet 3
MODEL 292 Control unit N10, Sheet 3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 104L |
| B14 | Outside temperature sensor | 58L |
| B4/1 | Fuel tank fuel level indicator fill level sensor, left | 45L |
| B4/2 | Fuel tank fuel level indicator fill level sensor, right | 46L |
| Code 4U7 | Start/stop voltage dip protection | 38J |
| Code 4U7 | Start/stop voltage dip protection | 29H |
| Code 4U7 | Start/stop voltage dip protection | 39H |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 64F |
| Code 580 | Air conditioning | 57F |
| Code 640 | High Performance LED | 53H |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 53H |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 53H |
| Code 846 | Running boards | 16G |
| Code 874 | MAGIC VISION CONTROL | 74F |
| Code 874 | MAGIC VISION CONTROL | 93F |
| Code 875 | Heated windshield washer system | 69F |
| Code B03 | ECO start/stop function | 28H |
| Code B03 | ECO start/stop function | 38H |
| Code B03 | ECO start/stop function | 64G |
| Code B03 | ECO start/stop function | 38H |
| Code B03 | ECO start/stop function | 35G |
| E17/53 | Left running board courtesy light | 21L |
| E17/53e1 | Left rear running board courtesy light | 22L |
| E17/53e2 | Left front running board courtesy light | 20L |
| E17/54 | Right running board courtesy light | 26L |
| E17/54e1 | Right rear running board courtesy light | 27L |
| E17/54e2 | Right front running board courtesy light | 26L |
| F33 | Battery compartment prefuse box | 10L |
| F33 | Battery compartment prefuse box | 50L |
| F33MF1 | Multiple fuse 1 | 48K |
| F4 | Rear fuse box | 14L |
| F58 | Engine compartment fuse and relay module | 80L |
| F58f228 | Fuse 228 | 79L |
| K114 | ECO start/stop function additional battery relay | 30L |
| K129 | Spray nozzle hose heaters relay | 91L |
| M5/3 | Liftgate washer fluid pump | 95L |
| N10 | SAM control unit | 4A |
| N10 | SAM control unit | 12A |
| N10 | SAM control unit | 20A |
| N10 | SAM control unit | 28A |
| N10 | SAM control unit | 35A |
| N10 | SAM control unit | 44A |
| N10 | SAM control unit | 52A |
| N10 | SAM control unit | 60A |
| N10 | SAM control unit | 69A |
| N10 | SAM control unit | 77A |
| N10 | SAM control unit | 85A |
| N10 | SAM control unit | 93A |
| N3/10 | ME-SFI [ME] control unit | 33L |
| N3/9 | CDI control unit | 36L |
| R2/11 | Spray nozzle hose heater | 73L |
| R2/11 | Spray nozzle hose heater | 77L |
| R2/12 | Left heated wiper blade | 83L |
| R2/13 | Right heated wiper blade | 89L |
| R2/5 | Upper spray nozzle hose heater | 85L |
| R2/5r1 | Upper spray nozzle hose heater, left | 85K |
| R2/5r2 | Upper spray nozzle hose heater, right | 88K |
| S1 | Exterior lights switch | 54L |
| S11 | Brake fluid level switch | 63L |
| S41 | Coolant level switch | 61L |
| S42 | Windshield washer system washer fluid level switch | 68L |
| S62/43 | Left engine hood contact switch | 66L |
| U1033 | Not valid for engine 157 | 70J |
| U1033 | Not valid for engine 157 | 74J |
| U154 | Valid for 166.0 | 14G |
| U155 | Valid for 166.8 | 14F |
| U155 | Valid for 166.8 | 93F |
| U74 | Valid for diesel engines | 1H |
| U74 | Valid for diesel engines | 41H |
| U74 | Valid for diesel engines | 44H |
| U75 | Valid for gasoline engines | 1H |
| U75 | Valid for gasoline engines | 41H |
| U75 | Valid for gasoline engines | 44H |
| V19 | ECO start/stop function diode | 30L |
| W15/1 | Right footwell ground point | 24G |
| W15/2 | Left footwell ground point | 18G |
| W2 | Right front ground point at lamp unit | 71K |
| W2 | Right front ground point at lamp unit | 75K |
| W2 | Right front ground point at lamp unit | 81H |
| W52/11 | Upper right front longitudinal member ground point | 67H |
| W9 | Left front ground point (at lamp unit) | 71K |
| W9 | Left front ground point (at lamp unit) | 75K |
| W9 | Left front ground point (at lamp unit) | 94K |
| X157/24 | Left running board courtesy light electrical connector | 17J |
| X157/25 | Right running board courtesy light electrical connector | 23J |
| X174/4 | Engine compartment/vehicle front electrical connector | 65H |
| X26/32 | Engine compartment/front bumper electrical connector | 58H |
| X88/11 | Spray nozzle heater electrical connector | 72J |
| X88/11 | Spray nozzle heater electrical connector | 77J |
| X88/17 | Aquablade electrical connector | 84G |
| X88/17 | Aquablade electrical connector | 91G |
| Z44/2 | Buffer battery connector sleeve | 43L |
| Z44/2 | Buffer battery connector sleeve | 40L |
| Z44/2 | Buffer battery connector sleeve | 3L |
| Z97 | Left running board courtesy light circuit 31 connector sleeve | 21H |
| Z97/1 | Left running board courtesy light circuit 58d connector sleeve | 20H |
| Z97/2 | Right running board courtesy light circuit 31 connector sleeve | 27H |
| Z97/3 | Right running board courtesy light circuit 58d connector sleeve | 25H |
