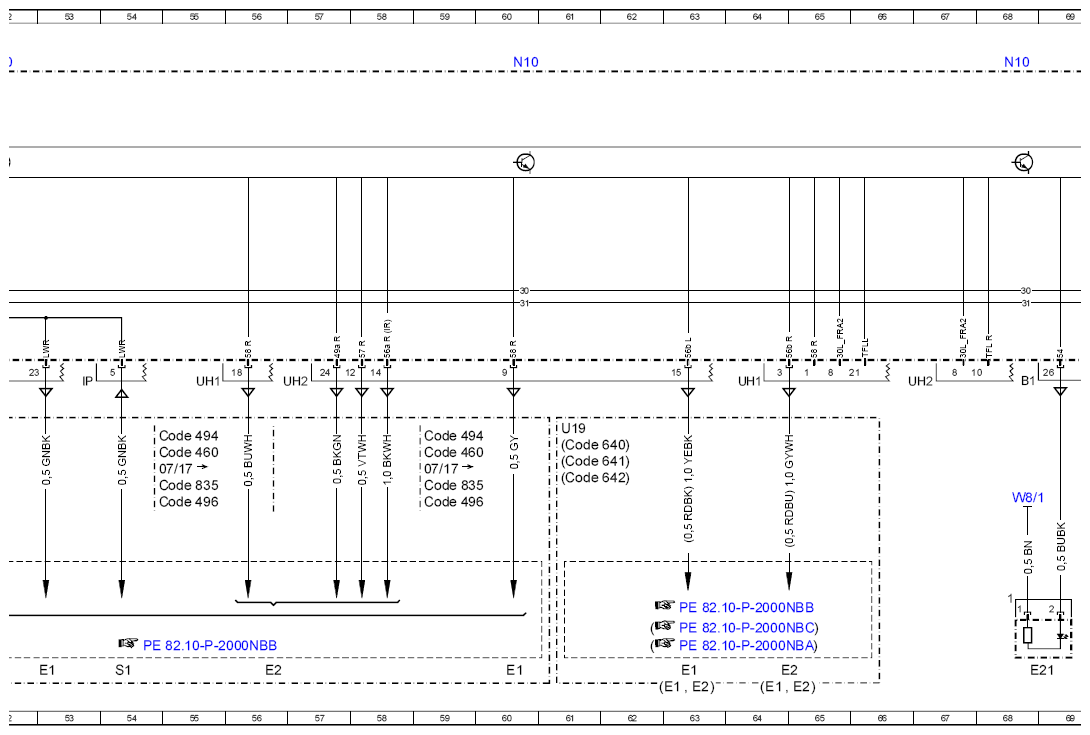

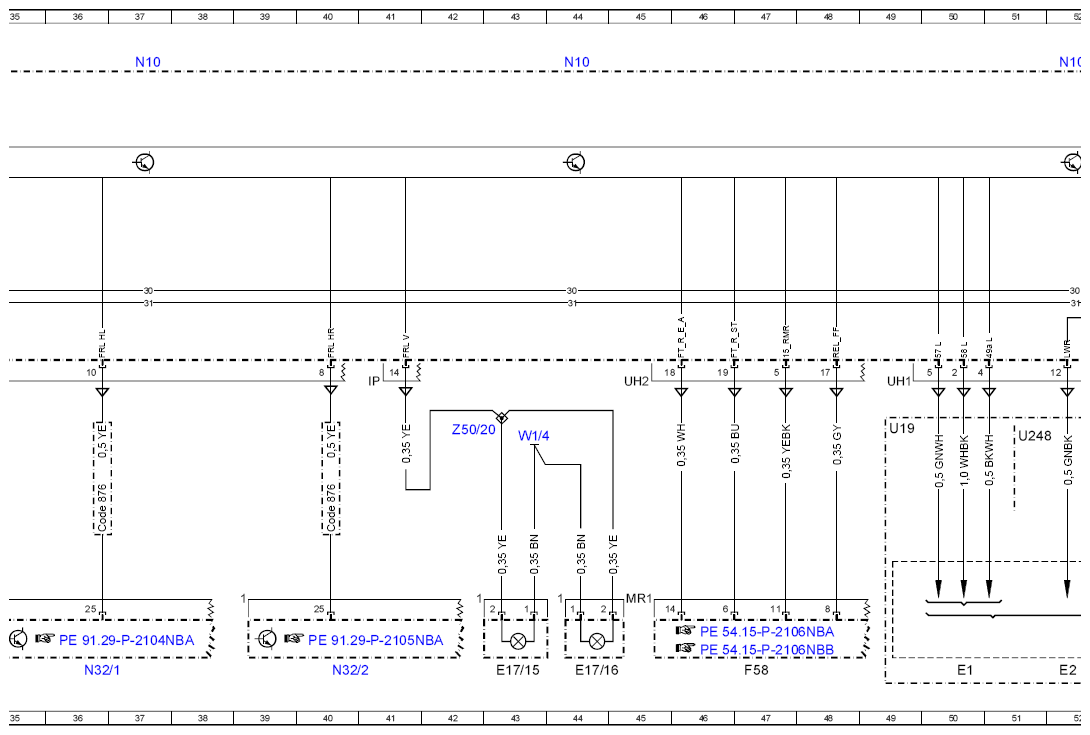

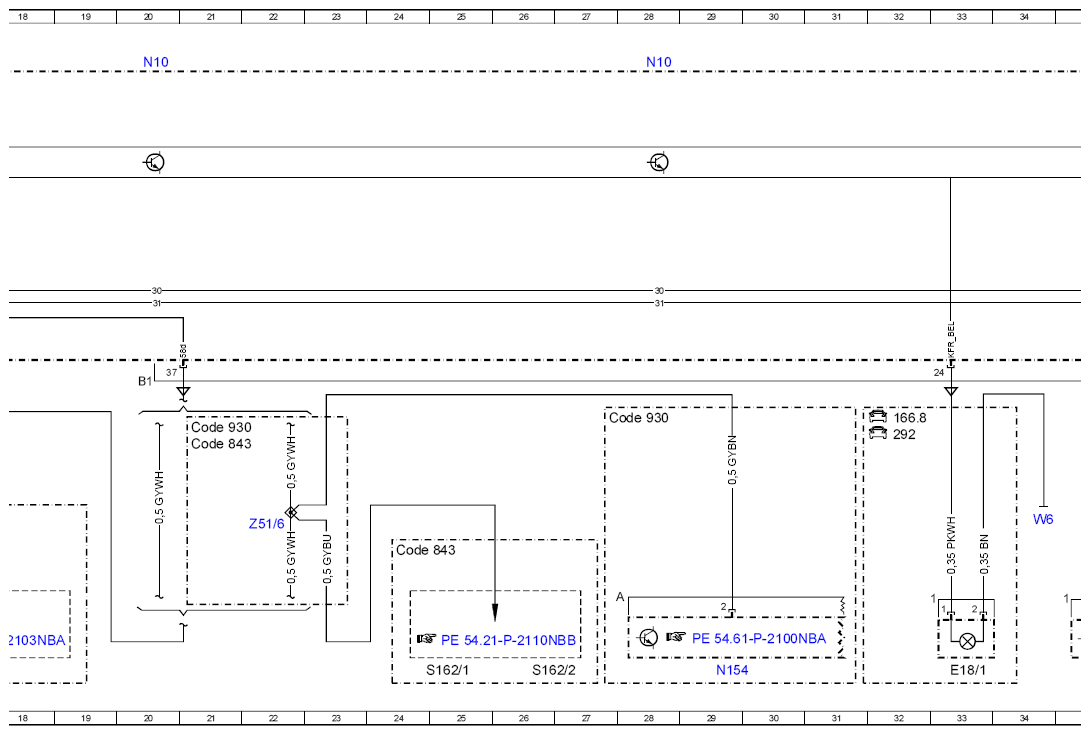

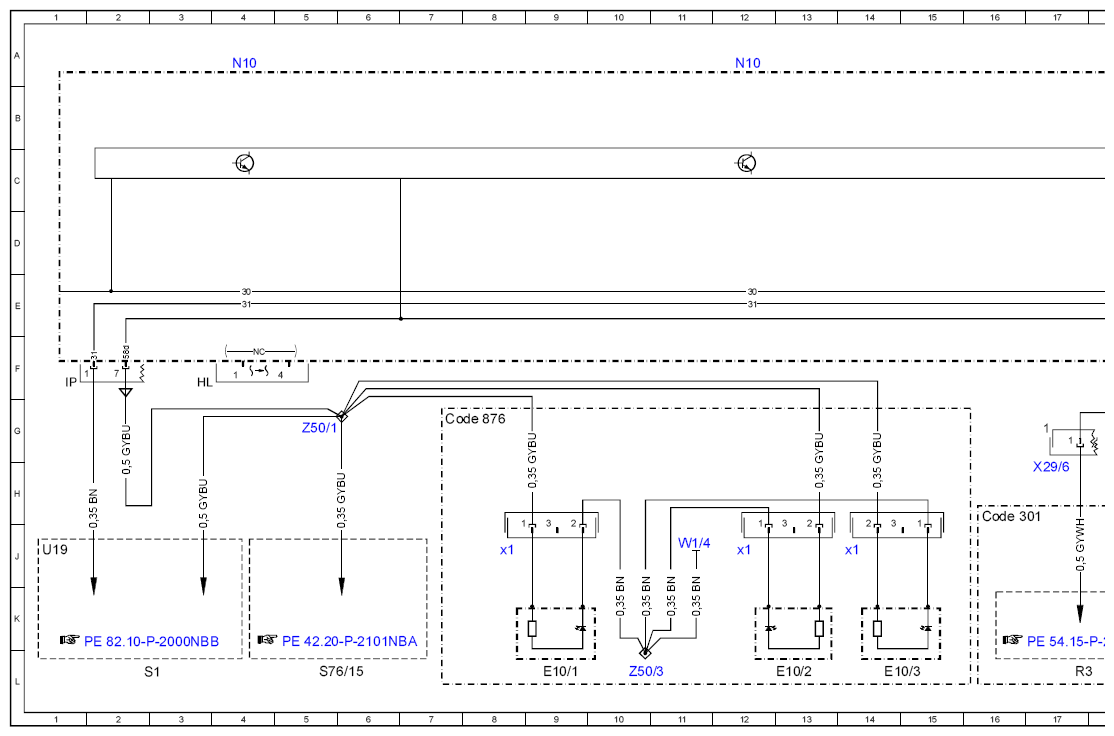

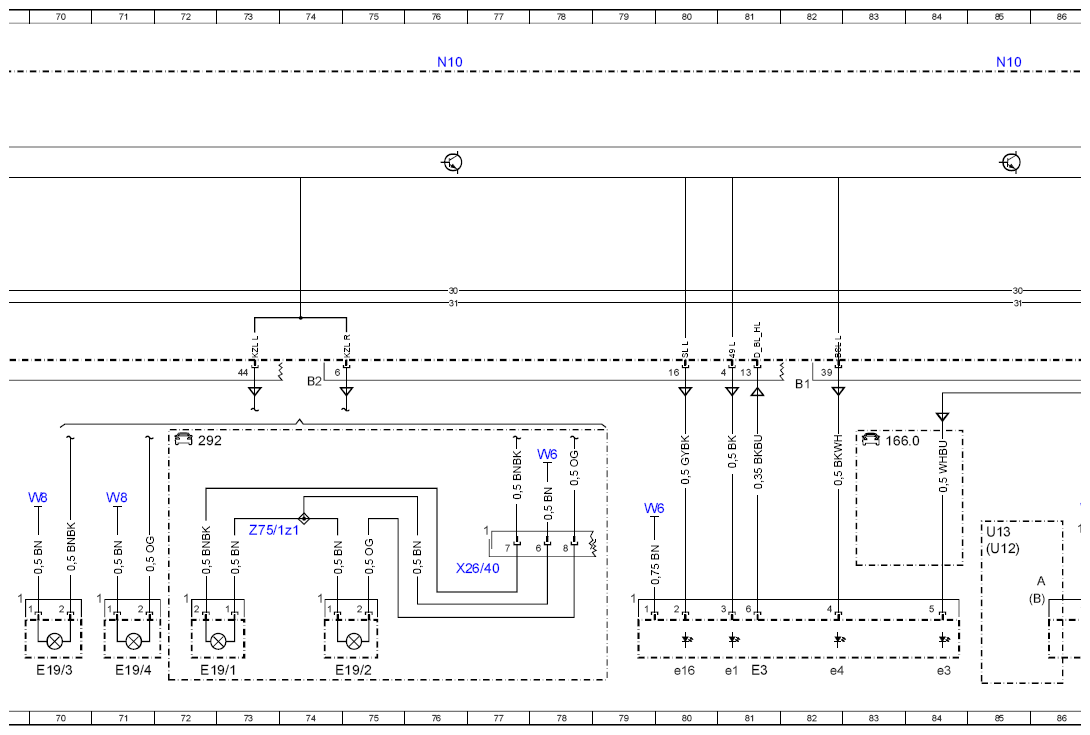

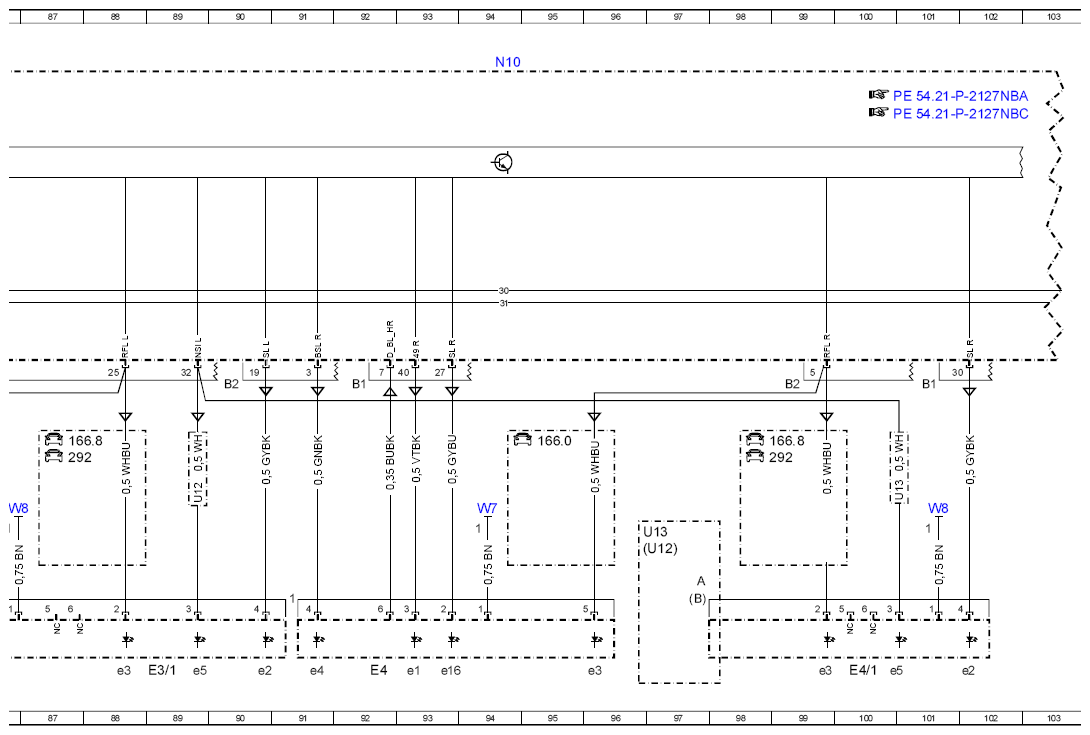

Wiring Diagram For Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-P-2127-97NBB
MODEL 166 as of model year 2016 Control unit N10, Sheet 2
MODEL 292 Control unit N10, Sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 105L |
| Code 301 | Ashtray in place of stowage compartment with flap and power outlet | 16H |
| Code 460 | Canada version | 54G |
| Code 460 | Canada version | 59G |
| Code 494 | USA version | 59G |
| Code 494 | USA version | 54G |
| Code 496 | Mexico version | 54H |
| Code 496 | Mexico version | 59H |
| Code 640 | High Performance LED | 61G |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 61H |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 61H |
| Code 835 | Additional parts for South Korea vehicles | 59H |
| Code 835 | Additional parts for South Korea vehicles | 54H |
| Code 843 | Electric EASY-ENTRY | 24J |
| Code 843 | Electric EASY-ENTRY | 21G |
| Code 876 | Interior lights package | 7G |
| Code 876 | Interior lights package | 36J |
| Code 876 | Interior lights package | 40J |
| Code 930 | Tachograph preinstallation | 27G |
| Code 930 | Tachograph preinstallation | 21G |
| E1 | Left front lamp unit | 53L |
| E1 | Left front lamp unit | 50L |
| E1 | Left front lamp unit | 60L |
| E1 | Left front lamp unit | 63L |
| E1 | Left front lamp unit | 63L |
| E1 | Left front lamp unit | 64L |
| E10/1 | Left center air outlet symbol illumination | 9L |
| E10/1x1 | Center vent symbol illumination electrical connector | 8J |
| E10/2 | Left front side air outlet symbol illumination | 13L |
| E10/2x1 | Left front side vent symbol illumination electrical connector | 12J |
| E10/3 | Right front side air outlet symbol illumination | 14L |
| E10/3x1 | Right front side vent symbol illumination electrical connector | 14J |
| E17/15 | Right front footwell lamp | 43L |
| E17/16 | Left front footwell lamp | 44L |
| E18/1 | Load compartment lamp | 33L |
| E19/1 | Left license plate lamp | 72L |
| E19/2 | Right license plate lamp | 75L |
| E19/3 | Left liftgate license plate lamp | 70L |
| E19/4 | Right liftgate license plate lamp | 71L |
| E2 | Right front lamp unit | 52L |
| E2 | Right front lamp unit | 56L |
| E2 | Right front lamp unit | 64L |
| E2 | Right front lamp unit | 63L |
| E2 | Right front lamp unit | 65L |
| E21 | Center stop lamp | 68L |
| E3 | Left rear lamp unit | 81L |
| E3/1 | Inner left rear lamp unit | 89L |
| E3/1e2 | Left inside taillight | 90L |
| E3/1e3 | Left backup lamp | 88L |
| E3/1e5 | Left rear fog lamp | 89L |
| E3e1 | Left rear turn signal lamp | 81L |
| E3e16 | Outer left taillight | 80L |
| E3e3 | Left backup lamp | 84L |
| E3e4 | Left stop lamp | 82L |
| E4 | Right rear lamp unit | 92L |
| E4/1 | Inner right rear lamp unit | 100L |
| E4/1e2 | Right inside taillight | 102L |
| E4/1e3 | Right backup lamp | 99L |
| E4/1e5 | Right rear fog lamp | 100L |
| E4e1 | Right rear turn signal lamp | 93L |
| E4e16 | Outer right taillight | 93L |
| E4e3 | Right backup lamp | 96L |
| E4e4 | Right stop lamp | 91L |
| F58 | Engine compartment fuse and relay module | 47L |
| N10 | SAM control unit | 4A |
| N10 | SAM control unit | 12A |
| N10 | SAM control unit | 28A |
| N10 | SAM control unit | 20A |
| N10 | SAM control unit | 37A |
| N10 | SAM control unit | 44A |
| N10 | SAM control unit | 52A |
| N10 | SAM control unit | 60A |
| N10 | SAM control unit | 68A |
| N10 | SAM control unit | 76A |
| N10 | SAM control unit | 94A |
| N10 | SAM control unit | 85A |
| N154 | Digital tachograph control unit | 29L |
| N32/1 | Driver seat control unit | 36L |
| N32/2 | Front passenger seat control unit | 40L |
| R3 | Front cigarette lighter with ashtray illumination | 17L |
| S1 | Exterior lights switch | 2L |
| S1 | Exterior lights switch | 54L |
| S162/1 | Left 2nd seat row folding backrest switch | 25L |
| S162/2 | Right 2nd seat row folding backrest switch | 26L |
| S76/15 | Electric parking brake switch | 5L |
| U12 | Valid for left-hand drive vehicles | 85J |
| U12 | Valid for left-hand drive vehicles | 89H |
| U12 | Valid for left-hand drive vehicles | 96J |
| U13 | Valid for right-hand drive vehicles | 85J |
| U13 | Valid for right-hand drive vehicles | 101H |
| U13 | Valid for right-hand drive vehicles | 96J |
| U19 | Valid for standard equipment | 1J |
| U19 | Valid for standard equipment | 49G |
| U19 | Valid for standard equipment | 61G |
| U248 | Valid for headlamp range adjustment for halogen headlamps | 51G |
| W1/4 | Cockpit ground point | 11J |
| W1/4 | Cockpit ground point | 43G |
| W6 | Inner left D-pillar ground point | 34J |
| W6 | Inner left D-pillar ground point | 79H |
| W6 | Inner left D-pillar ground point | 78G |
| W7 | Right rear center section ground point | 94H |
| W8 | Liftgate ground point | 70H |
| W8 | Liftgate ground point | 71H |
| W8 | Liftgate ground point | 86H |
| W8 | Liftgate ground point | 101H |
| W8/1 | Left tailgate ground point | 68H |
| X26/40 | Rear frame floor assembly/bumper electrical connector | 77J |
| X29/6 | Center console electrical connector | 17H |
| Z50/1 | Circuit 58d instrument panel connector sleeve | 5G |
| Z50/20 | Cockpit connector sleeve, footwell lighting | 42G |
| Z50/3 | Circuit 31 instrument panel connector sleeve | 10L |
| Z51/6 | Circuit 58d vehicle interior connector sleeve | 22J |
| Z75/1z1 | License plate lamp connector sleeve | 73J |
