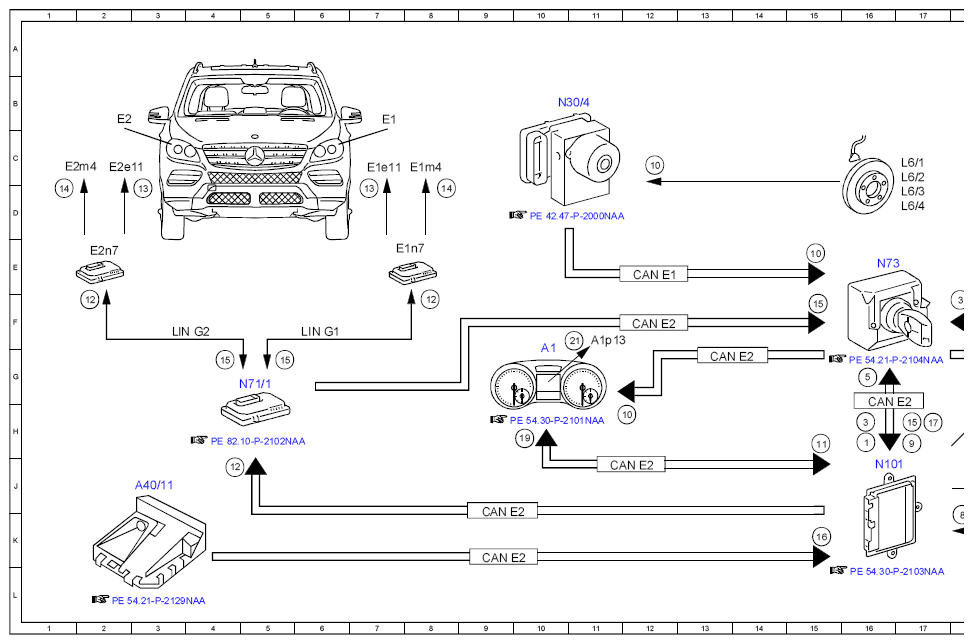

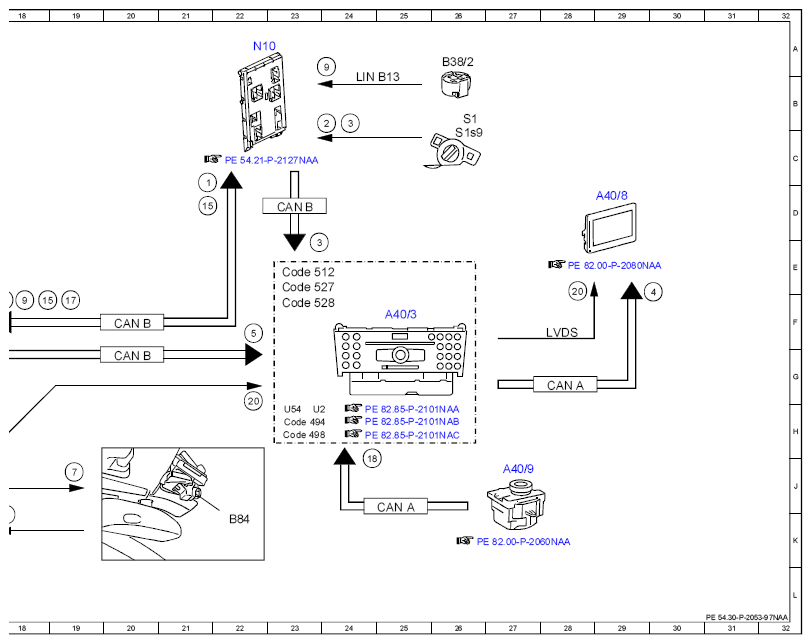

Electrical Function Schematic For Night View Assist - PE54.30-P-2053-97NAA
MODEL 166 up to model year 2016 with CODE 610 (Night View Assist)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 21D |
| 1 | Circuit 15, status | 16H |
| 10 | Wheel speed, signal | 12C |
| 10 | Wheel speed, signal | 15E |
| 10 | Wheel speed, signal | 12H |
| 11 | Vehicle speed, signal | 15H |
| 12 | Infrared light request | 2F |
| 12 | Infrared light request | 8F |
| 12 | Infrared light request | 4J |
| 13 | Infrared light, actuation | 3D |
| 13 | Infrared light, actuation | 7D |
| 14 | Fan motor, actuation | 8D |
| 14 | Fan motor, actuation | 1D |
| 15 | Infrared light, status | 15F |
| 15 | Infrared light, status | 21D |
| 15 | Infrared light, status | 18F |
| 15 | Infrared light, status | 17H |
| 15 | Infrared light, status | 5G |
| 15 | Infrared light, status | 4G |
| 16 | Light source detection status | 15K |
| 17 | Low beams, status | 17H |
| 17 | Low beams, status | 19F |
| 18 | Audio/COMAND controller, request | 24J |
| 19 | Instrument cluster message, request | 10H |
| 2 | Exterior lights switch, status | 24B |
| 20 | Night View Assist camera processed image data, signal | 28E |
| 20 | Night View Assist camera processed image data, signal | 22H |
| 21 | Multifunction display, actuation | 11F |
| 3 | Night View Assist button, status | 24B |
| 3 | Night View Assist button, status | 23E |
| 3 | Night View Assist button, status | 18F |
| 3 | Night View Assist button, status | 16H |
| 4 | Audio/COMAND display, actuation | 30F |
| 5 | Night View Assist, status | 16G |
| 5 | Night View Assist, status | 22F |
| 7 | Night View Assist camera, actuation | 19J |
| 8 | Night View Assist camera image data, signal | 18K |
| 9 | Rain/light sensor, status | 24A |
| 9 | Rain/light sensor, status | 17H |
| 9 | Rain/light sensor, status | 18F |
| A1 | Instrument cluster | 10G |
| A1p13 | Multifunction display | 11F |
| A40/11 | Multifunction camera | 3J |
| A40/3 | COMAND control unit | 25F |
| A40/8 | Audio/COMAND display | 29D |
| A40/9 | Audio/COMAND control panel | 27J |
| B38/2 | Rain/light sensor | 26A |
| B84 | Night View Assist camera | 22K |
| CAN A | Telematics CAN | 28G |
| CAN A | Telematics CAN | 25J |
| CAN B | Interior CAN | 20G |
| CAN B | Interior CAN | 20F |
| CAN B | Interior CAN | 23D |
| CAN E1 | Chassis CAN 1 | 12E |
| CAN E2 | Chassis CAN 2 | 9K |
| CAN E2 | Chassis CAN 2 | 9K |
| CAN E2 | Chassis CAN 2 | 12J |
| CAN E2 | Chassis CAN 2 | 16H |
| CAN E2 | Chassis CAN 2 | 13G |
| CAN E2 | Chassis CAN 2 | 12F |
| Code 494 | USA version | 23H |
| Code 498 | Japan version | 23H |
| Code 512 | COMAND APS with DVD changer | 23E |
| Code 527 | COMAND APS (with navigation) | 23E |
| Code 528 | COMAND with DVD changer | 23F |
| E1 | Left front lamp unit | 7B |
| E1e11 | Left infrared lamp | 7C |
| E1m4 | Left LED signaling lights actuation module fan motor | 8C |
| E1n7 | Actuation module for left front exterior lights LED | 8E |
| E2 | Right front lamp unit | 2B |
| E2e11 | Right infrared lamp | 2C |
| E2m4 | Right LED signaling lights actuation module fan motor | 1C |
| E2n7 | Actuation module for right front exterior lights LED | 2E |
| L6/1 | Left front axle rpm sensor | 17C |
| L6/2 | Right front axle rpm sensor | 17C |
| L6/3 | Left rear axle rpm sensor | 17D |
| L6/4 | Right rear axle rpm sensor | 17D |
| LIN B13 | Roof LIN | 24B |
| LIN G1 | Left headlamp LIN | 6F |
| LIN G2 | Right headlamp LIN | 3F |
| LVDS | Low voltage differential signal | 28F |
| N10 | SAM control unit | 22A |
| N101 | Night View Assist control unit | 16J |
| N30/4 | Electronic Stability Program control unit | 10B |
| N71/1 | Headlamp control unit | 5G |
| N73 | Electronic ignition switch control unit | 16E |
| S1 | Exterior lights switch | 26B |
| S1s9 | Night View Assist button | 26C |
| U2 | Valid for all except USA | 23H |
| U54 | Valid for all except Japan | 23H |
