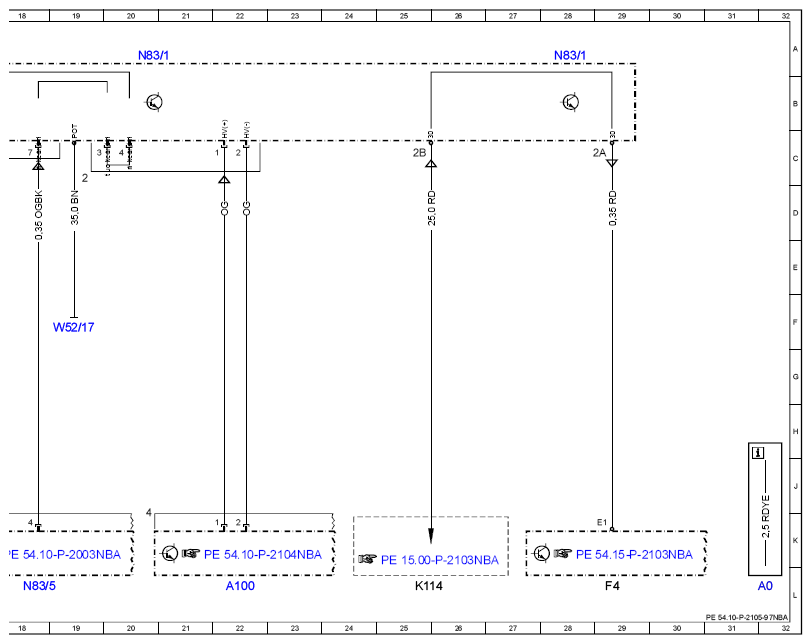

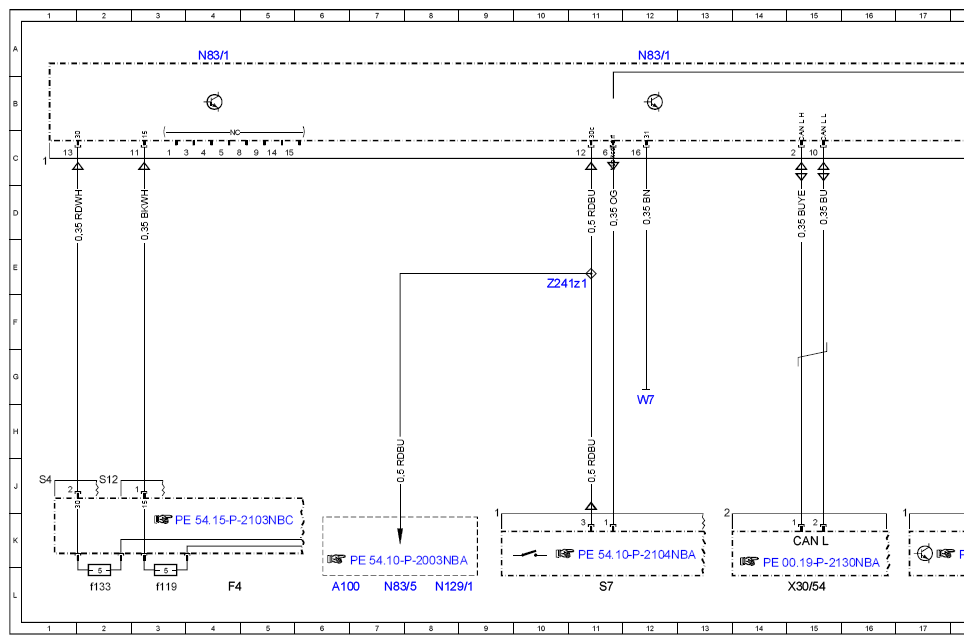

Wiring Diagram For DC/DC Converter Control Unit - PE54.10-P-2105-97NBA
MODEL 166.063 as of model year 2016 with CODE ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN)) Control unit N83/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| A100 | High-voltage battery module | 6L |
| A100 | High-voltage battery module | 22L |
| CAN L | Hybrid CAN | 15K |
| F4 | Rear fuse box | 4L |
| F4 | Rear fuse box | 29L |
| F4f119 | Fuse 119 | 3L |
| F4f133 | Fuse 133 | 2L |
| K114 | ECO start/stop function additional battery relay | 25L |
| N129/1 | Power electronics control unit | 8L |
| N83/1 | DC/DC converter control unit | 4A |
| N83/1 | DC/DC converter control unit | 12A |
| N83/1 | DC/DC converter control unit | 20A |
| N83/1 | DC/DC converter control unit | 28A |
| N83/5 | Charger | 7L |
| N83/5 | Charger | 18L |
| S7 | High-voltage disconnect device | 11L |
| W52/17 | DC/DC converter longitudinal member ground connection | 19F |
| W7 | Right rear center section ground point | 12H |
| X30/54 | Rear hybrid CAN (CAN L) potential distributor electrical connector | 15L |
| Z241z1 | Circuit 30c connector sleeve | 10E |
