Remove/Install Pyrofuse - AR54.10-P-1180GQ

MODEL 166, 292

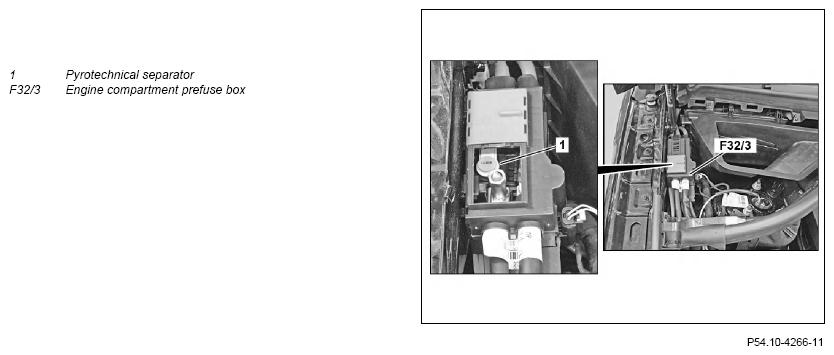

Illustration shows model 166.024

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Remove engine compartment prefuse box (F32/3)	Model 166 as of model year 2016 Model 292	AR54.15-P-1330GQC
1	Remove engine compartment prefuse box (F32/3)	Model 166 up to model year 2016 The pyrotechnical separator (1) is integrated in the engine compartment prefuse box (F32/3) and cannot be removed or replaced separately.	AR54.15-P-1330GQ
2	Install in the reverse order
3	Read out fault memory using the diagnostic system and delete
			AD00.00-P-2000-04A
