Remove/Install Backup Camera - AR54.65-P-0030GQ
MODEL 166 up to model year 2016 with CODE 218 (Rear view camera)
MODEL 166 up to model year 2016 with CODE 501 (360° camera)
Vehicle with code 218 (Reversing camera)
Vehicle with code 501 (360° camera)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Remove lower and center panel from liftgate | AR72.20-P-3520GQ | |

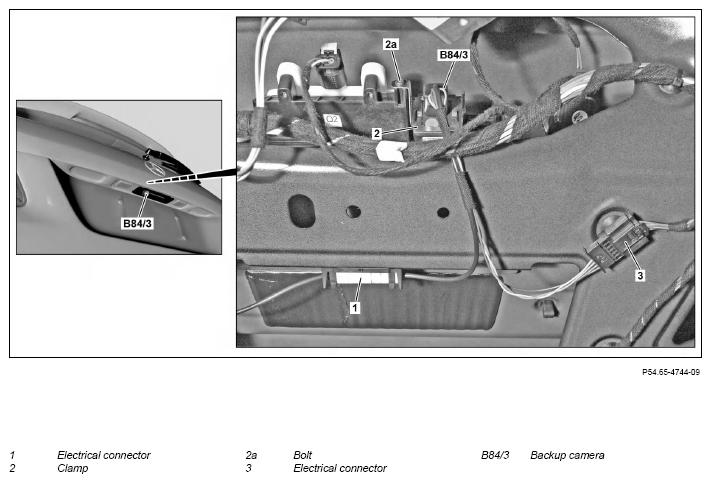

| 3 | Detach, release and disconnect electrical connector (1) from liftgate | ||
| 4 | Detach, release and disconnect electrical connector (3) of reversing camera (B84/3) from liftgate | Model 166 up to model year 2016 with code 218 (Rear view camera) | |
| 5 | Remove screw/bolt (2a) | Model 166.0 up to model year 2016 with code 218 (Rear view camera) | |
| 6 | Remove clamp (2) | ||
| 7.1 | Remove reversing camera (B84/3) | Model 166 up to model year 2016 with code 218 (Rear view camera) | |

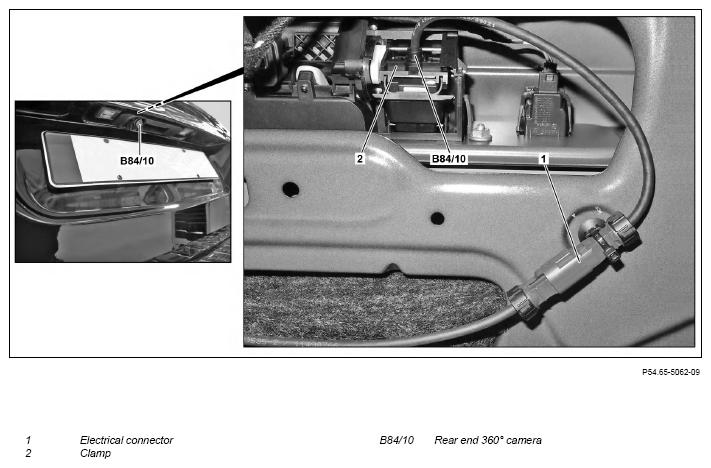

| 7.2 | Remove rear 360° camera (B84/10) | Model 166 up to model year 2016 with code 501 (360° camera) | |
| 8 | Install in the reverse order | ||
| 9.1 | Calibrate reversing camera (B84/3) using the diagnostic system and calibration device | Model 166 up to model year 2016 with code 218 (Rear view camera) | AD00.00-P-2000-04A |
| Fig 1 | |||
| 9.2 |
Calibrate camera for rear 360° camera (B84/10) using diagnostic system | Model 166 up to model year 2016 with code 501 (360° camera) | AD00.00-P-2000-04A |
