Remove And Install DC/AC Converter Control Unit - AR54.21-P-1600GQ
MODEL 166, 292 with CODE U80 (115 V socket)

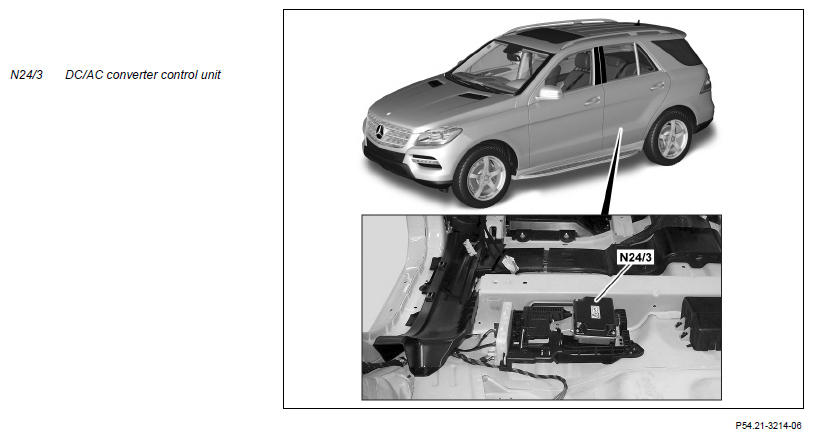

Shown on model 166.0

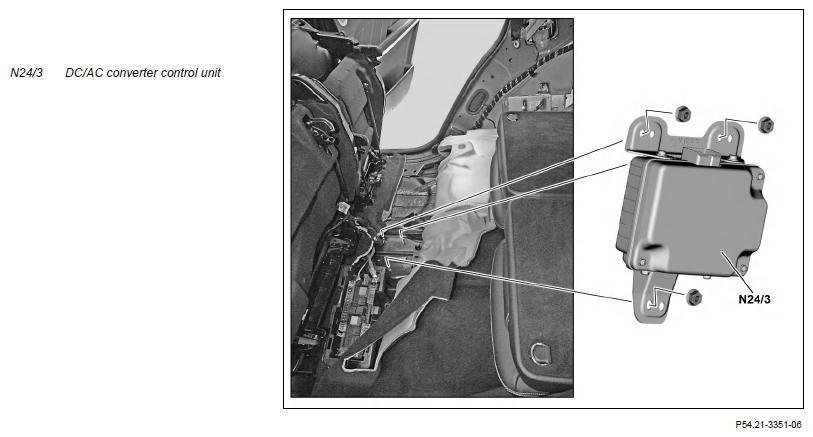

Shown on model 166.8
| Risk of death from touching live components with AC voltages over 30 V | Do not touch live parts. People who have electronic implants (e.g. cardiac pacemakers) must not perform any work on live components conducting alternating voltage greater than 30 V. | AS54.00-Z-0001-05A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and keep transmitter key at a location beyond transmitter range (at least 2 m) | ||
| 2 | Remove rear seat cushion | Model 292 with code U80 (115 V socket) |
AR91.12-P-1021GQC |
| Model 166.0 with code U80 (115 V socket) 60 % rear seat cushion |
AR91.12-P-1020GQ | ||
| 3 | Remove rear backrest | Model 292 with code U80 (115 V socket) |
AR91.12-P-1721GQC |
| Model 166.0 with code U80 (115 V socket)60% rear seat |
AR91.12-P-1620GQ | ||
| 4 | Remove left rear door sill molding | Model 166.0, 292 with code U80 (115 V socket) |
AR68.30-P-4100GQ |
| 5 | Lift floor covering | Model 292 with code U80 (115 V socket) |
AR68.20-P-4800GQC |
| Model 166.8 with code U80 (115 V socket) |
AR68.20-P-4800GQX | ||
| Model 166.0 with code U80 (115 V socket) |
AR68.20-P-4800GQ | ||
| 6 | Detach electrical connection from DC/AC converter control unit (N24/3) | ||
| 7.1 | Unscrew bolts | Model 166.0, 292 with code U80 (115 V socket) |
|
| 7.2 | Unscrew the nuts | Model 166.8 with code U80 (115 V socket) |
|
| 8 | Remove DC/AC converter control unit (N24/3) | ||
| 9 | Install in the reverse order |
