Bleed Brake System - AR42.10-P-0010CW

MODEL 166, 172, 204, 292

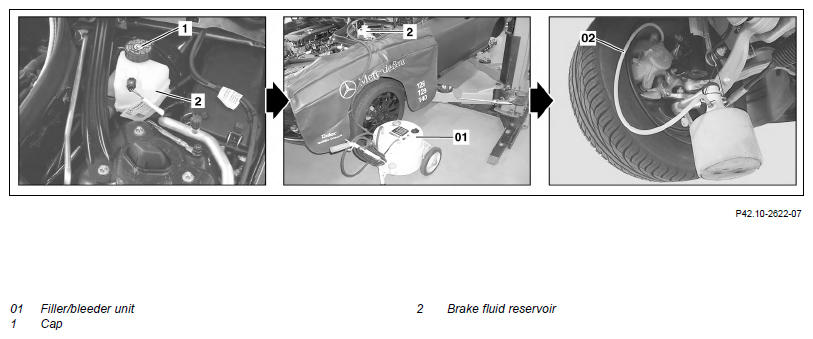

Shown on model 204

	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Remove/install
1	Open engine hood and raise to vertical position	Model 204.3	AR88.40-P-1000EW
		Model 166	AR88.40-P-1000GQ
		Model 172.4	AR88.40-P-1000V
2	Remove cover over left suspension strut tower	Model 166, 292
3	Clean area around cap (1) on brake fluid reservoir (2)
4	Unscrew cap (1) on brake fluid reservoir (2)
	Bleed brake system
5	Fill brake fluid reservoir (2) with new brake fluid up to Max. mark	Model 166, 292 Brake fluid	*BF42.10-P-1001-01G
		Model 172 Brake fluid	*BF42.10-P-1001-01A
		Model 204 Brake fluid	*BF42.10-P-1001-01J
6	Connect filling and bleeding unit (01) onto brake fluid reservoir (2) and switch on
000 588 01 82 00 Filling unit			WS25.00-P-0016B
7	Remove front complete wheels	Model 172.475	AP40.10-P-4050V
8	Carrying out bleeding operation	Model 166, 172, 292	AR42.10-P-0010-02EW
		Model 204	AR42.10-P-0010-02CW
		Model 166, 292 Bleed screw to brake caliper	*BA42.10-P-1001-12L
		Model 166, 292 Bleed screw at brake caliper	*BA42.10-P-1001-10L
		Model 172, 204 Bleed screw to brake caliper	*BA42.10-P-1002-12J
		Model 172, 204 Bleed screw at brake caliper	*BA42.10-P-1003-10J
		Model 172, 204 with transmission 711.6 Model 204 with transmission 716.6 Bleed screw to central clutch operator	*BA25.20-P-1001-01B
	Check
9	Check brake system for leaks	Model 166, 292	AR42.10-P-0100-01GZ
		Model 172, 204	AR42.10-P-0100-01V
10	Correct fluid level in brake fluid reservoir (2)	Model 204	AP42.10-P-4210EW
		Model 166, 292	AP42.10-P-4210GZ
		Model 172	AP42.10-P-4210V
11	Close engine hood	Model 204.3	AR88.40-P-1000EW
		Model 166	AR88.40-P-1000GQ
		Model 172.4	AR88.40-P-1000V
