Removing And Installing Roof Railing - AR77.40-P-5000GZ

MODEL 164, 166

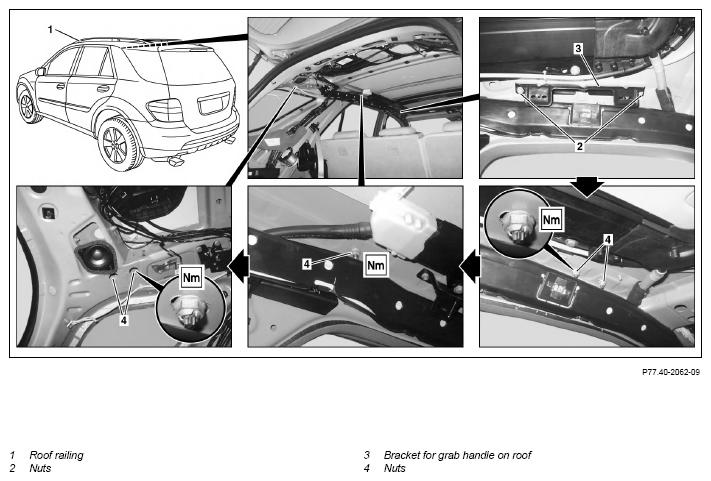

Shown on model 164.1

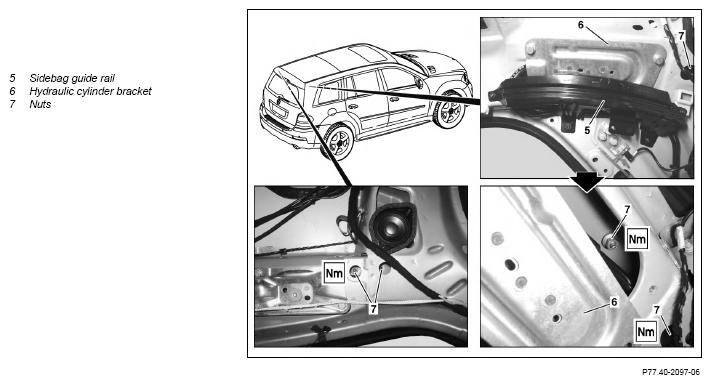

Shown on model 164.8 with CODE 890 (automatic rear-end door)

	Remove/install
1	Remove headliner	MODEL 166 with CODE Z05 (B5 armoring on special protection version)	AR68.30-P-4300GQS
		MODEL 164	AR68.30-P-4300GZ
		MODEL 166 without CODE Z05 (B5 armoring on special protection version)	AR68.30-P-4300GQ
2	Unscrew nuts (2) and remove bracket for grab handle on roof (3)	MODEL 164
3	Unscrew nuts (4)	MODEL 164.1 Unscrew five nuts (4). MODEL 164.8, 166.8 Unscrew six nuts (4). MODEL 166.0 Unscrew four nuts (4). Nut, roof railing	*BA77.40-P-1001-01C
4	Remove sidebag guide rail (5) on right	MODEL 164.8 with CODE 890 (EASY-PACK-tailgate)
5	Remove hydraulic cylinder bracket (6) on right	MODEL 164 with CODE 890 (EASY-PACK-tailgate) MODEL 164.1/8 with CODE 890 (EASY-PACK-tailgate)	*BA72.20-P-1001-02J
6	Unscrew nuts (7)	MODEL 164 MODEL 164.1/8	*BA77.40-P-1001-01C
7	Remove roof railing (1) from roof	Carefully remove roof railing (1) from roof. In order to prevent damage.
8	Install in the reverse order
