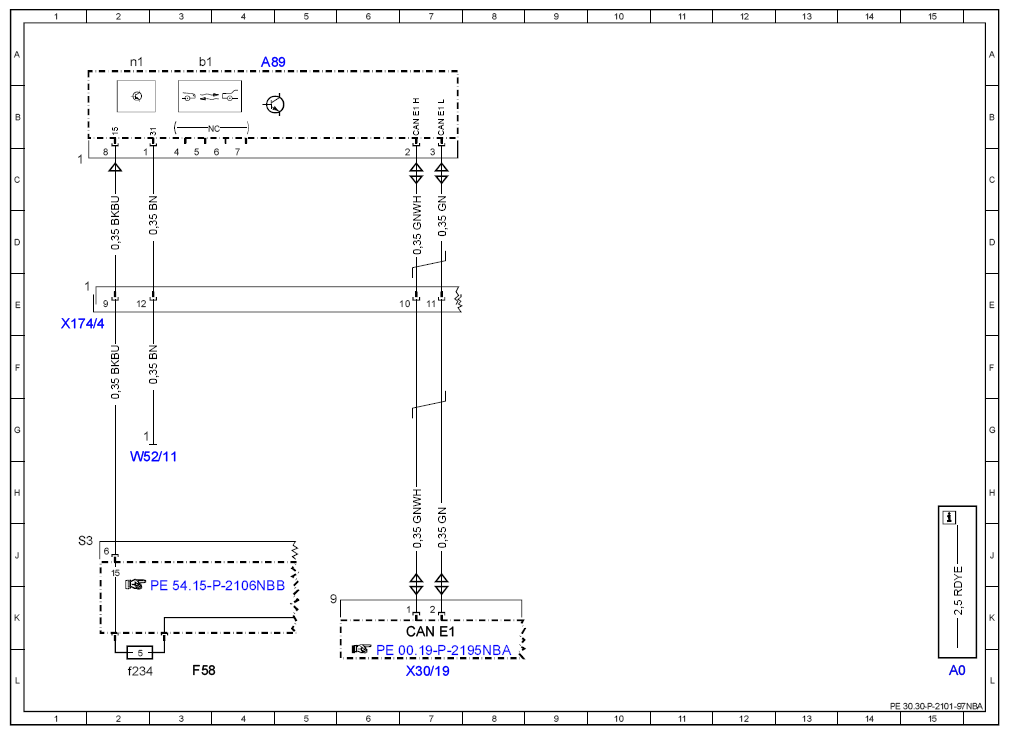

Wiring Diagram For Distronic (DTR) Control Unit - PE30.30-P-2101-97NBA
MODEL 166 as of model year 2016 with CODE 239 (DISTRONIC PLUS) Control unit A89
MODEL 292 with CODE 239 (DISTRONIC PLUS) Control unit A89
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A89 | DISTRONIC electric controller unit | 4A |
| A89b1 | DISTRONIC radar sensor | 3A |
| A89n1 | DISTRONIC control unit | 2A |
| CAN E1 | Chassis CAN 1 | 7K |
| F58 | Engine compartment fuse and relay module | 3L |
| F58f234 | Fuse 234 | 2L |
| W52/11 | Upper right front longitudinal member ground point | 2H |
| X174/4 | Engine compartment/vehicle front electrical connector | 1E |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 7L |
