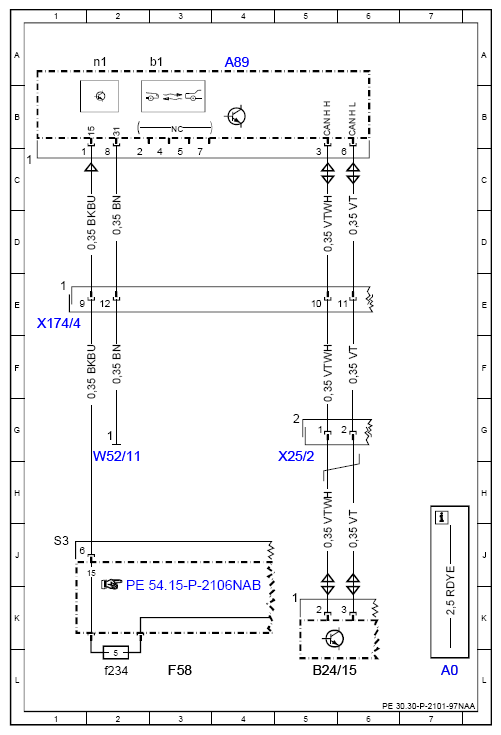

Wiring Diagram For Distronic (DTR) Control Unit - PE30.30-P-2101-97NAA
ENGINE 157.9, 276.8/9, 278.9, 642.8, 651.9 in MODEL 166 up to model year 2016 with CODE 233 (DISTRONIC PLUS) with CODE 237 (Active Blind Spot Assist) Control unit A89
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 7L |
| A89 | DISTRONIC electric controller unit | 4A |
| A89b1 | DISTRONIC radar sensor | 3A |
| A89n1 | DISTRONIC control unit | 2A |
| B24/15 | Yaw rate, lateral and longitudinal acceleration sensor | 5L |
| F58 | Engine compartment fuse and relay module | 3L |
| F58f234 | Fuse 234 | 2L |
| W52/11 | Upper right front longitudinal member ground point | 2H |
| X174/4 | Engine compartment/vehicle front electrical connector | 1E |
| X25/2 | Engine compartment/vehicle interior electrical connector | 5G |
